2017-2018 Mazda 3 2.5L SkyActiv-Drive Transmission: Problems, Identification, and Used Replacement

Is This the Right Transmission for Your Mazda 3?

The automatic transmission used in 2017-2018 Mazda 3 models equipped with the 2.5L SkyActiv-G engine is known as the FW6A-EL. This is a 6-speed, front-wheel drive (FWD) unit from Mazda's SkyActiv-Drive family. It is crucial to correctly identify this specific variant, as it will not interchange with transmissions from other Mazda models or even different Mazda 3 engine types.

How to Confirm Your Vehicle's Transmission

Before purchasing a replacement, you must verify that your vehicle requires this exact assembly. Follow these steps to confirm fitment:

• Check Your Engine: This transmission is only for models with the 2.5L engine. Look for an engine cover that says "SKYACTIV-G 2.5". You can also check the 8th digit of your Vehicle Identification Number (VIN); on many models with cylinder deactivation, this digit will be 'M'.
• Confirm Drivetrain: This is a Front-Wheel Drive (FWD) transmission. Ensure your vehicle is FWD by checking for the absence of a rear differential (a pumpkin-shaped gear housing between the rear wheels) and rear drive axles.
• Match Part Numbers: The most reliable method is to find the identifier tag on your original transmission. Look for a white paper barcode label on the top or side of the transmission case, near where it bolts to the engine. The part number should read FWJ7-03-000A or FWJ703000.

Common Failure Symptoms

A failing FW6A-EL transmission can exhibit several warning signs. While some issues can be resolved with software updates or minor repairs, others point to a need for complete replacement.

• Harsh or delayed shifting, especially into 3rd, 5th, or Reverse.
• A sudden chirp, whistle, or squeal during the 3-4 upshift.
🎬 Watch: What this 3-4 shift chirp sounds like
• Whining or grinding noises that change with engine speed.
• Unexpected engine stalling, which may be related to powertrain control software.
• Flashing "AT" light or Check Engine Light with transmission-related Diagnostic Trouble Codes (DTCs) like P0842, P0847, P0872, P0877, P0780, or P0882.

Diagnostic Flowchart

Known Problems, Recalls, and Technical Service Bulletins (TSBs)

Mazda has issued several service bulletins and a recall that address common issues with this transmission and its control systems. Always check with a dealer to see if these have been performed on your vehicle.

What Fails at Every Mileage Band

Under 60,000 Miles

Even low-mileage units can have hidden issues. The most common failure in this band is torque converter lock-up clutch wear causing a chirp or whistle noise on the 3-4 shift (TSB 05-005/23). This leads to ATF contamination with iron particles. Owners also report harsh shifting into 3rd, 5th, and reverse, or hesitation from a dead stop. Some early failures requiring complete transmission replacement have been reported at mileages as low as 10,000 to 40,000 miles.

• ✓Do during install (required): Replace the torque converter as a preventative measure if the original transmission exhibited any shudder, chirp, or shifting issues. Completely flush the transmission cooler lines or replace the case-mounted heat exchanger entirely to prevent contamination. Update the TCM and PCM software to the latest version.
• ✓Do during install (recommended): Replace the external axle seals and the torque converter (input shaft) seal.
• ✓Cheap insurance while the engine is out: Inspect the flexplate for any signs of cracking or damaged teeth.

60,000 - 100,000 Miles

Torque converter issues (shudder, chirping) continue to be a primary concern in this range, especially if not addressed earlier. Hard shifting and gear engagement problems, particularly with 3rd and 5th gears, can become more pronounced. Some owners report the onset of transmission problems just after the 60,000-mile powertrain warranty expires.

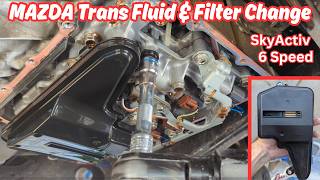

• ✓Do during install (required): Perform a transmission fluid and filter change using only genuine Mazda ATF-FZ. Strongly consider replacing the torque converter regardless of symptoms, as it is a common failure point.
• ✓Do during install (recommended): Replace all external seals (axle, selector shaft, output shaft) while the transmission is out.
• ✓Cheap insurance while the engine is out: Inspect and consider replacing powertrain mounts, as they can wear out and affect drivetrain smoothness.

100,000 - 150,000 Miles

At this stage, internal wear can lead to the need for a rebuild or replacement. Symptoms include hard shifting in specific gears that are not resolved by fluid changes. Electrical issues such as a P0882 code (TCM low voltage) can cause sudden jerking and warning lights. If the fluid has never been changed, performing a service now can be risky as the transmission may have adapted to operating with contaminated fluid.

• ✓Do during install (required): Assume the torque converter needs replacement; do not reuse the old one. Replace the case-mounted heat exchanger; do not attempt to flush it as contamination from the previous unit's failure is highly likely. Perform a full fluid exchange with Mazda ATF-FZ.
• ✓Do during install (recommended): Replace all external seals and the transmission filter.
• ✓Cheap insurance while the engine is out: Inspect and replace the serpentine belt and tensioner if they show signs of wear.

Over 150,000 Miles

This is the highest-risk mileage band. Failures are often preceded by long-term issues like hard shifting or slipping that were not addressed earlier. However, many owners report high mileage with no major issues, suggesting longevity is highly dependent on maintenance. The mechanical components, such as the cast iron oil pump, are considered robust.

• ✓Do during install (required): A complete reseal is mandatory. Mandatory replacement of the torque converter, transmission filter, and case-mounted cooler.
• ✓Do during install (recommended): Thoroughly inspect all wiring harnesses and connectors for brittleness or damage.
• ✓Cheap insurance while the engine is out: Replace the rear main seal of the engine, powertrain mounts, and CV axle seals.

Real Owner Experiences

The following table highlights real-world failures, symptoms, and repair costs reported by Mazda owners with this transmission family.

Replacement Cost Guide

The cost of replacing a Mazda 3 transmission can vary significantly based on the type of part chosen and local labor rates. The estimates below are for the transmission assembly itself and do not include fluids or other required consumables.

Repair or Replace?

Deciding whether to repair your existing transmission or replace it entirely depends on the specific failure mode and the extent of internal damage.

• Valve Body Issues: If you have oil pressure switch DTCs or harsh shifting without metal contamination, a repair makes sense. A remanufactured valve body costs between $250 and $400, with total repair costs ranging from $300 to $600.
• Torque Converter Lock-Up Clutch Wear: If caught early (before significant iron powder has circulated), replacing the torque converter and flushing the system costs between $800 and $2,500.
• When Replacement is Smarter: If internal mechanical failure is confirmed (such as case center bearing wear, gear/clutch pack damage, or heavy metal shavings in the fluid), the cost and complexity of a full rebuild often exceed the price of a lower-mileage used unit. Used units typically run $500 to $1,500, making replacement the more economical and reliable option.

Questions to Ask Your Installer

• Have you confirmed the failure is internal to the transmission and not an external sensor or a misdiagnosed wheel bearing?
• Will you be installing a new or thoroughly flushed case-mounted fluid cooler to prevent contamination?
• Do you have the Mazda-specific scan tool (IDS/MGSS) to perform the mandatory TCM adaptive relearn procedure after installation?
• Will you be using the correct Mazda Genuine ATF-FZ (blue) fluid?
• What is the mileage and warranty on the used transmission you are sourcing?
• Does your quote include the cost of new axle seals, torque converter seal, and RTV sealant?
• How will you ensure the torque converter is fully seated before mating the transmission to the engine?

Freight, Delivery, and Pre-Purchase Verification

When ordering a used FW6A-EL transmission, it is important to understand how it will arrive. This assembly weighs approximately 185 lbs and measures roughly 32" x 24" x 24" before crating. Because of its size and weight, it ships as LTL (Less Than Truckload) freight on a wooden pallet—it will NOT arrive as a standard parcel.

Delivery requires a loading dock or a truck equipped with a liftgate. Always inspect the transmission carefully before signing the delivery receipt. Look for any damage to the case, oil pan, or electrical connectors that may have occurred during transit.

Installation and Programming Essentials

Installing a used FW6A-EL is an advanced job that requires special tools and procedures. You will need an engine support bar or hoist, a heavy-duty transmission jack or subframe adapter, a CV axle puller/slide hammer, and a professional-grade OBD-II diagnostic scan tool (Mazda IDS/MGSS/J2534). Failure to follow these steps can lead to immediate damage to the replacement unit.

What's Included in a Used Assembly?

A used transmission assembly typically includes the core components but requires transferring parts from your old unit. Expect it to include:

• The transmission case and bellhousing
• All internal parts (gears, clutches, shafts)
• The internal valve body and integrated TCM
• The oil pan and torque converter

You or your mechanic will need to transfer external parts like sensors, wiring harnesses, shifter linkage, and mounting brackets from the original transmission.

Required Programming and Calibration

• Adaptive Relearn: After installation, an "Initial Learning Procedure" must be performed using a professional-grade scan tool. This procedure allows the TCM to learn the specific hydraulic and mechanical characteristics of the replacement unit.
• Software Updates: To address TSBs for issues like shift shock, the TCM may need to be reprogrammed with the latest VIN-specific software from Mazda. This also requires a dealer-level tool.

Frequently Asked Questions
