2023-2024 Mazda CX-50 2.5L NA AWD SkyActiv-Drive Transmission: Problems, Identification, and Used Replacement

Part Identification: Confirming the Correct Transmission

This guide covers the 6-speed automatic transmission found in the 2023–2024 Mazda CX-50 equipped with the naturally aspirated (non-turbo) 2.5L engine and All-Wheel Drive (AWD). This specific transmission is part of the SkyActiv-Drive family and is crucial for the vehicle's performance.

Verifying you have this exact model is the first step before purchasing a replacement. Here’s how to confirm:

• Engine: Your CX-50 must have the 2.5L naturally aspirated engine. The easiest way to check is by looking at the engine cover; turbo models will be explicitly labeled as such.
• Drivetrain: This transmission is only for All-Wheel Drive (AWD) models.
• Model Years: This unit fits 2023 and 2024 models. Check the sticker on the driver's side door jamb for the production date.

The key identifier is the transmission code. You can often find the barcode label on top of the transmission case, which may be visible from under the hood near the starter motor after removing the factory airbox.

Common Failure Symptoms and Diagnosis

Before condemning the transmission, it's important to recognize the specific symptoms associated with its failure. The SkyActiv-Drive transmission is generally reliable, but certain issues can point to a problem.

• Low-Speed Jerking or Shock: A noticeable jolt or shock when accelerating gently from a stop, or a lunge when almost stopping and then accelerating again. This can be caused by a software issue that Mazda has addressed.
• Harsh or Delayed Shifting: Roughness when the transmission changes gears, or a noticeable delay after shifting from Park to Drive or Reverse. This can be a sign of incorrect fluid, internal wear, or a failing torque converter failing to unlock at stops.
• Fluid Leaks: Puddles of blue fluid under the car are a clear warning. For this transmission, look for leaks around the axle seals or a cracked transmission housing.

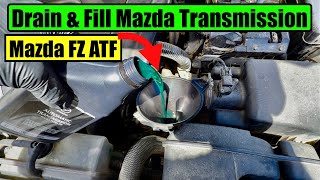

🎬 Watch: Complete Mazda FW6AEL / FW6AXEL transmission fluid and filter replacement
• Whining or Growling Noises: Unusual noises that change with engine speed could indicate internal damage. However, it's important to rule out other sources first.
• Catastrophic Failure: In rare cases, some owners have reported complete transmission failure at very low mileage (under 10,000 miles) due to isolated manufacturing defects, resulting in metal pieces inside the case.

Diagnostic Flowchart

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

Mazda has issued several TSBs related to this transmission family. A TSB is a document from the manufacturer that provides repair information for common, non-safety-related issues. As of this writing, there are no open safety recalls for this specific transmission assembly, but the following TSBs are highly relevant.

• TSB 05-001-23 / NHTSA ID 10237198: Addresses a 'shock' or jerking feeling at low speeds when starting from a stop. This applies to some 2023 models and is caused by the transmission control module (TCM) software. The fix is a software update performed by a dealer to recalibrate the lock-up operation and perform an adaptive relearn.

Replacement Cost Estimates

The cost of replacing a transmission can vary widely based on the type of part used and local labor rates. This is a major repair that requires removing the subframe and significant labor (estimated at 6 to 9 hours).

What's Included in a Used Assembly?

When buying a used transmission, it's important to know what you're getting. Based on Automotive Recyclers Association (ARA) standards, here’s what is typically included and what is not.

What It Includes:

• Transmission case and all internally lubricated parts
• Torque converter (a fluid coupling that connects the engine to the transmission)
• Valve body and internal solenoids
• Transmission oil pan
• Extension/tail housing and mounting pad for the AWD transfer unit

What It Does NOT Include:

• External electronic sensors and external wiring harness
• Transmission Control Module (TCM)
• Shifter cables and linkage
• Transmission fluid cooler and lines
• Engine flexplate (the part the torque converter bolts to)

What Fails at Every Mileage Band

Under 60,000 Miles

Units in this range are generally very healthy, but early-life failures do happen. Known issues include catastrophic internal failure due to manufacturing defects, jerking or slipping at low speeds (often resolved by TSB 05-001-23), fluid leaks from axle seals, and torque converter shudder.

• ✓Do during install (required): Completely flush the transmission cooler and lines to remove any debris from the previous failure.
• ✓Do during install (required): Perform the TCM software update to the latest calibration and execute the adaptive relearn procedure with a Mazda-compatible scan tool.
• ✓Do during install (required): Verify the torque converter is fully seated (three distinct clicks) before installation to prevent damage to the new unit's oil pump.
• ✓Do during install (required): Use only new, genuine Mazda ATF-FZ (blue) fluid. Do not reuse old fluid or mix with other types.
• ✓Cheap insurance while the engine is out: Replace external seals such as axle seals and the torque converter input shaft seal.

60,000 - 100,000 Miles

At this mileage, you may see an increased likelihood of shift quality degradation (harshness, hesitation) if the fluid has not been serviced. Torque converter lock-up issues may become more apparent, and fluid leaks from aging seals (axle seals, pan gasket) are common.

• ✓Do during install (required): Mandatory flush of the transmission cooler and lines.
• ✓Do during install (required): Mandatory TCM adaptive relearn procedure after installation.
• ✓Do during install (recommended): Perform a transmission fluid and filter change, even if the seller claims it was recently done. Use only Mazda ATF-FZ.
• ✓Do during install (recommended): Inspect and clean the splines for the AWD transfer unit and apply fresh high-temperature grease.
• ✓Cheap insurance while the engine is out: Replace all external seals, including axle seals, torque converter seal, and the oil pan gasket.

100,000 - 150,000 Miles

Because the CX-50 is a newer model, data in this range is limited. However, based on the broader SkyActiv-Drive family, issues could include slipping clutches, solenoid failure, torque converter failure, and wear of the case center bearing (especially with aggressive driving on cold fluid) if fluid service has been neglected.

• ✓Do during install (required): Complete flush of the cooler and lines is critical, as debris is more likely in a higher-mileage unit.
• ✓Do during install (required): Perform all required electronic programming, including TCM configuration and adaptive relearns.
• ✓Do during install (recommended): Assume the unit requires a full service. Replace the transmission fluid, filter, and all external seals without question.
• ✓Cheap insurance while the engine is out: Thoroughly inspect the included torque converter. If there is any doubt about its condition, consider replacing it with a new or remanufactured unit.

Over 150,000 Miles

A unit in this mileage range is a high-risk purchase. This is beyond the typical "lifetime fluid" expectation. Slipping, delayed engagement, and potential solenoid or valve body failures are highly probable.

• ✓Do during install (required): A complete cooler and line flush is absolutely essential to protect the investment.
• ✓Do during install (required): Full programming and adaptive learning procedures are required.
• ✓Do during install (recommended): Budget for a potential immediate rebuild or replacement of wear items. Carefully inspect the valve body and solenoids for any signs of sludge or debris.
• ✓Cheap insurance while the engine is out: Mandatory replacement of the torque converter, all seals, fluid, and filter.

Real Owner Experiences

Here is a look at what actual owners have experienced with this transmission family, including failures and maintenance costs.

Repair or Replace?

Deciding whether to repair your current transmission or replace it entirely depends on the exact failure mode.

• When Repair Makes Sense: If you are experiencing low-speed shift shock or jerking (TSB 05-001-23), this is a software calibration issue. A software update typically costs $150-$300 (1-2 hours of labor) if out of warranty. If you have fluid leaks from the axle seals or pan gasket, repairing these is highly cost-effective ($150 - $700). Finally, if a diagnostic scan isolates a fault to a specific shift solenoid ($400 - $900 repair) and there is no metal in the fluid, a targeted repair is viable.
• When Replacement is Smarter: Replacement is necessary in cases of catastrophic internal failure, such as when metal shavings are found in the transmission fluid or pan, indicating gear or bearing failure. If the cost of diagnosing and attempting multiple smaller repairs approaches the price of a used unit ($2,000 - $3,100), replacement becomes the more sensible option.

Installation: Critical Steps & Required Parts

Installing this transmission is an advanced job (Advanced / Expert DIY difficulty). Certain steps are mandatory to ensure the replacement unit is not damaged.

Special Tools Required

• Engine support bridge/bar
• Subframe jack/adapter
• Transmission jack
• Transmission fluid fill adapter and pump
• Mazda-compatible diagnostic scan tool (M-MDS)

Required Programming

This is not a simple plug-and-play swap. The Transmission Control Module (TCM), which is the computer for the transmission, must be programmed. External wiring harnesses are not included and must be transferred from the original unit. Service replacement transaxles may ship with a blank TCM requiring configuration, or the original TCM must be swapped over. A replacement TCM will require dealer configuration using the Mazda Modular Diagnostic System (M-MDS) to align with the vehicle's VIN. After installation, clearing the old adaptive memory and running the TCM Initial Learning procedure must be performed with a scan tool to ensure smooth shifting.

Essential Replacement Parts & Fluids

When replacing the transmission, it is best practice to replace several related consumable parts at the same time.

• Transmission Fluid: ONLY use Mazda Genuine ATF-FZ (Part No. 0000-FZ-113E01). This is a unique blue fluid. Using standard red ATF will cause problems.
• Seals: Always replace the axle half-shaft seals and the torque converter input shaft seal (front pump seal) to prevent leaks.
• Filter and Gasket: A new transmission oil filter (Mazda Part # FZ01-21-500) and oil pan gasket should be installed.
• Other Consumables: High-temperature spline grease and transmission cooler line flush solvent.

Key Installation Steps (Gotchas)

Warning: Torque Converter Seating. The torque converter must be fully seated into the transmission's oil pump. You should feel it drop into place in three distinct steps or 'clunks'. Failure to do this before bolting the transmission to the engine will crack the internal oil pump gear, destroying the new transmission.

• Flush the Cooler: The transmission fluid cooler and its lines must be completely flushed with a proper solvent. If the old transmission failed, it likely sent metal debris into the cooler. If not flushed, this debris will be sent directly into the replacement transmission, causing it to fail immediately.
• Check Fluid Level Correctly: The fluid level must be checked with the vehicle perfectly level on a lift, engine idling in Park, and the fluid at a specific temperature (122°F - 140°F). This is checked via the short dipstick plug secured by a 10mm bolt on the front of the case.
• Alignment Pins: Ensure alignment dowel pins are present on the engine block and clean.

Questions to Ask Your Installer

Before handing over your vehicle, ask your mechanic these questions to ensure they understand the specific requirements of the SkyActiv-Drive transmission:

• Have you confirmed this is a non-turbo (FW6AX-EL) transmission?
• Will you be performing a complete flush of the transmission cooler and lines before installing the replacement?
• How do you ensure the torque converter is fully seated before installation?
• Do you have the Mazda-specific scan tool (M-MDS) to perform the TCM Initial Learning procedure and adaptive relearn after installation?
• What brand and type of transmission fluid will you be using? (Must be Mazda ATF-FZ)
• What is the mileage and warranty on the used transmission you are sourcing?
• Does the quoted price include all required seals, gaskets, and fluid?

Freight & Delivery Reality

If you are ordering a used transmission online, be prepared for freight delivery. This assembly is NOT a parcel. Verified shipping data shows this unit weighs approximately 235 lbs and measures roughly 30" x 26" x 28" before crating. It will ship as LTL (Less-Than-Truckload) freight on a wooden pallet.

You must ensure the delivery location can accommodate a freight truck. If delivering to a residential address or a shop without a loading dock, you must request a liftgate service. Always inspect the transmission carefully for any physical damage to the case, pan, or sensors before signing the delivery receipt.

Frequently Asked Questions (FAQ)
