2018-2021 Mazda CX-5 2.5L SkyActiv-Drive Transmission: Problems, Identification, and Used Replacement

Is This the Right Transmission for Your CX-5?

This article covers the six-speed automatic transmission assembly, part of the SkyActiv-Drive family, found in 2018-2021 Mazda CX-5s equipped with the 2.5L naturally aspirated (non-turbo) engine and All-Wheel Drive (AWD). This specific unit is often identified by the codes FW6AX-EL or FZ01.

Vehicle Fitment Checklist

How to Confirm Your Vehicle's Build

Before purchasing a replacement, you must verify your vehicle's exact configuration. Using the wrong transmission will lead to fitment and electronic compatibility issues.

1. Check Your VIN: The 8th digit of your Vehicle Identification Number (VIN) identifies the engine. For this transmission, the 8th digit should be an 'L' or 'M'. You can find the VIN on your driver's side door jamb or at the base of the windshield.
2. Confirm AWD: Look under the rear of your vehicle. If you see a rear differential and axles running to the back wheels, you have an AWD model.
3. Find the Transmission Code: Look for a white barcoded label on the top or side of the transmission case, or a metal stamp on the casting. It should be marked with "FW6AX-EL".

Common Failure Symptoms

While some issues can be fixed with software updates, a failing transmission assembly often requires full replacement. Look for the following symptoms:

• Harsh, jerky, or banging shifts, especially when cold.
• A whining or grinding noise that changes with engine RPM.
• A chirp or whistle noise during shifts.
• A feeling of surging or pulsing at low speeds.
• Clunking or jolting sounds when shifting from Reverse to Drive.
• Flashing "AT" light or Check Engine Light on the dashboard (such as a P0847 code for Transmission Fluid Pressure Sensor/Switch B Circuit Low).
• Complete loss of gear engagement or the vehicle failing to move.

Diagnostic Flowchart

Known Problems, Recalls, and Service Bulletins

Repair or Replace?

Deciding whether to repair your current transmission or replace it entirely depends on the specific failure mode and the extent of internal damage.

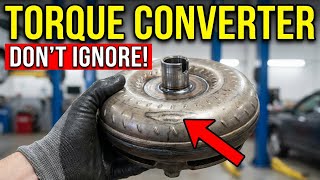

• When Repair Makes Sense: If you experience Jerky Shifts (TSB 05-002/20 or 05-006/24), a simple software reflash typically costs $150 - $300 out of pocket and solves the issue. If diagnostics point to Stuck Oil Pressure Switches (TSB 05-003/20), replacing them costs $300 - $600 and is highly cost-effective. A Torque Converter Chirp (TSB 05-004/23) can be repaired for $600 - $3,500 (one dealer quoted $3,465) if caught early before metal debris destroys the rest of the transmission.
• When Replacement is Smarter: Replacement is the best path for the Whining Noise from a Worn Bearing (TSB 05-002/19), as dealer practice often dictates full replacement over a complex internal rebuild. If a torque converter failure was ignored and metal debris has circulated, a used or remanufactured unit is much safer and often cheaper than a full teardown and rebuild.

Questions to Ask Your Installer

• Have you confirmed this is not a software issue that can be fixed with a TCM/PCM reflash per the known TSBs?
• Will you be flushing the transmission cooler and lines completely before installing the replacement unit?
• What specific brand and type of automatic transmission fluid will you be using? (It must be Mazda ATF-FZ).
• How do you verify the torque converter is fully seated before mating the transmission to the engine?
• What is the process for the TCM adaptive relearn procedure after installation?
• Does the quoted price include all necessary seals, gaskets, and O-rings?

Replacement Cost Estimates

The cost to replace a transmission varies by the type of part used and local labor rates. The estimates below do not include taxes or potential additional parts like cooler lines or mounts.

What Fails at Every Mileage Band

Under 60,000 Miles

Catastrophic failure is uncommon here, but early replacements happen under warranty due to harsh shifting, clunking from Reverse to Drive, or internal fluid leaks. A P0847 code (Transmission Fluid Pressure Sensor/Switch B Circuit Low) accompanied by burned fluid has been noted in low-mileage units.

• Do during install (required): Flush the transmission cooler and lines to remove any debris from the previous unit's failure.
• Do during install (recommended): Perform a drain and fill of the fluid in the separate transfer case and rear differential. Verify the TCM has the latest software updates to prevent known shift quality issues.
• Cheap insurance while the engine is out: Inspect the flexplate for any signs of stress or cracking before bolting up the new unit.

60,000 - 100,000 Miles

Failures increase just outside the 60,000-mile powertrain warranty. Torque converter issues (chirping or lurching) and whining noises from worn bearings are frequent complaints leading to replacement.

• Do during install (required): Replace the internal transmission filter/strainer and O-rings. Replace all external seals, including axle seals and the torque converter input shaft seal. Flush the transmission cooler and lines with a dedicated solvent.
• Do during install (recommended): Perform a drain and fill on the transfer case and rear differential fluids.
• Cheap insurance while the engine is out: If the replacement unit has over 80,000 miles, replacing the torque converter with a brand new unit during the swap is highly recommended, as it is a known failure point.

100,000 - 150,000 Miles

Failures at this mileage are heavily tied to fluid breakdown. Symptoms include severe dark or black fluid, harsh shifting, slipping, and jolting during downshifts. Units that have never had a fluid service are at high risk of internal clutch pack wear.

• Do during install (required): Replace the internal transmission filter/strainer, all external seals (axle, TC input), and use fresh Mazda Grey RTV for the pan. Replace the torque converter. Thoroughly flush the cooler and lines to prevent contamination.
• Do during install (recommended): Replace the external cooler entirely if the previous transmission suffered a catastrophic metal-generating failure.
• Cheap insurance while the engine is out: Replace the engine and transmission mounts, as they are likely worn and easily accessible during the swap.

Over 150,000 Miles

With proper maintenance (fluid drain and fills every 30,000 to 60,000 miles), these transmissions can last 200,000 to 250,000 miles. However, buying a used unit with this mileage carries significant risk of cumulative wear and tear.

• Do during install (required): Replace the torque converter, all seals, and the internal filter. Aggressively flush the cooler and lines.
• Do during install (recommended): Consider a remanufactured unit instead if your budget allows, as high-mileage used units have a shorter remaining lifespan.
• Cheap insurance while the engine is out: Replace the transfer case companion flange O-ring to prevent fluid mixing between the transmission and the PTU.

Real Owner Experiences

The table below highlights real-world transmission issues reported by Mazda CX-5 owners, detailing what failed and the associated costs.

Installation and Programming: What to Know

Installing this transmission is a complex job best left to a professional mechanic. Several steps are critical for a successful and long-lasting repair.

Required Tools and Consumables

To complete this job correctly, your shop will need specific tools and fluids:

Key Installation Steps & "Gotchas"

1. Torque Converter Seating:

   Warning: The torque converter must be fully seated into the transmission's front pump. The installer should feel three distinct "clicks" or drops as it engages. Failure to do this will crack the oil pump gear upon bolting to the engine.

2. AWD Transfer Case (PTU) Alignment: Ensure splines are perfectly aligned and replace the input shaft seal and companion flange O-ring to prevent fluid mixing between the transmission and the PTU.
3. Flush Cooler and Lines: It is mandatory to flush the external transmission cooler and lines with a proper solvent. Skipping this step will introduce metal debris from the old, failed unit into your new transmission, causing it to fail quickly.
4. Use Correct Fluid: This transmission requires a specific fluid, Mazda Genuine ATF-FZ (a blue-colored fluid). Using a generic multi-vehicle ATF will cause shifting problems and damage.
5. Sealant Cure Time: The transmission oil pan is sealed with RTV sealant. This sealant must cure for a full 24 hours before filling with fluid to prevent blowouts and leaks.

Post-Installation Programming

After installation, the Transmission Control Module (TCM) must perform an "initial learning" or "TCM Adaptive Relearn" procedure. This process calibrates the new transmission's internal components to the vehicle's computer. Skipping this step will result in harsh shift shock and poor performance. While some sources suggest a manual in-vehicle "Konami Code" procedure may bypass the scan tool requirement, using a professional OBD2 scan tool with Mazda-specific functions is the recommended and most reliable method.

Note: The external wiring harness is not included with a replacement unit and must be transferred from your original transmission.

Shipping and Freight Reality

If you are ordering a used transmission online, it will not arrive in a standard cardboard box via regular mail. This assembly weighs approximately 245 lbs and measures roughly 36" x 24" x 24" before crating. It ships as LTL (Less Than Truckload) freight on a wooden pallet.

Because of its size and weight, delivery requires a truck equipped with a liftgate if you are shipping to a residential address. Always perform a pre-purchase verification interview with the seller to confirm the VIN and casting numbers.
