2016-2018 Kia Optima A6MF1/A6MF2 Transmission: Problems, Identification, and Used Replacement
Learn how to identify the correct Korea-built 6-speed automatic, what causes harsh shifting and solenoid failures, and when to swap in a used OEM replacement unit.
- Verify your Optima is Korea-built by checking that the VIN starts with 'K', as this transmission will not fit US-built models with a VIN starting with '5'.
- After installation, a TCM adaptive value reset and relearn procedure using a dealer-level scan tool is mandatory to prevent immediate harsh shifting and damage to the replacement unit.
- Always flush the transmission cooler lines and replace the torque converter and external seals when installing a used unit to prevent contamination and future failures.
- Before replacing the entire transmission, investigate common, cheaper-to-fix issues like a faulty inhibitor switch (no-start), fluid temperature sensor, or specific solenoids (DTC P0741).
- Use only Hyundai/Kia genuine ATF SP-IV fluid; using incorrect or universal fluid will cause shifting problems and internal damage.
How to Identify the Correct Transmission
Sourcing the correct used transmission for your 2016-2018 Optima is more complex than just matching the year. Fitment depends entirely on where the vehicle was manufactured. Failure to verify this is the most common and costly mistake buyers make.
Warning: This transmission assembly is only for Korea-built Kia Optimas. It will NOT fit or function in a US-built Optima due to different wiring harnesses, case mounting points, and shifter cable alignments.
Pre-Purchase Vehicle Verification
Before purchasing a replacement, check these three items on your vehicle:
- VIN Check: The first digit of your Vehicle Identification Number (VIN) must be a 'K', indicating it was built in South Korea. If it is a '5', your car was built in the US and this transmission will not fit.
- Engine Code: The 8th digit of your VIN should be a '3', which designates the 2.4L Theta II engine.
- Drivetrain: Confirm your vehicle is Front-Wheel Drive (FWD).
Identifying Marks on the Transmission
You can also confirm the part by finding markings on the transmission case itself. Look for a barcode sticker or an etched code on the top of the case, near where it bolts to the engine. Key identifiers include:
- Part Number: 45000-3BYG0 (Other compatible part numbers include 450003BYE0, 45000-3BYE0R, and 45000-3BYG0RCA for remanufactured units).
- Transmission Codes: Look for a stamped or etched code beginning with "EA" or "FA".
Diagnostic Flowchart
Common Failure Symptoms and Known Issues
Symptoms of a failing A6MF-family transmission can range from minor annoyances to complete failure. If you experience the following, a transmission issue is likely.
- Harsh or erratic shifting
- Delayed engagement when shifting from Park to Drive or Reverse
- Shuddering or vibration, especially at low speeds
- Illuminated Malfunction Indicator Lamp (Check Engine Light)
- Intermittent failure to start
Technical Service Bulletins (TSBs) and Recalls
Kia has issued several Technical Service Bulletins (TSBs)—which are repair instructions for dealers—related to this transmission. No major recalls have been issued for the transmission assembly itself, but some address related components.
| TSB / Issue | Models Affected | Description & Recommended Fix |
|---|---|---|
| TSB SA317/A/B/C | 2016-2017 | Inhibitor Switch Failure: A faulty inhibitor switch (neutral safety switch) can cause a no-start condition, erratic shifting, and warning lights. The fix is to replace the switch. It's wise to swap your original switch onto the replacement transmission. |
| TSB TRA 051 | 2016-2020 | Solenoid Failures (DTC P0741): Addresses torque converter clutch circuit code P0741 (and other solenoid codes). The fix involves replacing the specific solenoid, not the entire transmission. |
| TSB 043 | 2016-2020 | Fluid Temperature Sensor Failure (DTC P0711, P0712, P0713): A faulty sensor can cause harsh shifts. The sensor is on the internal valve body harness and can be replaced without removing the transmission. |
| Plastic Side Cover Warping | 2016-2020 | The front plastic valve body cover can warp over time. Inspect for slow fluid leaks and replace the cover if warped. |
| Outdated TCM Software | 2016-2017 | Jerking or lurching can sometimes be caused by outdated software. A dealer should check for and apply any available updates after installation. |
Repair or Replace?
Before buying a complete replacement transmission, determine if your current unit can be saved. Some failures are external or isolated to the valve body.
When Repair Makes Sense
| Failure | Typical Repair Cost (USD) | Notes |
|---|---|---|
| Inhibitor Switch Failure | $150 - $350 | A common external part. The part itself is $25-$60, with labor from $95-$140. Suspect this first for no-start issues. |
| Solenoid Valve Failure (e.g., DTC P0741) | $400 - $900 | If fluid is clean, replacing the valve body/solenoids is cheaper than a full replacement. Diagnostic cost is ~$170; a valve body is ~$350 plus labor. |
| Fluid Temperature Sensor Failure | $200 - $450 | The sensor is part of the internal wiring harness. If the transmission is otherwise healthy, replacing the harness/sensor is a viable repair. |
When Replacement is Smarter
Replacement is the recommended path when there is evidence of catastrophic internal mechanical failure. Key indicators include finding significant metal shavings or chunks in the transmission fluid or pan, loud grinding or whining noises that change with engine RPM, or multiple simultaneous error codes that point to widespread system failure. In these cases, a simple repair is unlikely to last, as debris from the initial failure has likely contaminated the entire unit, including the torque converter and cooler.
Replacement Cost Estimates
The cost to replace a transmission varies by the type of replacement unit, labor rates, and location. Used units typically range from $192.50 to $440.00 (with some freight charges around $475.00). Remanufactured units run $757.90 to $808.52, plus a $1,000 core charge. A new bare OEM unit costs around $823.69, while a complete new assembly from the dealer can exceed $3,500.
| Part Type | Estimated Part Cost (USD) | Notes |
|---|---|---|
| New OEM | $823.69 - $3,500+ | Highest cost. Bare units start around $825; complete assemblies ordered directly from Kia exceed $3,500. |
| Remanufactured OEM | $757.90 - $1,200 | Rebuilt by Kia to factory specs. Requires a core charge of around $1,000. |
| Used OEM | $192.50 - $1,300 | A salvaged unit from a donor vehicle. Price varies with mileage and condition. |
| Shop Labor | $750 - $1,800 | Based on an estimated 6-12 hours of work. |
What Fails at Every Mileage Band
Pro Tip: The mileage bands below describe the typical condition and known failures of used replacement units at that mileage. The checklists provided are critical steps to perform WHILE INSTALLING the purchased transmission, not maintenance for your current failing unit.
Under 60,000 Miles
Even low-mileage units can experience valve body bore wear, which can occur in as few as 40,000 miles. Other issues include outdated TCM software, faulty fluid temperature sensors, and internal wiring harness degradation.
- ✓Do during install (required): Update the TCM to the latest software version to prevent shifting abnormalities.
- ✓Do during install (recommended): Perform a complete transmission fluid and filter change, as factory-fill fluid can be contaminated or degraded even at low mileage.
- ✓Cheap insurance while the engine is out: Inspect and consider replacing the internal wiring harness if any sensor-related codes are present, as it contains the integrated fluid temperature sensor on later models.
60,000 - 100,000 Miles
At this stage, solenoid failures (particularly DTC P0741) become more common. Shift quality issues worsen due to accumulated valve body wear and degraded fluid. Inhibitor switch and fluid temperature sensor failures also peak in this band.
- ✓Do during install (required): Replace all external seals (axle seals, torque converter seal). Perform a fluid and filter service on the replacement unit before installation. The recommended interval for severe service is 30,000-50,000 miles.
- ✓Do during install (recommended): Swap the inhibitor switch from the original transmission to the replacement unit, as failures are common for this part.
- ✓Cheap insurance while the engine is out: Consider replacing the solenoid pack as a preventative measure, especially if the vehicle's history is unknown or if any shift quality issues were noted.
100,000 - 150,000 Miles
Units in this range face complete transmission failure requiring rebuild or replacement due to accumulated wear on internal components like clutches and bearings. Center support bearing failure can occur, detected as a road-speed-dependent bearing noise.
- ✓Do during install (required): Replace the torque converter. At this mileage, it's cheap insurance against a future failure that would require removing the transmission again. Replace all seals, fluid, and filter.
- ✓Do during install (recommended): Inspect and consider replacing accessible bearings like the center support bearing if any noise was present before failure.
- ✓Cheap insurance while the engine is out: Replace the entire solenoid pack and the internal wiring harness, which includes the temperature sensor.
Over 150,000 Miles
These units exhibit general end-of-life wear and tear on all internal components, including clutch packs, bearings, and the valve body. There is an increased probability of hard part failures (gears, shafts, etc.).
- ✓Do during install (required): At this mileage, a used transmission should be considered a core for a rebuild or replaced with a remanufactured unit for reliability. If installing a used unit, replace the torque converter, all seals, solenoids, internal harness, fluid, and filter. A comprehensive overhaul is the only reliable path.
Real Owner Experiences
| Source | Mileage | What Happened | Cost |
|---|---|---|---|
| Forum Kia | 45,000 km (~28,000 miles) | Transmission stopped shifting, got stuck in first gear, and revved uncontrollably. Both clutches burned out and required replacement along with internal shafts. | Warranty |
| Reddit r/kia | 50,000 miles | A 2018 Optima with the 1.6T engine and a dual-clutch transmission (a different unit, but indicative of brand issues) developed shuddering and clunky gear changes, requiring a full replacement. | Warranty |
| RepairPal | Average of 67,334 miles | Owners report jerking and lurching when downshifting, often resolved by a TCM software update. | Varies (software update vs. component failure) |
| Forum Kia | 75,000 km (~46,600 miles) & 85,000 km (~52,800 miles) | After an initial failure at 45,000 km, the same vehicle experienced subsequent failures where it would only engage odd gears, and later stalled in 6th gear, requiring shaft replacements each time. | Warranty |
| Reddit r/kia | 88,000 miles | The same 2018 Optima that had its DCT replaced at 50k miles began exhibiting the same shuddering and clunky shifting, indicating a second transmission failure. | Warranty |
| Reddit r/KiaK5 | 125,000 miles | Owner of a 2017 Optima reported that after an engine replacement at 68k, the transmission shifting was never the same. A TCM relearn did not help. | N/A |
| YouTube Comment/Story | 118,000 miles | A 2019 Kia Sportage (with a similar transmission) experienced slipping and eventual failure. The fluid was found to be like "burnt coffee," indicating severe degradation from missed fluid changes. | $3,400 (for rebuilt unit) |
| BobIsTheOilGuy Forum | 222,000 miles (on a 2011 Optima) | Owner noticed minor, slow shifting after 160,000 miles on the current fluid. The transmission was still functional but showing signs of age. | N/A (seeking advice) |
| Reddit r/KiaK5 | 217,000 miles (on a 2013 Optima) | Owner reported having the original engine and transmission still running in the vehicle, demonstrating the potential for longevity with proper care. | N/A |
| Reddit r/Cartalk | 4,000 (on used part) | Replaced with a used transmission from a salvage yard. | $1,050 ($450 for part + $600 for labor). |
| Reddit r/MechanicAdvice | 134,000 | Undecided. Mechanic recommended full replacement due to metal in fluid from a P0741 code. Quoted $4,400 for a rebuild with a 12-month warranty, or $2,500 labor to install a used unit. | N/A |
| Reddit r/MechanicAdvice | 42,000 | Transmission replacement at a dealer. | $5,700. |
Freight and Delivery Reality
When ordering a used transmission online, it will not arrive in a standard cardboard box. This assembly weighs approximately 176 lbs and measures roughly 32" x 32" x 24" before crating. It ships as Less-Than-Truckload (LTL) freight strapped to a wooden pallet.
- Liftgate Required: If you are having the transmission delivered to a residential address or a shop without a loading dock, you must request a liftgate service to lower the pallet to the ground.
- Inspect Before Signing: Never sign the delivery receipt until you have thoroughly inspected the transmission. Look for a cracked case, broken sensors, or a crushed oil pan caused by forklift mishandling. Once you sign, you accept the condition "as-is."
- Pre-Purchase Verification: Reputable auto recyclers will conduct a pre-purchase verification interview before shipping. They will ask you to confirm your VIN starts with 'K' and that your vehicle is a 2.4L FWD. This is an industry best practice to prevent costly freight returns.
Installation and Post-Install Requirements
Installing this transmission is a job for an expert-level DIYer or a professional shop. Several steps are mandatory for a successful and long-lasting repair.
Special Tools Required
- Engine support bar/bridge
- Heavy-duty transmission jack
- OBD2 scan tool with live data capabilities
- Fluid pump
- Torque wrench
Key Installation Steps & "Gotchas"
- Torque Converter Seating: The torque converter must be fully seated into the transmission's front pump before installation. You should feel it engage in three distinct steps or "clicks" until it is recessed. Bolting the transmission to the engine with an unseated converter will destroy the internal oil pump gears.
- Flush Cooler Lines: It is mandatory to use a transmission cooler-line flush kit to clean the external transmission cooler and lines. Failure to do so will circulate metal debris from the old, failed unit into the replacement, causing immediate damage.
- Fluid Level Check: This transmission has no dipstick. The fluid level must be checked via an overflow plug on the front plastic cover. This must be done with the engine running and the transmission fluid at a specific temperature (122–140°F / 50–60°C).
- Required Fluid: Only use Hyundai/Kia genuine ATF SP-IV fluid. The system holds approximately 7.1 to 7.4 Liters total capacity, requiring 4.5 to 5 Liters for a service fill. Using universal or incorrect fluid types (like SP-III) will cause shifting problems and damage.
- Alignment Dowels: Ensure alignment dowel pins are present on the engine block to prevent crooked installation and severe vibrations.
Pro Tip: Always replace the left and right axle shaft seals and the torque converter input shaft seal (front pump seal) before installing a used transmission. These are inexpensive parts that prevent costly leaks down the road.
Post-Installation Programming: Not Optional
After the transmission is installed, it must be electronically calibrated to the vehicle.
- TCM Adaptive Value Reset: The Transmission Control Module (TCM) stores data based on the wear patterns of the old transmission. These "adaptive values" must be cleared using a dealer-level or advanced bi-directional scan tool.
- Software Update: The TCM software should be checked for any updates from Kia to ensure optimal performance and to correct any known factory bugs.
- Relearn Procedure: After the reset, a specific stationary and driving relearn procedure must be performed to allow the TCM to learn the characteristics of the replacement unit.
Warning: Skipping the TCM reset and relearn procedure will cause immediate and severe harsh shifting, which can quickly damage the clutches in the replacement transmission.
Questions to Ask Your Installer
Before handing over your keys, ask your mechanic these specific questions to ensure they understand the nuances of this Kia transmission:
- Have you confirmed my vehicle's VIN starts with 'K' and that this specific used or remanufactured transmission is compatible with the Korea-built model?
- How will you be flushing the transmission cooler and lines to ensure no debris from my old transmission contaminates this replacement unit?
- Do you have a dealer-level scan tool capable of performing the mandatory TCM adaptive value reset and drive relearn procedure after installation?
- Can you confirm you will be using only Hyundai/Kia approved SP-IV automatic transmission fluid?
- What is your process for ensuring the torque converter is fully seated (the 'three clicks') before mating the transmission to the engine?
- Does your quote include replacing the axle seals and the torque converter seal during the installation?
- What warranty do you offer on your labor, and what is the warranty on the transmission unit itself?
Frequently Asked Questions
What are the most common mistakes when buying this transmission?
The most frequent errors are ordering for a US-built Optima (VIN starting with '5') instead of a Korea-built one (VIN 'K'), forcing the transmission onto the engine using bellhousing bolts when the torque converter is not fully seated, skipping the mandatory TCM adaptive reset, using incorrect fluid types, and failing to flush the transmission cooler lines.
What parts are included with a used transmission?
A used assembly typically includes the transmission case, all internally lubricated parts, the torque converter, the transmission oil pan, and the front plastic side cover. External sensors (beyond integral case sensors), the Transmission Control Module (TCM), shifter assembly, external linkage/cables, engine flexplate/flywheel, and external fluid cooler lines are generally not included.
Is this a difficult DIY job?
Yes, this is considered an expert-level job. It requires special tools like an engine support bar and transmission jack, precise procedures for seating the torque converter, and access to a high-level scan tool for post-installation programming.
What is the expected service life of this transmission?
With proper maintenance, the service life of the A6MF family transmission is generally expected to be between 150,000 and 200,000 miles. Some owners have reported reaching over 200,000 miles on the original unit. However, service life can be significantly shortened by neglected fluid changes or severe driving conditions.
What maintenance extends the life of this transmission?
The single most critical factor in extending the life of this transmission is regular fluid changes. While Kia has marketed the fluid as "lifetime," real-world conditions and transmission experts strongly recommend a fluid and filter change every 30,000 to 60,000 miles using only Hyundai/Kia SP-IV fluid. For vehicles operating under severe conditions, the more frequent 30,000-mile interval is highly advised.

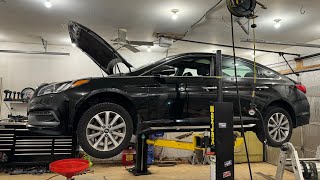

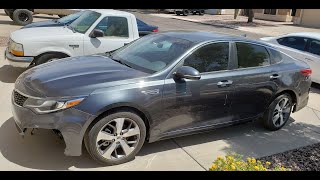

Helpful Videos
Technical Specifications
OEM Part Numbers: 45000-3BYG0 450003BYE0 45000-3BYE0R 45000-3BYG0RCA
Model: A6MF1 / A6MF2; Type: 6-Speed Automatic; Drivetrain: Front-Wheel Drive (FWD); Engine Compatibility: 2.4L Theta II (VIN 8th digit '3'); Required Fluid: Hyundai/Kia genuine ATF SP-IV; Fluid Capacity: 7.1 - 7.4 Liters (total); Service Fill: 4.5 - 5 Liters; Weight: Approx. 176 lbs; Dimensions: Approx. 32" x 32" x 24"
