2015-2017 F-150 2.7L EcoBoost 4x4 6R80: Problems, Identification, and Used Replacement

Is This the Right Transmission for Your F-150?

This article covers the 6-speed automatic transmission, known as the 6R80, found in 2015-2017 Ford F-150 pickup trucks equipped with the 2.7L EcoBoost V6 engine and a 4x4 drivetrain. This specific version was engineered to work with the 2.7L engine's unique power delivery and the truck's four-wheel-drive system.

How to Confirm Your Vehicle's Build

Before purchasing a replacement, you must verify that your truck matches this exact configuration. Check the following details on your F-150:

• Vehicle Identification Number (VIN): The 8th character of your VIN must be 'G', which signifies the 2.7L EcoBoost V6 engine.
• Safety Certification Sticker: On the driver's side door jamb, look for the sticker and find the code under 'TR'. It must show 'W' to confirm it has a 6R80 transmission.
• Drivetrain: Physically confirm your truck is a 4x4 model. It should have a transfer case connected to the rear of the transmission and front axles.

Identifying the Transmission

The easiest way to identify the transmission itself is by locating the white barcode tag on the driver's side (left side) of the transmission case. This tag will list the specific part number. For this application, look for identifying codes such as FL3P-7000-HA or FL3Z-7000-H.

Common Failure Symptoms

When the 6R80 transmission begins to fail, it can show several distinct symptoms. If you experience any of the following, it may indicate a serious internal problem that requires a full replacement:

• Sudden, harsh downshifts: The transmission may unexpectedly shift into a low gear, like first gear, while driving at speed. This is a major safety concern.
🎬 Watch: How this sudden downshift defect affects your truck
• Loss of reverse: The transmission may intermittently fail to engage reverse.
• Shift flares or shuddering: You might feel a hesitation, shudder, or engine RPMs flaring up between shifts.
• Illuminated warning lights: A check engine light or wrench light on the dashboard can signal a transmission fault.

Diagnostic Flowchart

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

Several documented issues affect the 6R80 transmission in these F-150s. Understanding them can help you diagnose your truck or verify that a used unit has been updated.

Sudden Uncommanded Downshifts (NHTSA Recall 26V237000 / Ford 26S28)

This is the most severe issue, where the transmission can suddenly downshift to first gear, potentially causing the rear wheels to lock up and a loss of vehicle control. This problem affects 2015-2017 models. The cause is often a failure of the internal molded lead frame, which contains the transmission's speed sensors. The official remedy from Ford involves a Powertrain Control Module (PCM) software update and, in some cases, replacement of the lead frame itself.

Intermittent Loss of Reverse (TSB 20-2060)

Some 2015-2017 F-150s may experience an intermittent loss of reverse, especially when shifting from a low manual gear into reverse while the truck is rolling at a low speed. This issue, which does not always trigger a diagnostic code, is addressed by Ford Technical Service Bulletin 20-2060. The fix is to have a dealer reprogram the PCM with updated software and perform an adaptive learning drive cycle.

Molded Lead Frame Failure

The molded lead frame is a plastic component inside the transmission that houses electrical conductors and sensors. It is a known weak point across many 6R80 applications. When it fails, it can cause erratic behavior, including the sudden downshifts noted in the recall, as well as other shifting problems. Many remanufactured transmissions are built with an updated lead frame to prevent this issue.

Replacement Cost Comparison

The cost to replace a 6R80 transmission can vary significantly based on the type of replacement unit you choose. Labor costs for this job are also substantial, typically taking 5-14 hours of shop time.

Note: Prices are estimates and do not include taxes, fluids, or required programming. Used part prices vary based on mileage and condition.

What Fails at Every Mileage Band

Under 60,000 Miles

Even low-mileage units can experience electronic and fluid-related issues. Known failures include sudden, uncommanded downshifts to a low gear at highway speed (often linked to the molded lead frame recall), harsh or erratic shifting behavior, torque converter shudder, and shift position sensor failure within the lead frame assembly.

• ✓Do during install (required): Verify the PCM has the latest Ford software updates, especially those related to recall 26S28/NHTSA 26V237000 for downshifts and TSB 20-2060 for reverse engagement.
• ✓Do during install (required): Perform a complete fluid flush with Motorcraft MERCON LV and replace the filter, as fluid can be contaminated even at low miles.
• ✓Cheap insurance while the engine is out: Consider replacing the molded lead frame as a preventative measure if the budget allows, as failures are reported across all mileage ranges and it is much easier to do with the transmission out.

60,000 - 100,000 Miles

In this range, molded lead frame failure becomes more common, causing erratic shifting, sudden downshifts, and loss of gear indication. You may also see torque converter shudder due to fluid breakdown or clutch wear, shift flares (RPMs jumping between gears), and harsh shifts pointing to wear in the valve body or failing solenoids.

• ✓Do during install (required): Replace the molded lead frame. Failures are common in this range, and replacement is labor-intensive, making it critical insurance while the transmission is removed.
• ✓Do during install (required): Perform a complete fluid and filter service with MERCON LV.
• ✓Do during install (recommended): Replace the valve body separator plate with an updated bonded gasket version to prevent cross-leaks.
• ✓Cheap insurance while the engine is out: Replace the main transmission fluid connector sleeve/seal, as it is a known leak point and is easy to access during installation.

100,000 - 150,000+ Miles

High-mileage units are prone to internal hard part failures, such as a cracked 4-5-6 (E-clutch) drum, leading to incorrect gear ratio codes and skipping gears. Increased wear on valve body bores and solenoids causes persistent shift quality issues that software updates cannot fix. Catastrophic slipping due to worn clutch packs and failures of the transmission range sensor are also common.

• ✓Do during install (required): Replace the molded lead frame assembly.
• ✓Do during install (required): Assume a full rebuild or replacement of soft parts is necessary if not purchasing a remanufactured unit. This includes all clutches, steels, seals, and gaskets.
• ✓Do during install (recommended): Strongly consider replacing the torque converter, as shudder and wear are common at this mileage.
• ✓Cheap insurance while the engine is out: Replace the valve body separator plate and consider a valve body rebuild with updated components to address bore wear. Replace the internal cooler bypass valve, which can stick and cause overheating.

Real Owner Experiences

Repair or Replace?

Deciding whether to repair your current 6R80 or replace it entirely depends on the specific failure mode and the mileage of your truck.

• Molded Lead Frame Failure ($900 - $2,200): This is a common repair that does not require removing the entire transmission. If the transmission is otherwise healthy with no slipping or major internal issues, replacing the lead frame is far more economical than replacing the whole unit. The repair involves dropping the transmission pan and valve body.
• Torque Converter Shudder ($1,500 - $2,000): If the issue is caught early and is isolated to the torque converter lockup clutch, replacement can be a viable option. However, since the transmission must be removed to replace the converter, it is often recommended to perform a full rebuild at the same time, especially on higher mileage units (130,000+ miles), to address any other potential wear.
• Minor Solenoid Issues or Fluid-Related Problems ($1,000 - $3,500): For issues like harsh shifting that can be traced to a specific solenoid or can be resolved with a fluid/filter change and PCM software update, a targeted repair is sensible. A full replacement would be unnecessary if the internal clutches and hard parts are in good condition.

When Replacement is Smarter: Replacement with a remanufactured or low-mileage used unit is the smarter choice when the transmission has suffered catastrophic internal damage, such as clutch pack failure, or when multiple issues are present (e.g., lead frame failure combined with torque converter shudder and high mileage). Given the significant labor cost to remove and reinstall the transmission (5-14 hours), it is often more cost-effective in the long run to install a warrantied unit rather than attempting a costly rebuild on a transmission with extensive wear.

Installation and Programming: What to Know

Replacing this transmission is a complex job that should be left to experienced technicians. Several critical steps must be followed to ensure the replacement unit works correctly and is not damaged during installation.

Mandatory Computer Programming

A used or remanufactured 6R80 transmission cannot simply be installed and driven. It requires special programming to work with your truck's computer.

• Solenoid Strategy Programming: Every 6R80 has a unique 13-digit code printed on the case tag, called the Solenoid Body Strategy. This code corresponds to the precise electronic characteristics of the valve body solenoids. This number must be programmed into the vehicle's PCM using a Ford-specific scan tool (like IDS or an advanced tool like FORScan with an OBDLink EX adapter).
• Adaptive Relearn: After programming, the truck must be driven in a specific way (an adaptive learning drive cycle) to allow the computer to learn the new transmission's shift characteristics.

Key Installation Steps & "Gotchas"

• Fluid Level Check: These transmissions do not have a traditional dipstick under the hood. The fluid level must be checked via a small plug on the passenger side of the case while the transmission is warm and the engine is running.
• Flush the Cooler: The transmission cooler and lines must be thoroughly flushed to remove any metal debris from the old, failed transmission. The internal thermal bypass valve requires a specialized flush machine or heating to ensure the thermostat opens during flushing. If this step is skipped, debris will circulate into the replacement unit and cause it to fail quickly.

Freight & Delivery Reality

When ordering a used 6R80 transmission, it will not arrive in a standard cardboard box. This is a heavy industrial component that ships as LTL (Less-Than-Truckload) freight on a wooden pallet. The assembly weighs approximately 260 lbs and measures roughly 40" x 28" x 26" before crating. Because of its size and weight, delivery requires a forklift or a truck equipped with a liftgate. Always inspect the transmission thoroughly for any physical damage to the case, bellhousing, or electrical connectors before signing the delivery receipt.

Questions to Ask Your Installer

Before handing over your truck, ensure your mechanic is fully prepared for this specific job by asking:

• Have you confirmed this is a 6R80 for a 2.7L EcoBoost 4x4 and not a 2WD or a unit for a different engine?
• Will you be recording the 13-digit solenoid strategy code from the replacement unit's tag BEFORE you install it?
• Do you have the proper Ford IDS or FORScan diagnostic tool to perform the mandatory solenoid body strategy programming and the adaptive learning drive cycle?
• Does your quote include a complete transmission cooler flush using a heated or pressure-pulsing machine to open the thermal bypass valve?
• What brand and type of transmission fluid will you be using? (It must be MERCON LV)
• Does the quoted price for a remanufactured unit include a warranty, and what are its terms (duration, mileage, parts & labor)?

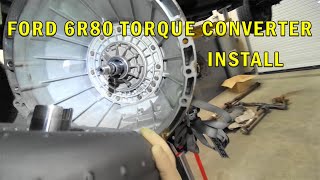

• How will you verify the torque converter is fully seated (all three clicks) before bolting the transmission to the engine?
• If I supply a used transmission, what is your policy if the unit is defective after installation?

Arrival Inspection for Your Used Transmission

Before you install your used 6R80 transmission, inspect it closely. Check these specific areas as soon as the part arrives to make sure it is healthy.

• Pan and Magnet Inspection: Remove the bottom transmission pan. Look at the small magnet inside the pan. A small amount of fine, gray metallic paste is normal. This is just normal wear. However, if you see large metal shavings, chunks, or brass flakes, the transmission has severe internal damage. Do not install it.
• Fluid Color and Smell: The 6R80 uses Mercon LV transmission fluid. Wipe some of the leftover fluid onto a white paper towel. Good fluid will be red or dark red. If the fluid is pitch black or smells like burnt toast, the internal clutches are burned up.
• Converter Hub Condition: Look at the torque converter hub. This is the smooth metal snout that slides into the front pump of the transmission. Feel it with your fingernail. If you feel deep grooves or rough scoring, it will ruin the front pump seal and cause a massive fluid leak.
• Input Shaft Splines: Check the input shaft splines. These are the grooved metal teeth sticking out of the front of the transmission. Make sure the teeth are straight and sharp. If the teeth are twisted, chipped, or worn flat, the transmission will not connect properly to the engine.
