2006 Ford F-150 4.2L V6 4R70E Transmission: Problems, Identification, and Used Replacement

Identifying the Correct 2006 F-150 4.2L V6 Transmission

The 2006 Ford F-150 equipped with the 4.2L V6 engine uses a specific version of the 4R70E four-speed automatic transmission. This unit is designed for a rear-wheel-drive (4x2) layout. Confirming you have this exact variant is critical before purchasing a replacement, as it will not interchange with transmissions from V8 or 4x4 models.

Common Symptoms of Failure

A failing 4R70E transmission can exhibit several warning signs. If you experience any of the following, it may be time to have the transmission inspected by a professional:

• Delayed or Harsh Shifting: The truck may pause before engaging a gear or shift with a noticeable clunk.
• Shuddering: A vibration or shudder, especially during moderate acceleration or when the torque converter should lock up at highway speeds.

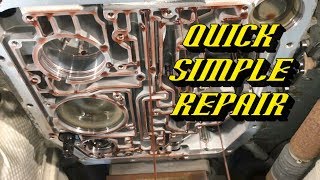

• Loss of Overdrive: The transmission fails to shift into 4th gear, causing high RPMs at highway speeds.
• Slipping Gears: The engine RPMs flare up during a shift without a corresponding increase in speed, indicating the clutches are not engaging properly.
• No Reverse Engagement: The vehicle will not move when shifted into reverse.
• Hesitation from a Stop: 🎬 See this guide on fixing low power and stalling issues A noticeable delay in movement after pressing the accelerator from a complete stop.

Diagnostic Flowchart

Known Issues, TSBs, and Recalls

The 4R70E family has several well-documented issues. Understanding these can help diagnose problems accurately.

Replacement Cost Comparison

The cost of replacing a 4R70E transmission can vary significantly based on the type of replacement unit you choose. Labor costs for removal and replacement typically range from $720 to $1,800 (representing 6.0 to 8.0 hours of shop labor), depending on local shop rates.

Installation Essentials & Gotchas

Proper installation is key to the longevity of a replacement transmission. Whether you're doing it yourself or using a professional, these points are critical.

Required Parts, Fluids & Tools

• Transmission Fluid: Only use fluid that meets the Motorcraft MERCON V specification. Using other types like Mercon LV, ULV, or generic ATF can cause shifting problems and damage.
• New Filter and Pan Gasket: Always install a new transmission filter (e.g., Motorcraft FT-105) and pan gasket.
• Front Pump Seal: It is best practice to replace the front pump seal before installation.
• Transmission Cooler Flush: A chemical flush agent for the external transmission cooler and lines is mandatory.
• Special Tools Required: You will need a torque converter depth gauge or straightedge, a transmission jack, a torque wrench, a comprehensive socket and wrench set, and a specialized tool for disconnecting fuel/cooler lines.

Critical Installation Steps

• Torque Converter Seating: The torque converter must be fully seated into the front pump. You should feel it drop into place three distinct times. Verify the seating depth is at least 1 inch recessed from the bellhousing face.

• Bellhousing Alignment Dowels: Ensure both engine block alignment dowels are clean, undamaged, and in place to prevent rapid wear on the front pump bushing and seal.
• Cooler and Line Flush: The transmission cooler and lines must be thoroughly flushed before connecting them to the replacement unit.

• Flexplate Inspection: While the transmission is out, carefully inspect the flexplate (the metal plate between the engine and torque converter) for cracks, especially around the crankshaft hub and starter ring gear.
• Fluid Fill Procedure: Do not assume the replacement transmission is full. Add 5-6 quarts of MERCON V fluid initially, start the engine, cycle the shifter through all gears (pausing for a few seconds in each), and then check the fluid level while the engine is warm and running. Top off as needed.
• Harness Compatibility: The 4R70E features two case-mounted speed sensors on the driver's side (TSS and OSS). Older 4R70W transmissions only have an OSS sensor and are electronically incompatible.

What Fails at Every Mileage Band

Under 60,000 Miles

While less common at this mileage, some issues can appear early. These include harsh 3-2 downshifts, which may be addressed by a PCM calibration update (TSB 05-10-12), and potential loss of reverse due to planetary gear assembly issues (TSB 13-4-23). A known issue involves a wiring harness near the exhaust manifold that can melt, causing a transmission fault and preventing the shift into overdrive. Some owners have reported transmission failure even at low mileages, such as one case at 42,000 miles where the transmission would not shift into third gear.

• ✓Do during install (required): Even on a low-mileage unit, it is critical to flush the transmission cooler and lines to remove any potential debris. Replace the transmission filter, pan gasket (the original is often reusable), and front pump seal. Always install the new or warrantied torque converter that comes with the used transmission; do not reuse the old one.
• ✓Do during install (recommended): Inspect and consider replacing the rubber check balls in the valve body, as they are known to wear down and cause shifting issues or a feeling of low power.

60,000 - 100,000 Miles

Torque converter shudder becomes more common in this range, often felt between 40-60 mph during lock-up. Delayed engagement when shifting into Drive or Reverse, sometimes taking up to 10 seconds, can occur. Loss of 3rd gear or overdrive is a significant failure point, sometimes caused by a broken overdrive servo snap ring or internal seal failure. Worn valve body components, including solenoids and rubber check balls, can lead to erratic shifting, stalling, or a feeling of the engine bogging down.

• ✓Do during install (required): A complete fluid and filter change with MERCON V is mandatory. Thoroughly flush the transmission cooler and lines to prevent contamination.

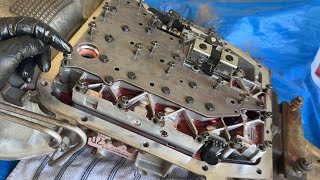

• ✓Do during install (recommended): At this mileage, it is strongly recommended to service the valve body. This includes replacing the 2-3 accumulator piston, upgrading the worn rubber check balls to more durable plastic ones, and considering a shift kit to address known pressure and shifting issues. Replace all external seals, including the front pump seal and output shaft seal.

100,000 - 150,000 Miles

Failures from the previous mileage band become more prevalent, including complete loss of overdrive (broken servo clip) and torque converter shudder. Loss of reverse gear is a common and significant failure, often due to a broken reverse band inside the transmission, which requires a full teardown to repair. Slipping between gears, especially under light acceleration, is a sign of worn internal clutches or seals. Harsh shifting, clunking, or lurching under acceleration can indicate significant internal wear.

• ✓Do during install (required): Assume the valve body needs attention. At a minimum, replace the filter and all seals.
• ✓Do during install (recommended): Consider installing a remanufactured valve body or a comprehensive shift kit to correct wear in the bores and improve durability. It is wise to replace both the input (TSS) and output (OSS) speed sensors while the transmission is out. Replace the overdrive servo snap ring as a preventative measure if accessible, as it is a known failure point.
• ✓Cheap insurance while the engine is out: Given the mileage, replacing the transmission mount is cheap insurance against future vibrations.

150,000+ Miles

At this stage, any of the previously mentioned issues can occur, with a higher probability of catastrophic failure of hard parts like the forward clutch drum or planetary gear sets. Front pump seal leaks can become more common, leading to fluid loss and eventual pump failure if not addressed. Complete transmission failure is common. Many owners report needing a rebuild or replacement between 120,000 and 200,000 miles.

• ✓Do during install (required): When installing a used unit with over 150,000 miles, it is best to treat it as a core for a rebuild or, at minimum, perform a comprehensive refresh. Mandatory replacement of the torque converter, all seals, filter, and fluid.
• ✓Do during install (recommended): Strongly consider installing a remanufactured valve body and all new solenoids to ensure proper hydraulic control and prevent immediate issues.
• ✓Cheap insurance while the engine is out: Inspect the flexplate for cracks and check the condition of the transmission mount and driveshaft U-joints.

Real Owner Experiences

Repair or Replace?

Deciding whether to repair your existing 4R70E or replace it entirely depends on the specific failure mode and the overall health of the unit.

Questions to Ask Your Installer

Before handing over your keys, ask your mechanic these critical questions:

• Have you confirmed this is the correct transmission for a 4.2L V6 4x2 model, not the V8 or 4x4 version?
• Does your quote include fully flushing the transmission cooler and lines before installation?
• How will you verify the torque converter is fully seated before bolting the transmission to the engine?
• What brand and type of transmission fluid will you be using? (It must be MERCON V).
• Does the quoted price include the cost of a new transmission filter, pan gasket, and front seal?
• Will you perform a Keep Alive Memory (KAM) reset and the adaptive learning drive cycle after installation?
• What is the warranty on the replacement transmission and the labor?

Freight & Delivery Reality

A replacement 4R70E transmission assembly is a heavy, bulky industrial part. It weighs approximately 208 lbs and measures roughly 46" x 23" x 24" before crating. Because of this size and weight, it ships as LTL (Less Than Truckload) freight on a wooden pallet—it will NOT arrive as a standard parcel delivery.

When ordering a used or remanufactured transmission, keep these delivery realities in mind:

• Liftgate Required: Unless you are shipping to a commercial address with a loading dock or a forklift, you must request a liftgate service to lower the pallet to the ground.
• Inspect Before Signing: Never sign the delivery receipt until you have visually inspected the transmission for transit damage. Check the pan, bellhousing, and tailhousing for cracks or dents.
• Pre-Purchase Verification: Reputable sellers will conduct a pre-purchase verification interview. They will ask you to confirm your VIN's 8th digit is '2', your TR code is 'A', and that your truck is strictly a 4x2 RWD model. This industry best practice ensures you receive the exact PKF-EC, PKF-ET, or 6L3P-7000 unit you need.

Arrival Inspection for Your Used 4R70E

Perform a strict inspection as soon as your used transmission arrives. Do this before you spend time installing it.

Pan and Magnet Inspection

Remove the bottom transmission pan. Look at the small magnet stuck to the inside of the pan.

• Normal wear: A light coating of fine, gray metallic dust on the magnet.
• Bad signs: Large metal shavings, steel chunks, or thick black sludge. Chunks mean broken gears. Sludge means burnt clutches.

Fluid Color and Smell

Check the leftover fluid inside the pan and filter.

• Good fluid: Red, dark red, or light brown.
• Bad fluid: Pitch black fluid or a strong burnt toast smell means the internal clutches are ruined.

Converter Hub Condition

Look at the torque converter hub. This is the smooth metal tube sticking out of the back of the torque converter (the large metal bowl at the front of the transmission). This tube spins inside the front pump seal.

• Check the outside of this tube for deep grooves or scratches.
• If you can catch your fingernail in a groove, the hub is worn out. A grooved hub will tear the front seal and leak fluid immediately.

Input Shaft Spline Condition

Look at the input shaft. This is the metal rod sticking out of the center of the transmission pump. It has straight metal ridges called splines.

• The splines must be perfectly straight and evenly shaped.
• If the splines look twisted, chipped, or worn down to sharp points, the shaft is damaged. A damaged shaft will not lock into the torque converter, and the truck will not move.
