2020-2023 Cadillac CT4 2.0L AWD 8L45 Transmission: Problems, Identification, and Used Replacement
Identify the GM 8L45 transmission in your 2.0L Turbo AWD CT4, learn what causes torque converter shudder, and know when it's time to swap in a quality used OEM assembly.
- The most common failure, a shuddering sensation, is often caused by moisture-contaminated fluid and can be fixed with a fluid flush using Mobil 1 Synthetic LV ATF HP (Blue Label) if caught early (TSB 18-NA-355).
- This transmission requires mandatory Solenoid Characterization Programming (TUN/PUN matching) using a GM-specific scan tool upon replacement to avoid severe shifting problems and limp mode.
- When installing a used unit, always flush the cooler lines and strongly consider replacing the torque converter to prevent contamination and repeat failure from the common shudder issue.
- Verify the RPO code M5N, the 2.0L Turbo engine (VIN 8th digit '5'), and AWD drivetrain to ensure you are ordering the correct replacement part, as units from other GM models are not compatible.
Identification: Is This Your Transmission?
The automatic transmission in the 2020-2023 Cadillac CT4 with the 2.0L Turbo engine and All-Wheel Drive (AWD) is the General Motors Hydra-Matic 8L45. This is an 8-speed, longitudinally mounted transmission. A buyer must confirm several key details on their own vehicle to ensure they are ordering the correct part.
Vehicle-Level Checks
Before purchasing a replacement, verify the following on your CT4:
| Engine | Confirm you have the 2.0L Turbo (LSY) engine. The 8th character of your Vehicle Identification Number (VIN) should be '5'. |
| Drivetrain | This specific transmission is for All-Wheel Drive (AWD) models only. |
| RPO Code | You must have the Regular Production Option (RPO) code M5N. On newer GM vehicles, this is found by scanning a QR code on the driver's side door jamb sticker. On older models, it may be on a sticker in the glovebox. Other identifying codes include 0NFL and 1NFL. |
Pro Tip: The VIN is located on a tag on the driver's side of the dashboard (viewable through the windshield) and on the driver's door jamb sticker. To find the Transmission Unique Number (TUN) for programming, locate the transmission identification tag on the passenger's side rear of the original transmission case.
What Will Not Fit
Warning: The 8L45 transmission family was used in many GM vehicles, but they are not interchangeable. This specific unit will NOT fit:
- Cadillac CT4 RWD models: These use a different tailhousing and output shaft.
- Cadillac CT4 models with the 2.7L engine: These use a 10-speed automatic transmission.
- Other GM vehicles (Camaro, Colorado, Canyon, CTS, ATS, CT6): Even if they use an 8L45, differences in the bellhousing, tailhousing, wiring harnesses, and internal calibration make them incompatible with the CT4.
Common Failure Symptoms
Two primary symptoms indicate a potential failure of the 8L45 transmission or its related components. These issues are well-documented across the entire GM 8-speed family.
- Torque Converter Shudder: The most common complaint is a severe vibration or shudder felt during light acceleration at steady speeds, typically between 25 and 80 mph. Many drivers describe this feeling as driving over rumble strips. This is caused by an issue with the Torque Converter Clutch (TCC).
- Harsh Shifting: Drivers may experience moderate to severe harsh or jerky shifts, particularly the 1-2 upshift when the vehicle is cold. This can also manifest as a noticeable clunk when shifting or a cold shift flare (a brief, unintended engine RPM spike) between gears.
Diagnostic Flowchart
Known Issues, Bulletins, and Recalls
GM has issued several Technical Service Bulletins (TSBs) to address the common problems with this transmission family. The expected service life is highly dependent on fluid maintenance. With regular fluid changes (every 30k-45k miles) using the updated fluid, many owners report service lives exceeding 150,000 to 180,000 miles. Without it, the lifespan is significantly shortened.
TSB 18-NA-355: Torque Converter Clutch (TCC) Shudder
This bulletin directly addresses the shudder or "rumble strip" sensation.
- Cause: The original factory-fill transmission fluid was found to be hygroscopic, meaning it readily absorbs moisture. This changes the fluid's frictional properties, causing the torque converter clutch to grab and release improperly.
- Remedy: The official fix is a complete fluid exchange (often called a "triple flush") with an updated, fully synthetic fluid: Mobil 1 Synthetic LV ATF HP (Blue Label). If the shudder has been present for a long time, the torque converter itself may be permanently damaged and require replacement.
TSB 16-NA-019: Harsh Shifts, Slips, or Flares
This bulletin covers complaints of poor shift quality.
- Cause: The original Transmission Control Module (TCM) software calibration may not be optimal, leading to poor adaptive learning.
- Remedy: A technician with a GM-approved scan tool must update the TCM to the latest software version. After the update, a "Service Fast Learn" (SFL) procedure must be performed to reset the transmission's adaptive values. This allows the transmission to relearn shift pressures from a clean slate.
What Fails at Every Mileage Band
Pro Tip: The mileage bands below describe used replacement units of that mileage. The checklists are things to do WHILE INSTALLING the purchased transmission, not maintenance for your current transmission.
Under 60K Miles
Even at low mileage, the original factory fluid absorbing moisture causes TCC shudder. Some owners also report valve body failures or harsh 1-2 shifts requiring software updates.
- ✓Do during install (required): Verify the TCM has the latest GM calibration software to prevent harsh shifting issues. Replace the transmission filter (GM Part No. 24274616 or TF922), pan gasket (GM Part No. 24260071), front pump/torque converter input seal, and transfer case input shaft seal.
- ✓Do during install (recommended): Perform the triple fluid flush with the updated Mobil 1 Synthetic LV ATF HP (GM Part No. 19417577) fluid as a preventative measure against future shudder.
- ✓Cheap insurance while the engine is out: Inspect the included torque converter for any signs of heat glazing or damage before installation.
60-100K Miles
If the fluid was not changed early on, shudder will likely develop or worsen in this range. If a fluid flush doesn't resolve it, the torque converter itself is likely glazed or damaged. Hard shifting may become a permanent characteristic if ignored.
- ✓Do during install (required): Replace the transmission filter, pan gasket, and all installation-critical seals. Perform a complete fluid exchange with Mobil 1 Synthetic LV ATF HP ('Blue Label').
- ✓Do during install (recommended): Mandatory replacement of the torque converter is highly recommended, even if the used transmission is sold with one. The risk of the original TCC being glazed or damaged from the shudder issue is high.
- ✓Cheap insurance while the engine is out: Perform a mandatory hot flush of the transmission cooler lines to clear out debris from the failed unit.
100-150K+ Miles
At this mileage, if the shudder was not properly addressed, complete failure of the torque converter is likely. General internal wear on clutches, seals, and the valve body bores can lead to pressure loss, slipping, and erratic shifting.
- ✓Do during install (required): Replace the filter, pan gasket, all external seals, and flush the system with the correct Mobil 1 fluid.
- ✓Do during install (recommended): Assume the included torque converter is bad and replace it with a new or remanufactured unit. Have the used transmission inspected by a specialist before installation.
- ✓Cheap insurance while the engine is out: Consider a basic rebuild with a new master kit (clutches, steels, pistons, seals) and bushing kit for longevity.
Real Owner Experiences
The following table highlights real-world experiences from owners dealing with the 8L45 transmission across various GM models.
| Source | Mileage | What Happened | Cost |
|---|---|---|---|
| ~19,500 | A CT4-V owner reported a valve body failure shortly after purchase. | N/A (Warranty) | |
| 12,000 and 20,000 | A 2023 CT5 owner reported a transmission replacement at 20,000 miles after initial problems at 12,000 miles, with issues reoccurring at 25,000 miles. | N/A (Warranty) | |
| Camaro6 Forums | ~25,000 | Owner experienced TCC shudder, had a fluid flush under warranty around 10,000 miles, and the shudder returned by 25,000 miles. | N/A (Warranty) |
| 88,000 | A Colorado owner with the 8L45 transmission experienced hard 1-2 shifts and shudder. A mechanic quoted $9,800 for a rebuild, but a fluid flush for $285 improved the condition. | $285 (fluid service) vs. $9,800 (quoted rebuild) | |
| 60,000 | An owner reported the shudder developing around 60k miles. A fluid flush was covered under a TSB. | N/A (TSB/Warranty) | |
| 186,000 | Owner performs a yearly fluid flush to manage shudder while towing. The original transmission is still in service. | Cost of yearly fluid flush | |
| 165,000 | Owner did flushes at 40k and 150k miles and reports the transmission is still running well. | Cost of two fluid flushes | |
| 175,000 | Owner reports a rough 1-2 shift only when cold, but the transmission is otherwise functional at high mileage. | N/A | |
| Not specified | Dealer is rebuilding the transmission under warranty due to shudder. | $0 (under warranty) | |
| CorvetteForum | 20,800 | Paid for a transmission fluid flush (per TSB 18-NA-355) to fix shudder after the bumper-to-bumper warranty expired. | $408.48 |
| 34,000 | Dealer performed a transmission fluid flush per TSB 18-NA-355. | $308.00 | |
| Not specified | Owner was quoted for a TSB fluid exchange to fix shudder. One dealer quoted $700, another quoted $1650 claiming it needed a 'triple flush' and programming. | N/A (shopping for service) |
Repair or Replace?
Deciding whether to repair your current transmission or replace it with a used or remanufactured unit depends on the severity of the failure.
When Repair Makes Sense
| Torque Converter Clutch (TCC) Shudder | $300 - $800 | If caught early, a complete fluid exchange with the updated Mobil 1 fluid per TSB 18-NA-355 often resolves the issue. It makes sense if the shudder is mild and intermittent. |
| Torque Converter Replacement | $1,000 - $1,500 | If the fluid flush fails, the torque converter is likely damaged. Replacing it is viable if there is no significant metal debris in the pan. A new OEM torque converter costs around $400, plus 4-7 hours of labor. |
| Harsh 1-2 Shift / Cold Shift Issues | $150 - $300 | This is almost always a software calibration issue. Updating the TCM software and performing a 'Service Fast Learn' adaptive reset is a low-cost fix that should be attempted before mechanical repairs. |
When Replace is Smarter
Replacement is the smarter choice when the transmission has suffered catastrophic internal failure. Signs include finding significant metal shavings in the transmission pan, experiencing multiple gear failures, slipping, or if the vehicle is immobile. In cases of severe, long-term shudder, debris from the failing torque converter can contaminate the entire system, making a simple torque converter swap risky. Given that a major rebuild can cost upwards of $9,800, replacing it with a quality-tested used unit (typically ranging from $1,000 to $2,400) or a remanufactured unit ($3,900 to $5,600) offers a faster, more reliable solution.
Questions to Ask Your Installer
- Have you worked on the GM 8L45 transmission before, and are you familiar with its specific issues like the TCC shudder?
- Do you have a GM-compatible scan tool (like GDS2/Techline Connect) to perform the mandatory Solenoid Characterization Programming (TUN/PUN matching) for the replacement unit?
- Will you be performing a hot flush of the transmission cooler and lines before installing the replacement?
- Are you using the correct, full synthetic 'Blue Label' Mobil 1 LV ATF HP fluid (GM Part No. 19417577)?
- Does your quote include the cost of the fluid, a new filter, and any necessary seals or gaskets?
- How will you verify the torque converter is fully seated before mating the transmission to the engine to prevent pump damage?
- Can you confirm the procedure you will use to check the fluid level after installation (engine running, specific temperature range)?
Replacement Cost Estimates
The cost to replace a failed 8L45 transmission varies based on the type of replacement unit chosen. These prices are estimates and do not include taxes or shop supply fees. Shop labor is estimated at 6 to 11 hours.
| Part Type | Estimated Cost (USD) |
|---|---|
| New OEM | $5,000 – $6,500+ |
| Remanufactured | $3,900 – $5,600 |
| Used OEM | $1,000 – $2,400 |
| Installation Labor | $900 – $2,200 |
What's Included in a Used Assembly?
When purchasing a used transmission from a recycler, it's important to know what parts are typically included. The assembly is sold based on standards from the Automotive Recyclers Association (ARA).
What It Includes
- Transmission Case and all internally lubricated parts
- Valve Body and Solenoids
- Torque Converter
- Transmission Oil Pan
- AWD Extension/Tail Housing
What It Does NOT Include
- Transmission Control Module (TCM) - This is an external, standalone module on the CT4 and is not guaranteed to be included.
- Transfer Case
- External sensors, wiring harnesses, and cooler lines
- Flexplate (flywheel)
- Shifter assembly, linkage, and cables
- Turbo/Supercharger components (not applicable to the transmission itself, but excluded per ARA standards)
Freight and Delivery Reality
A used 8L45 transmission is a heavy industrial part. It weighs approximately 245 lbs and measures roughly 34" x 24" x 26" before crating. Because of this size and weight, it ships as LTL (Less-Than-Truckload) freight on a wooden pallet—it will NOT arrive via standard parcel services like UPS or FedEx Ground.
Delivery requires a commercial loading dock or a truck equipped with a liftgate. Always inspect the transmission carefully while the driver is present. Check for any physical damage to the pan, bellhousing, or sensors before signing the delivery receipt. A pre-purchase verification interview with the seller is an industry best practice to ensure you are getting the exact M5N AWD unit you need.
Critical Installation and Programming Steps
Proper installation and programming are essential for the life of the replacement transmission. This is an Advanced/Expert level DIY job. Failure to follow these steps will lead to immediate problems and will likely void any warranty.
Required Programming
Warning: This transmission cannot be simply swapped. It requires special programming with a GM-specific scan tool (GDS2 / Techline Connect) capable of SPS2 programming. The GM 8L45 uses Variable Force Solenoids requiring precise flow rate calibration. You must use GM SPS2 to enter the replacement transmission's Transmission Unique Number (TUN) into the vehicle's TCM for Solenoid Characterization Programming (TUN/PUN matching). After programming, a "Service Fast Learn" (SFL) must be performed. Skipping this step will result in harsh shifts, slipping, or the transmission entering a "limp mode" with limited function.
Installation Gotchas
- Torque Converter Seating: The torque converter must be fully seated into the transmission's front pump before installation. You should feel three distinct "clicks" or drops as it engages. Failure to do this will crack the fluid pump, destroying the unit instantly when bolted to the engine.
- Mandatory Cooler Flush: The transmission cooler and lines must be hot-flushed with a dedicated machine to remove any metal debris from the previously failed unit. Contaminated debris will ruin the replacement transmission in a very short time and void the warranty.
- Fluid Level Check Procedure: The fluid level must be checked with the vehicle level, the engine idling in Park, and the transmission fluid temperature exactly between 95°F and 113°F (35°C to 45°C). The check is done by removing a standpipe plug from the bottom of the pan. Removing the plug with the engine off will result in a severely under-filled unit.
- Exhaust Clearance: The exhaust system (catalytic converter flange and hangers) must be loosened or partially removed to gain clearance on the CT4 during removal and installation.
Required Parts and Special Tools
- Mobil 1 Synthetic LV ATF HP ('Blue Label') fluid (GM Part No. 19417577)
- New Transmission Filter (GM Part No. 24274616 or TF922) and Pan Gasket (GM Part No. 24260071)
- Front pump / torque converter input seal and Transfer case input shaft seal
- Special Tools: Transmission jack, Engine support fixture, GM-compatible scan tool (GDS2 / Techline Connect), Fluid fill adapter (GM tool DT-51190 or equivalent), and a Fluid transfer pump.
Frequently Asked Questions
Can I use a transmission from a RWD CT4 or a Chevy Colorado?
No. The RWD transmission has a different output shaft and tailhousing. Transmissions from other GM models like the Colorado, even if they are also 8L45s, have different bellhousings, internal components, wiring harnesses, and software that make them physically and electronically incompatible.
Do I have to use the expensive Mobil 1 "Blue Label" fluid?
Yes. Using standard Dexron VI or the older Dexron HP fluid will cause the torque converter shudder to appear or return. The fix outlined in TSB 18-NA-355 specifically requires the new Mobil 1 Synthetic LV ATF HP formula (GM Part No. 19417577) to prevent this issue.
What happens if I don't program the transmission?
The transmission will not shift correctly. Because the TCM does not have the correct flow data for the solenoids in the replacement unit, it will cause harsh shifts, slipping, diagnostic trouble codes, and will likely force the vehicle into a protective limp mode.
What is the expected service life of the 8L45 transmission?
The service life is highly variable but heavily dependent on fluid maintenance. With regular fluid flushes every 30,000 to 45,000 miles using the updated Mobil 1 fluid, many owners report service lives exceeding 150,000 to 180,000 miles. Without proper fluid service, the lifespan can be significantly shortened by torque converter failure.
Where do I find the Transmission Unique Number (TUN)?
You can locate the transmission identification tag on the passenger's side rear of the original transmission case. This tag contains the TUN required for the mandatory Solenoid Characterization Programming.
What special tools are required for installation?
You will need a transmission jack, an engine support fixture, a GM-compatible scan tool capable of SPS2 programming (like GDS2 or Techline Connect), a fluid fill adapter (GM tool DT-51190 or equivalent), and a fluid transfer pump.

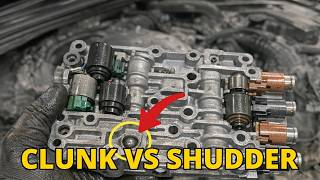

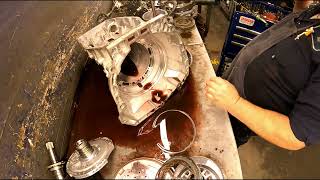

Helpful Videos
Technical Specifications
OEM Part Numbers: 19417577 24274616 TF922 24260071
Model: General Motors Hydra-Matic 8L45; Type: 8-speed automatic; Mounting: Longitudinal; Drivetrain Application: All-Wheel Drive (AWD); Engine Application: 2.0L Turbo (LSY); RPO Code: M5N; Weight: Approx. 245 lbs; Required Fluid: Mobil 1 Synthetic LV ATF HP (Blue Label)
