2012-2013 BMW 335i ZF 8HP45 Transmission: Problems, Identification, and Used Replacement

Part Identification: Confirming the ZF 8HP45

The 2012-2013 BMW 335i with the 3.0L turbocharged, direct-injection N55 engine uses a ZF 8HP45 8-speed automatic transmission. This unit is known for its quick shifts and efficiency, but it is crucial to identify it correctly before purchasing a used replacement. The production years for this transmission family span from 2010 to 2019.

How to Find the ID Tag

The most reliable way to identify the transmission is by its ID tag. This is a green or black/silver metal plate located on the left-hand (driver's side) of the transmission case, near the bottom rear flange. Look for the model code GA8HP45Z or the identifying code 1087 XXX XXX printed on this tag. Seeing this code confirms you have the correct transmission family.

Critical Fitment Checks

Not all 8-speed transmissions from 3-Series cars of this era are the same. A used transmission will only fit if your vehicle matches these exact specifications:

Common Failure Symptoms

When the 8HP45 transmission begins to fail, it can show several distinct symptoms. While some issues can be fixed with software updates or minor parts, others indicate the need for a complete replacement. Look for:

• A "Transmission Malfunction: Drive Moderately" message on the dashboard.
• Harsh, jerky, or delayed gear shifts.
• A noticeable shudder or vibration under light acceleration, which may feel like driving over rumble strips.
• Engine RPMs flaring up between shifts, followed by a hard gear engagement.
• Whining or humming noises from the transmission area.
• The vehicle getting stuck in Park or failing to engage Drive or Reverse.
• Fault codes such as P0740 or P0741 related to the torque converter clutch.

Diagnostic Flowchart

Known Problems, Recalls, and Service Bulletins

This transmission has several well-documented issues that owners and technicians should be aware of. There are no widespread recalls for these problems, but BMW has issued Technical Service Bulletins (TSBs) for some of them.

Mechatronic Connector Sleeve Leak (TSB SI B24 07 12)

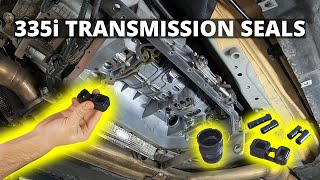

One of the most common issues is a fluid leak from the Mechatronic sealing sleeve. This is a small rubber and plastic part where the main wiring harness connects to the transmission. Over time, its O-rings degrade, allowing transmission fluid to leak out and contaminate the electrical connector. This can cause erratic shifting, communication fault codes, and even put the transmission into limp mode. TSB SI B24 07 12 outlines the approved diagnosis process for ZF transmission leaks, and this sleeve is a replaceable part.

Software and Shifting Updates (TSB SI B24 01 20)

Many owners report harsh shifting or delayed engagement, especially when the vehicle is cold. BMW issued TSB SI B24 01 20 to address these drivability concerns. The fix involves performing software updates to the transmission control module to smooth out the shift logic.

Plastic Oil Pan Warping and Leaks

The transmission oil pan is made of plastic and has the fluid filter and gasket integrated into it. These pans can warp or develop cracks over time from heat cycles, leading to fluid leaks. Because the filter is built-in, the entire pan assembly must be replaced during a fluid service or when fixing a leak.

Torque Converter Lock-Up Clutch Failure

On higher-mileage units, the clutch inside the torque converter can fail. This typically causes a distinct shuddering or vibration, especially under light throttle at highway speeds. If not addressed, debris from the failing clutch can circulate through the transmission and cause more severe damage. This failure usually requires replacing the torque converter and thoroughly flushing the transmission and cooler lines.

Internal Valve Body / Solenoid Failure

The Mechatronic unit, which is the transmission's internal computer and valve body, can suffer from internal cross-leaks or solenoid failures. Solenoids may wear out or stick, causing harsh downshifts, delayed engagement, or inconsistent shifting. In many cases, this requires a complex and expensive repair or replacement of the Mechatronic unit itself.

Oil Cooler Line O-Ring Leak

The O-rings that seal the external fluid cooler lines to the transmission case are known to degrade and leak over time. Replacing these O-rings is a minor repair but crucial to prevent fluid loss.

What Fails at Every Mileage Band

Under 60,000 Miles

Transmissions in this range are generally healthy but can suffer from software glitches causing harsh or delayed shifts. Leaks from the Mechatronic connector sleeve and early failure of the plastic transmission oil pan are also possible. In rare cases, premature Mechatronic (valve body) failure can occur.

• ✓Do during install (recommended): Inspect and consider replacing the Mechatronic connector sleeve and seal as a low-cost preventative measure.
• ✓Do during install (required): Always use a new oil pan/filter assembly with new single-use aluminum bolts.
• ✓Do during install (required): Ensure the latest transmission software is installed and perform a full adaptation reset.

60,000 - 100,000 Miles

At this mileage, you may notice shuddering under light throttle (especially between 1000-2000 RPM on a slight incline), which is often related to fluid breakdown or early torque converter lock-up clutch wear. Increased harshness in shifts when cold indicates fluid degradation. Leaks from the plastic oil pan, Mechatronic connector sleeve, and oil cooler line O-rings become common.

• ✓Do during install (required): Complete fluid and filter (pan) service using ZF Lifeguard 8, Shell L12108, or BMW ATF 3+.
• ✓Do during install (required): Replace oil cooler line O-rings.
• ✓Cheap insurance while the engine is out: Replace the Mechatronic connector sleeve and the four Mechatronic tube seals inside the transmission.
• ✓Cheap insurance while the engine is out: Inspect and likely replace the driveshaft flex disc (guibo), as it can cause shifting clunks often misdiagnosed as internal transmission failure.

100,000 - 150,000 Miles

Failures become more severe in this band. Torque converter lock-up clutch failure is common, causing significant shudder, RPM fluctuations, and fault codes (P0740, P0741). Mechatronic and solenoid failures lead to harsh shifts and limp mode. Internal clutch pack wear (especially the 'E' clutch) causes slipping, and internal seal leaks within the valve body cause pressure loss.

• ✓Do during install (required): Perform a complete fluid and filter service with a new pan and bolts.
• ✓Do during install (required): Thoroughly flush the external transmission cooler and lines to remove any debris from the previous unit's failure.
• ✓Do during install (recommended): Assume the torque converter has significant wear. It is highly recommended to replace it during the transmission swap to prevent shudder and future failure.
• ✓Cheap insurance while the engine is out: Overhaul or replace the Mechatronic unit (solenoids and seals) as a critical 'while you're in there' task. At a minimum, replace all rubber seals (connector sleeve, tube seals, adapter seal).

Over 150,000 Miles

There is an increased likelihood of hard part failures, such as internal clutch packs ('A', 'D', 'E' clutches) and bushings, due to accumulated wear and tear. Complete Mechatronic unit failure is common if not previously serviced. Torque converter failure is highly probable if it is the original unit. Wear in the valve body bores themselves may require a remanufactured valve body.

• ✓Do during install (required): A full fluid/filter service and cooler flush are non-negotiable.
• ✓Do during install (required): If installing a high-mileage used unit, it is almost mandatory to replace the torque converter, all Mechatronic seals and solenoids, and the internal plastic/rubber seals before installation.
• ✓Do during install (recommended): A used transmission in this mileage band is a significant gamble. A professional rebuild or a verified low-mileage unit is a much safer investment.

Real Owner Experiences

Repair or Replace?

Deciding whether to repair your current transmission or replace it entirely depends on the specific failure and the overall health of the unit.

When Repair Makes Sense

• Mechatronic Connector Sleeve Leak: This is a common and relatively minor leak. Repair is almost always the correct choice if the transmission is otherwise functioning correctly. The typical repair cost is $700 - $1,500, primarily for the labor to access the sleeve.
• Mechatronic / Valve Body / Solenoid Failure: If shifting issues are isolated to the valve body and there is no evidence of widespread mechanical failure (like metal debris in the pan), replacing the Mechatronic unit can be a viable repair. A remanufactured valve body can cost around $400 - $1,500 for the part. The typical total repair cost is $1,800 - $2,800. This requires diagnostics to confirm the fault is not in the clutches or torque converter.
• Torque Converter Failure: If symptoms like shuddering or RPM fluctuation are confirmed to be the torque converter and not the transmission itself, replacing it makes sense. A new OEM converter can cost over $2,800 for the part alone. The typical total repair cost is $1,500 - $3,500. This repair still requires removing the transmission, so labor is significant. It only makes sense if the transmission is known to be healthy and free of debris from the converter failure.

When Replacement is Smarter

Replacement is the better option when there is evidence of internal mechanical failure, such as significant metal debris in the oil pan, multiple gear failures, or catastrophic damage. In high-mileage units, the cumulative wear on clutches and other internal parts often means that repairing one major component will soon be followed by another failure. Given the high labor cost to remove and reinstall the transmission, a complete used or remanufactured unit is often more cost-effective in the long run for major failures.

Questions to Ask Your Installer

Before handing over your vehicle, ask your mechanic these critical questions:

• Are you experienced with the ZF 8HP transmission specifically, not just BMWs in general?
• Do you have the tools and software (like ISTA) to perform the mandatory EGS ISN reset (virginization) on a used transmission, or will this need to be outsourced?
• What is your process for swapping my original Mechatronic unit into the replacement transmission if the used one cannot be programmed?
• How do you ensure the torque converter is fully seated in the transmission pump before installation?
• What is your procedure for the fluid fill and level check, specifically regarding the required temperature window (30°C-50°C)?
• Will you be replacing the single-use aluminum pan bolts and torquing them to the correct spec (10 Nm) in the proper sequence?
• Does your quote include flushing the external transmission cooler and lines to prevent contamination?
• Does the quote include all necessary consumables like a new pan/filter assembly, fluid, and relevant seals?

Replacement Cost

The cost to replace a ZF 8HP45 transmission varies significantly based on the type of replacement unit you choose. Labor at a professional shop is also a major expense, typically taking 6-9 hours and costing between $900 and $1,800.

Installation and Programming: What to Know

Replacing this transmission is an expert-level job that involves several critical steps beyond just mechanical work. Failure to follow these procedures will result in a non-functional vehicle. The DIY difficulty is rated as Expert.

Security Programming is Not Optional

The transmission contains an integrated control module called the EGS, which is part of the Mechatronic unit. This module is electronically locked to the original car's anti-theft system (EWS4). Simply installing a used transmission will cause the car to not start or shift out of Park.

Special Tools and Procedures

A successful installation requires specific tools and strict adherence to ZF's procedures.

• Fluid Level Check: The final fluid level must be set while the engine is running and the transmission fluid is strictly between 30°C and 50°C (86°F to 122°F). Never open the fill plug with the engine off. An incorrect fluid level will cause severe fluid starvation and damage.
• Special Tools: A professional-grade fluid transfer pump, a diagnostic scan tool (e.g., BMW ISTA, INPA) capable of reading real-time fluid temperature, Torx and E-Torx socket sets (including T40), an engine support bar, and torque wrenches are required.
• Torque Converter Seating: The torque converter must be fully seated into the transmission's front pump before installation. You should feel it drop into place three distinct times (three clicks). Failure to do this will crush the internal oil pump when the engine is bolted on.
• Pan Bolt Torque Sequence: Plastic oil pan bolts are fragile, single-use aluminum, and must be torqued in a specific sequence to exactly 10 Nm. Reusing them leads to broken bolts or fluid leaks.
• Engine Alignment Dowels: Ensure alignment dowels are correctly positioned and not doubled up, which causes misalignment and severe vibrations.
• Harness Compatibility: Ensure the connector sleeve is clean, properly seated, and the locking tab is fully engaged to prevent leaks and poor electrical connection.

Included and Excluded Parts

A used transmission assembly typically includes the core components but omits bolt-on accessories. Per ARA/URG standards, expect to receive:

• The transmission case and all internal lubricated parts.
• The rear extension/tail housing.
• The transmission oil pan.
• The torque converter.
• The valve body and internal solenoids (Mechatronic unit).

Parts that are not included and must be transferred from your old unit or replaced new include:

• External sensors and exterior wiring harness.
• The shifter assembly and mechanical linkage/cables.
• The engine flexplate/flywheel.
• External fluid cooler lines.
• The driveshaft and mounting hardware.

Freight Shipping and Delivery Reality

When ordering a used ZF 8HP45 transmission, it will not arrive in a standard cardboard box. This assembly weighs approximately 170 lbs and measures roughly 27" x 18" x 18" before crating. Because of its size and weight, it ships as Less-Than-Truckload (LTL) freight on a wooden pallet.

You must ensure your delivery location can accommodate a freight truck. If delivering to a residential address or a shop without a loading dock, you will need to request a liftgate service. Always inspect the transmission carefully while it is still on the pallet before signing the delivery receipt. Look for any damage to the plastic oil pan or the delicate electrical connector sleeve that may have occurred during transit.
