2016-2020 Cadillac CT6 Transfer Case Bracket: Preventing 'Service AWD' Errors
This small, often overlooked bracket is critical for protecting the brain of your All-Wheel Drive system; a failure here can lead to phantom electrical issues and costly repairs.
- The primary role of this bracket is to protect the expensive Transfer Case Control Module (TCCM) from vibration.
- Symptoms of a failed bracket include rattling noises and intermittent 'Service AWD' warning lights caused by a loose electrical connection.
- There are no specific recalls for this bracket, but ensuring the TCCM is secure can help prevent known electronic issues in the CT6's AWD system.
- When buying a used bracket, visually inspect it for cracks, bends, and severe corrosion, as specific part numbers are not readily available.
Symptoms of a Failing Transfer Case Control Module Bracket
A failing bracket itself will not trigger a check engine light. Instead, it creates mechanical problems that lead to electronic symptoms. The signs of a bad bracket are often mistaken for a more complex failure of the control module it holds.
- Rattling or Clunking Noises: The most direct symptom of a broken or loose bracket is a metallic rattling or light clunking sound coming from underneath the center of the vehicle. This noise is often most noticeable when driving over bumps or on rough roads as the unsecured module and bracket pieces move around.
- Intermittent "Service AWD" Light: This is a very common secondary symptom. As the loose module vibrates, its electrical connector can momentarily lose contact. This interruption sends a fault signal to the main computer, triggering the "Service All Wheel Drive System 🎬 See how to diagnose AWD system fault codes" message on the driver information center. The light may turn off after restarting the car, only to reappear randomly.
- AWD System Malfunctions: In more severe cases, the vibrations can cause permanent damage to the TCCM's internal circuit board. This can lead to symptoms of a fully failed module, such as the AWD system being completely disabled (stuck in 2WD 🎬 Watch: How to fix GM AWD system failures), hesitation during acceleration, or grinding noises as the transfer case attempts to engage incorrectly.
Buying a Used Transfer Case Control Module Bracket
A used OEM bracket is an excellent choice for this part, as it is a simple structural component. A recycled bracket from a low-mileage, non-corroded vehicle is functionally identical to a new one at a fraction of the price. Aftermarket options are generally not available for such specific hardware.
Compatibility Warning: This bracket is specific to 2016-2020 Cadillac CT6 models equipped with All-Wheel Drive (AWD). It will not fit RWD models. Be aware that part numbers for this specific bracket are not widely published; some databases incorrectly list part numbers for the engine control module bracket (23433366) or the entire front suspension cradle (84304646). Always verify you are buying the correct part by visually matching your original bracket to the photos in the listing.
What to Inspect Before You Buy:
- Check for Cracks: Carefully examine the area around all mounting holes and bends in the bracket. These are high-stress points where hairline cracks can form. A cracked bracket will fail completely under normal driving vibrations.
- Look for Bends or Warping: Lay the bracket on a flat surface. It should sit flush with no significant rocking or twisting. A bent bracket may be difficult to install and can put stress on the control module.
- Inspect for Corrosion: Surface rust is common on used steel parts, but you should reject any bracket with deep, flaking rust or corrosion that has eaten away at the metal, especially around the mounting points.
- Confirm All Mounting Points are Intact: Ensure none of the bolt holes are stripped, enlarged, or broken. The bracket must be able to hold the module securely.
Known Issues, TSBs, and Recalls
As of mid-2026, there are no specific recalls or Technical Service Bulletins (TSBs) from GM for the transfer case control module bracket itself. However, several bulletins exist for related AWD system components, which highlights the importance of ensuring the module is securely mounted.

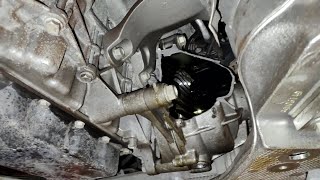

- TSB #21-NA-230: Addresses customer complaints of whining, whirring, or groaning noises from the front of the vehicle that can be related to the transfer case. 🎬 Watch: Cadillac CT6 front differential and driveshaft replacement A loose module could potentially cause similar sounds.
- TSB PIP5805A / PIE0628: Pertains to a shudder or stuttering feeling during acceleration. The diagnostic procedure often starts with a transfer case fluid change and a TCCM relearn procedure, underscoring the sensitivity of the electronic controls.
- TSB 18-NA-007: While for the Rear Differential Control Module (RDCM), this bulletin notes that corrosion on the module and its connector can cause "Service AWD" lights and communication loss. This shows a precedent for module failures due to environmental exposure, a risk that increases if a bracket fails and leaves a module vulnerable.
Cost Comparison for Replacement
Replacing a damaged bracket is an inexpensive repair that can prevent the failure of the much more expensive control module or transfer case assembly.
| Part or Service | Estimated Cost |
|---|---|
| New OEM Bracket | $40 - $90 (if available separately) |
| Used OEM Bracket | $25 - $75 |
| New Aftermarket Bracket | Not Generally Available |
| Shop Labor (Bracket Only) | $60 - $120 |
| For Comparison: New TCCM | $400 - $600+ (part and labor) |
| For Comparison: Transfer Case Rebuild/Replacement | $2,000 - $5,000+ |
Installation Overview & Difficulty
- Difficulty: 2 out of 5
- Estimated Time: 0.5 - 1.0 hours
- DIY Feasible: Yes, for those comfortable working safely under a vehicle.
The replacement process is straightforward. The vehicle must be safely lifted and supported on jack stands. The TCCM is typically located on the side of the transfer case/transmission assembly. The process involves disconnecting the vehicle's battery, unplugging the module's electrical connector, unbolting the old bracket and module, swapping the module onto the new bracket, and reinstalling.
Pro Tip: After reconnecting the TCCM, perform a simple relearn procedure. Turn the ignition to the 'ON' position (without starting the engine) for 30-60 seconds. Then turn it off for 30-60 seconds. This allows the system to re-establish communication with the module before you start the engine.
Frequently Asked Questions (FAQ)
Do I need to reprogram the vehicle after replacing just the bracket?
No. The bracket is a purely mechanical part. You are not changing the electronic module itself, so no programming is required. However, performing the simple key-on/key-off relearn procedure mentioned above is good practice after disconnecting any module.
Can a broken bracket cause my AWD to stop working?
Yes, indirectly. If the broken bracket allows the Transfer Case Control Module to be damaged from vibration or if the electrical connector comes loose, the system will default to a fail-safe mode, disabling the AWD and illuminating a warning light.
Is this bracket the same for the 3.0L Turbo and 3.6L V6 engines?
Yes, as long as the vehicle is All-Wheel Drive, the transfer case and its related components are generally the same regardless of the V6 engine option. The key factor is the AWD system, not the engine.
My mechanic says I need a whole new transfer case. Could it just be the bracket?
It's possible, but less likely. If you only have a rattling noise, a visual inspection of the bracket should be your first step. However, if you are experiencing grinding noises, severe shudders, or the vehicle is unable to move, the problem is likely internal to the transfer case itself. A broken bracket is a cause of future problems, not typically the result of an existing internal failure.
Helpful Videos
Technical Specifications
OEM Part Numbers: 23389706 23433366 (Incorrect - Engine Control Module Bracket) 84304646 (Incorrect - Suspension Cross-Member)
Material: Typically stamped steel or aluminum. Fits 2016-2020 Cadillac CT6 with All-Wheel Drive (AWD) only.
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
