2022-2026 Acura MDX Transfer Case: Investigating Sudden AWD Failures
A deep dive into the known spline failures causing unexpected loss of all-wheel drive, what symptoms to watch for, and how to choose a reliable replacement part.
- A federal investigation (NHTSA DP26001) is underway for sudden transfer case spline failure in 2022-2023 models, causing an unexpected loss of AWD.
- The most common failure symptom is a sudden shift to FWD, often with no warning light, which can compromise vehicle control.
- When buying a used unit, the most critical inspection is checking the input splines for any signs of wear or shearing.
- This part is only for 3.5L V6 models and is not compatible with the 3.0L V6 engine in the MDX Type S.
Known Issues: NHTSA Investigation into Spline Failure
Warning: As of March 2026, the National Highway Traffic Safety Administration (NHTSA) is actively investigating an alleged defect in 2022-2023 Acura MDX and 2021-2023 Acura TLX vehicles. The investigation, opened under NHTSA Action Number DP26001, centers on reports of the transfer case splines shearing off where they connect to the transmission.
This failure causes a sudden and complete loss of power to the rear wheels, converting the vehicle to front-wheel drive without warning. According to the petition filed with NHTSA, this can result in a loss of directional control, especially in adverse weather conditions. Acura has not issued a recall or Technical Service Bulletin (TSB) for this specific issue to date.
Symptoms of a Failing Transfer Case
Diagnosing a transfer case issue requires paying close attention to specific noises and behaviors. The symptoms can differ depending on whether it's the common spline failure or a more traditional wear-and-tear issue.
Symptoms of Spline Failure
- Sudden Loss of AWD: The most reported symptom is an abrupt loss of power to the rear wheels. The vehicle will still drive, but only the front wheels will have power. This can be most noticeable when accelerating from a stop in wet or loose-traction conditions, where the front tires may spin excessively.
- Loud "Bang" or "Clunk": Some owners have reported hearing a loud bang from the drivetrain at the moment of failure as the splines shear off.
- No Warning Lights: A critical aspect of this failure is that it often occurs without triggering any check engine or AWD warning lights on the dashboard.
General Failure Symptoms
- Whining, Grinding, or Humming Noises: A continuous whining or humming noise that changes pitch with vehicle speed is a classic sign of internal bearing or gear wear. Grinding sounds, especially when accelerating or turning, can also indicate a serious internal problem.
- Fluid Leaks: Reddish or brown fluid dripping from the area where the transmission meets the front passenger-side axle is a sign of a leaking seal. Low fluid levels will quickly lead to overheating and catastrophic internal damage.
- Vibrations: A new vibration felt through the floor of the vehicle, particularly at certain speeds, can point to a failing transfer case or a related driveshaft issue.
Buying a Used Transfer Case Assembly
Given the high cost of a new OEM unit, a low-mileage used transfer case is an excellent value. 🎬 Check out this video for general Acura MDX fluid maintenance tips. However, due to the known spline issue, careful inspection is crucial.
- Inspect the Input Splines: This is the most important check. Look at the splined shaft that inserts into the transmission. The splines should be sharp, well-defined, and free of any twisting, rounding, or signs of being worn down or sheared off. If the splines look even slightly worn, reject the part.
- Check for Leaks: Thoroughly inspect the areas around the output seals where the front axle and rear driveshaft connect. Any heavy accumulation of oily grime or signs of active dripping indicates the seals will need to be replaced.
- Verify Part Numbers: Ensure the part number on the used unit matches one of the compatible OEM numbers for your vehicle. The latest part number is 29000-61D-080, which supersedes several previous versions.
- Assess Mileage: While the spline failure can happen at any mileage, a lower-mileage part is generally a safer bet. Units from vehicles with under 50,000 miles are preferable.
- Case Integrity: Check the aluminum housing for any cracks, deep gouges, or signs of impact damage from road debris or accidents.
Pro Tip: When replacing the transfer case, it is highly recommended to also replace the axle seals and the O-ring that seals the unit to the transmission to prevent future leaks.
Cost to Replace a 2022-2026 Acura MDX Transfer Case
The cost can vary significantly based on the part source and labor rates. A dealer repair for this issue can be extremely expensive, with some owners reporting quotes over $5,000.
| Part/Service | Estimated Cost |
|---|---|
| New OEM (Dealer) | $1,800 - $2,700 |
| New Aftermarket | Not commonly available |
| Used OEM | $350 - $600 |
| Remanufactured | Not commonly available |
| Shop Labor | $400 - $975 |
Maintenance and Installation Procedures
Proper maintenance is key to the longevity of any transfer case. If you are installing a replacement, follow these critical steps.
Fluid Requirements
- Fluid Type: Acura Genuine Hypoid Gear Oil (HGO-1) or a high-quality full synthetic API GL-5 gear oil in SAE 75W-90 or 75W-85 viscosity.
- Fluid Capacity: Approximately 1.2 pints (0.57 Liters). Fill until fluid begins to seep from the fill hole.

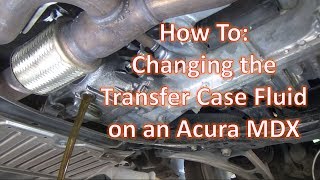

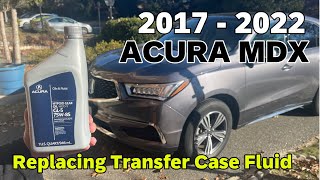

- Service Interval: While not always specified in the main maintenance schedule, changing the transfer case fluid every 30,000 to 50,000 miles is a wise preventative measure. 🎬 Watch this DIY guide for changing your transfer case fluid.
Torque Specifications
- Drain and Fill Plugs: 33-35 lb-ft (45-47 Nm). Always use new crush washers.
- Mounting Bolts: While specific specs for the MDX were not found in search results, similar transfer cases use around 35 lb-ft for the six mounting bolts that attach the unit to the transmission. It is critical to verify the exact spec from a factory service manual.
Frequently Asked Questions (FAQ)
Is the transfer case on the 3.5L MDX the same as the MDX Type S?
No. This transfer case is specifically for the 2022-2026 Acura MDX with the 3.5L V6 engine. It will not fit the Type S models, which use a different 3.0L turbocharged engine and have a distinct powertrain setup.
What is the main cause of the transfer case failure on these MDX models?
The most prominent reported issue, which is currently under NHTSA investigation, is the mechanical shearing of the splines connecting the transfer case to the transmission. This appears to be a potential manufacturing or design defect rather than a problem caused by lack of maintenance.
Can I still drive my MDX if the transfer case fails?
Yes, but with caution. If the common spline failure occurs, your vehicle will operate in front-wheel drive only. While it is mechanically possible to drive, the lack of all-wheel drive can be dangerous in slippery conditions, and the vehicle's handling characteristics will be compromised. It should be repaired as soon as possible.
Is replacing the transfer case a DIY job?
This is an advanced DIY repair. The transfer case is heavy (around 80 lbs) and requires a transmission jack for safe removal and installation. Access is tight, and it involves removing driveshafts and axles. While possible for an experienced home mechanic with the right tools, it is a challenging job that may be best left to a professional.
🎬 See a walkthrough of how to remove and replace a transfer case.Helpful Videos
Technical Specifications
OEM Part Numbers: 29000-61D-080 29000-61D-030 29000-61D-040 29000-61D-050 29000-61D-060 29000-61D-070
Fluid Type: Acura HGO-1 or API GL-5 75W-90 Gear Oil. Capacity: Approx. 1.2 pints (0.57L).
