2024-2026 Cybertruck Trailer Hitch: Early Problems, Inspection, and Replacement Costs

Known Issues & Early Model Problems: 2024-2026 Cybertruck

As a new vehicle, the Cybertruck is still revealing its long-term issues. However, early owners have reported several problems related to the trailer hitch system. These are primarily electrical and software-related, rather than wear and tear.

Electrical & Software Glitches

• No Power to Trailer Connectors: Some owners have experienced a complete lack of power at both the 7-pin and 4-pin trailer sockets. In at least one documented case, this was caused by a loose internal wiring connector behind the bumper that was not fully seated during factory assembly. This connector could be accessed and clicked into place by reaching through an opening on the right side of the bumper.

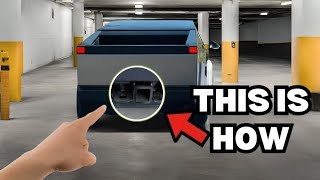

🎬 Watch: How to access the Cybertruck tow hitch
• False Trailer Mode Activation: A few owners have reported their Cybertruck entering 'Trailer Mode' even when nothing is connected to the hitch or electrical plugs. This appears to be a software or sensor glitch that may require a service visit to diagnose.
• Trailer Control Module Failure: In one instance, a trailer warning light that activated with the turn signals was traced to a faulty trailer control module, which was replaced under warranty. This occurred on a truck that had never towed a trailer, indicating the module can fail independently.

Structural Concerns & Load Limits

There has been significant online discussion and controversy regarding the Cybertruck's vertical load limits. The owner's manual initially specified a very low 160 lb vertical load limit for hitch accessories, which caused confusion given the 1,100 lb maximum tongue weight for towing. A Tesla engineer later clarified that the vertical load capacity decreases the farther the load's center of gravity is from the hitch pin, as with a bike or motorcycle carrier. For standard towing, the 1,100 lb tongue weight limit (10% of the 11,000 lb max tow rating) is the correct figure. Extreme, non-scientific stress tests seen online have shown the rear aluminum casting can fracture under vertical loads far exceeding 10,000 lbs, but this is 🎬 See the extreme Cybertruck hitch stress test well beyond any normal use case.

Symptoms of a Failing or Damaged Trailer Hitch

While widespread failures on the new Cybertruck are not yet common, any trailer hitch can be damaged by accidents, overloading, or corrosion. Here’s what to look for:

• Visible Cracks or Bending: Any crack in the welds or bending in the steel components is a sign of serious damage. The hitch should be replaced immediately.
• Electrical Malfunctions: Trailer lights that don't work, work intermittently, or cause errors on the dashboard point to issues with the 7-pin/4-pin connector or the vehicle's trailer module.
• Excessive Rust: While the Cybertruck body is stainless steel, the hitch assembly is made of painted steel and is susceptible to rust. Surface rust is normal, but deep, flaking corrosion can weaken the structure.
• Unusual Noises: Clunking or rattling sounds while towing can indicate that the mounting bolts are loose or that the receiver tube itself is worn or damaged.

Buying a Used 2024-2026 Cybertruck Trailer Hitch

Given the Cybertruck's recent release, most used hitches will come from vehicles involved in collisions. Careful inspection is absolutely critical.

Physical Inspection Checklist

1. Check the Source Vehicle: If possible, find out what kind of accident the donor vehicle was in. A hitch from a rear-ended truck should be avoided at all costs, as it may have hidden stress damage.
2. Inspect All Welds: Closely examine every weld connecting the receiver tube to the main cross-member. Look for hairline cracks, which are a clear sign the hitch has been over-stressed.
3. Examine Mounting Points: The bolt holes where the hitch attaches to the truck's frame should be perfectly round and free of any tearing or deformation. An eBay listing for a used hitch noted that these mounting points were bent and would require repair. This kind of damage indicates a severe impact.
4. Test Fit the Receiver: Bring a standard 2-inch hitch accessory (like a ball mount) with you. It should slide in and out of the receiver tube smoothly with minimal play. If it's too tight or excessively loose, the tube may be deformed.
5. Inspect the Wiring Harness: This is a critical and often overlooked step. Check the 7-pin/4-pin connector for broken plastic, bent or corroded pins, and ensure the wiring harness has not been cut or damaged during removal from the donor vehicle.

Cost Comparison

The Cybertruck hitch is an integral part of the rear structure, making replacement a significant job.

Installation Difficulty: 2024-2026 Cybertruck

• Difficulty Rating: 4 out of 5 (Difficult)
• Estimated Time: 3-5 hours
• DIY Feasible: Not Recommended

Replacing the trailer hitch on a Cybertruck is not a simple bolt-off, bolt-on job. It is integrated with the rear bumper and fascia assembly and bolts to the main rear subframe casting. The process involves removing the plastic rear fascia, disconnecting sensors and wiring, unbolting the factory hitch assembly, and then reversing the process. Due to the complexity, weight of the components, and the need to ensure proper torque on structural bolts, this job is best left to a professional body shop or a Tesla Service Center.
