2013-2024 Ram 'Service Trailer Brake System': Why It's Probably Not the Control Module

The 'Service Trailer Brake System' Warning: The Real Story

If you own a 2013-2018 Ram 1500, 2500, 3500, 4500, 5500, or a 2019-2024 Ram 1500 Classic, you may have encountered the dreaded "Service Trailer Brake System" message on your dashboard. While your first instinct might be to blame the trailer brake control module in the dash, the actual culprit is often much simpler and cheaper to fix. In the vast majority of cases, this error is caused by an issue outside of the module itself.

This guide will walk you through the common symptoms, the most likely causes, and a logical diagnostic process to save you time and money before you decide to replace the control switch.

Symptoms of Trailer Brake Control Failure

While a faulty module is less common, failure can happen. Here are the signs to watch for, which can be caused by the module, wiring, or the trailer itself:

• "Service Trailer Brake System" Message: This is the most common indicator, appearing on the instrument cluster display, often even without a trailer connected.
• "Trailer Disconnected" Message: The system may intermittently think the trailer has been unplugged, even when it is securely connected.
• No Trailer Brake Output: The trailer brakes do not engage at all, either with the truck's brake pedal or the manual slider on the controller.
• Weak or Erratic Braking: The trailer brakes may feel weak even at the highest gain setting, or they may grab and release unpredictably, causing jerky stops.
• ABS and Traction Control Lights: In some cases, a fault in the trailer brake system can trigger other system warnings, like the ABS and traction control lights, and may disable cruise control. This can sometimes be caused by a failing wheel speed sensor, which the system misinterprets as a brake fault.

Known Issues & The Real Culprits

Before you replace any parts, understand that these trucks are very sensitive to the electrical connection with the trailer. Most issues that trigger a service message originate here.

Problem #1: Corroded or Damaged Connectors

The 7-pin trailer connector on the truck's bumper and the corresponding plug on the trailer are exposed to weather, road salt, and dirt. Corrosion on these pins is the single most common cause of trailer brake faults. Even a small amount of corrosion can create high resistance, which the control module interprets as a fault.

Problem #2: Trailer Wiring and Grounding

The second most common cause is a problem with the trailer's wiring itself. A poor ground connection between the trailer frame and the wiring harness is a frequent issue. A frayed or pinched wire can also cause intermittent shorts that lead to errors. Many official service bulletins for similar issues on other truck brands point to trailer-side wiring as the primary problem.

Problem #3: Low Truck Battery Voltage

These Ram trucks are known to exhibit strange electrical behavior when the main vehicle battery is weak or failing. A low battery can cause multiple, unrelated warning messages to appear at once, including for the trailer brake system, air suspension, and electronic braking system. If you're seeing a Christmas tree of lights on your dash, have your battery's health checked before chasing other issues.

Step-by-Step Diagnosis

1. Check Fuses First: Before anything else, check the fuses related to the trailer towing system. They are located in the under-hood fuse box (Power Distribution Center). Key fuses to check are F11 (30A J-Case for the brake module) and F87 (10A for the ITBM module).
2. Test With a Different Trailer: The easiest way to isolate the problem is to hook your truck up to a different trailer that is known to be in good working order. If the error message disappears and the brakes work correctly, the problem is in your trailer's wiring.
3. Inspect and Clean Connectors: As mentioned above, thoroughly inspect and clean both sides of the 7-pin connection. Look for bent or recessed pins inside the truck's socket.
4. Test the 7-Pin Connector: Use a multimeter or a dedicated 7-pin circuit tester to check for proper signals at the truck's connector. With the engine running and a helper pressing the brake pedal, you should see a variable voltage on the brake output pin (it will increase as pedal pressure increases). With the manual slider activated, you should see up to 12 volts. If there is no power on the brake output pin, and the fuses are good, the problem may be the module or the wiring between the module and the connector.

Buying a Used Trailer Brake Control Module

If you've ruled out all other possibilities and need to replace the module, a used OEM part is an excellent, cost-effective option. However, this is a part where you must be extremely careful with compatibility.

• Verify Part Numbers: Start by matching OEM part numbers like 68105206AB, 68105206AC, etc. But do not rely on this alone.
• Inspect Photos Carefully: When buying online, closely examine the photos. Count the buttons and verify that they match your truck's options perfectly.
• Physical Inspection: Check for any signs of damage to the plastic housing, the connectors on the back, and the slider mechanism. The slider should move smoothly with firm detents.
• Why Used OEM is Better: For an integrated electronic part like this, a used OEM module is often more reliable than a new, unproven aftermarket part. There are no well-known, direct-fit aftermarket replacements for the integrated switch itself, only for standalone controllers.

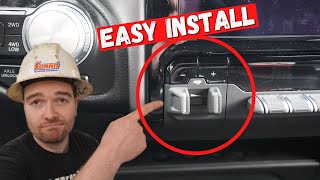

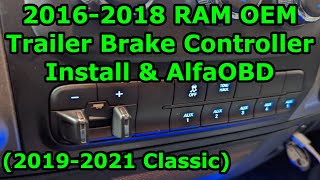

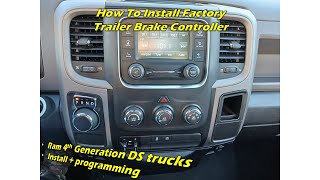

Replacement Procedure (Switch Assembly Only)

Replacing the switch assembly is a straightforward job that most DIYers can handle.

• Difficulty: 2/5
• Time: 30-60 minutes
• Tools: Plastic trim removal tool, Phillips screwdriver.

Walkthrough:

1. Disconnect the battery. This is a recommended safety precaution.
2. Use a plastic trim tool to carefully pry off the large bezel that surrounds the radio and climate controls. It is held in by clips.
3. Disconnect the wiring harnesses plugged into the back of the bezel and set it aside.
4. You will now see the switch bank, held in by four Phillips screws. Remove the screws.
5. Pull the switch bank out, unplug the main connectors from the back, and remove it from the truck.
6. On your workbench, release the plastic tabs holding the faulty brake controller portion into the main switch bank housing and pop it out.
7. Snap the new (or used) controller into the housing, ensuring all tabs click into place.
8. Re-install in the reverse order. Make sure all connectors are securely plugged in before snapping the main bezel back into place.

Cost Comparison

Pricing can vary, but this gives a general idea of the cost for the switch assembly.
