2001-2005 Mazda Miata Temp Control: Diagnosing Failures and Faceplate Variations

Symptoms of a Failing 2001-2005 Miata Temp Control

When the temp control unit in an NB Miata begins to fail, the symptoms are usually straightforward. Because the unit is primarily mechanical, failures are often related to physical components breaking from age and use.

• Unresponsive Levers: You might move a lever for temperature or air direction, but nothing happens. The lever may feel loose or springy. This almost always means the plastic clip holding the control cable on the back of the unit has broken, or the cable has detached from the blend door it operates.
• Inability to Control Temperature: If you can't get hot air, or the air is always hot regardless of the setting, the blend door cable or its connection is likely the problem. Some owners note that even with the system working correctly, the NB Miata's design allows for some heat soak from the heater core, making the cabin feel warm.
• Air Stuck on Certain Vents: Similar to the temperature issue, if you can't switch between the defrost, dash, or floor vents, the mode selector cable or its clips have probably failed.
• Fan Only Works on Some Speeds: While this can sometimes be related to the switch in the control unit, it is more often caused by a failed blower motor resistor, which is a separate part located in the HVAC housing.
• No Backlighting: The small bulbs that illuminate the faceplate for night driving can burn out. This doesn't affect the unit's function but makes it difficult to see the controls at night. These bulbs can be replaced without replacing the entire unit.
• Physically Broken Knobs or Levers: The plastic knobs and sliders can become brittle and crack or break off completely.

Buyer's Guide: What to Check on a Used Miata Temp Control

Purchasing a used OEM temp control unit is a cost-effective solution, as new units can be expensive and aftermarket options are scarce. Here’s what to inspect to ensure you get a good part.

1. Verify Faceplate Color: Black vs. Silver

This is the most critical compatibility check. While the underlying unit is the same for all 2001-2005 Miatas, Mazda used two different faceplate colors:

• Black Faceplate: Standard on most base and LS models.
• Silver Faceplate: Found on certain Special Edition (SE), Shinsen, and other specific trims.

2. Inspect the Rear Cable Clips

This is the most common failure point. Turn the unit over and look at the three locations where the control cables clip into the white plastic housing. These clips are notorious for becoming brittle and snapping. Ensure all three mounting points are intact and free of cracks. A unit with broken clips is no better than the one you are replacing.

3. Check the Knobs and Levers

Wiggle the fan speed knob and slide the three levers. They should move smoothly with some resistance and not feel loose or sloppy. Make sure none of the plastic lever tips or the fan knob are cracked or missing.

4. Look for Signs of Damage

Perform a quick visual inspection for any signs of liquid spills, which could corrode the internal electrical contacts for the fan switch, or any significant cracks in the main housing.

Known Issues, Recalls, and TSBs

For the 2001-2003 Mazda Miata, there are no recalls or Technical Service Bulletins (TSBs) directly related to the HVAC temperature control unit itself. Most issues are related to wear and tear of the mechanical components.

• Recalls: Searches of the NHTSA database show recalls for this period concerning fog lights, emissions-related PCM reprogramming, and other issues, but none involve the climate control panel.
• Common Problem (Not a Defect): A widely discussed issue among owners is the constant flow of hot coolant to the heater core, which can radiate heat into the cabin even when the temperature is set to full cold. This is a design characteristic, not a failure of the control unit, though a poorly sealing blend door (controlled by the temp control unit) can make it worse.

Cost of Replacement

Replacing the temp control unit is very budget-friendly if you opt for a used part and perform the labor yourself.

Replacement Difficulty: 2/5

Replacing the temp control unit is a straightforward DIY job that most owners can complete with basic tools. No specialized knowledge is required.

• Difficulty Rating: 2 out of 5
• Estimated Time: 0.5 - 1 hour
• Tools Needed: Phillips screwdriver, trim removal tool (or a flathead screwdriver wrapped in tape).

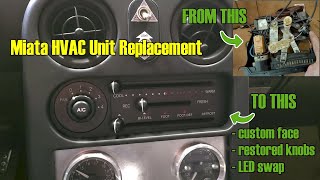

Brief Overview of the Job:

1. Disconnect the negative battery terminal.
2. Remove the center console trim (the "tombstone") that surrounds the radio and HVAC controls. This usually involves removing a few screws and carefully prying the trim off.
3. Unscrew the four screws holding the temp control unit in place.
4. Pull the unit out and disconnect the electrical connector for the fan switch.
5. Carefully unclip the three mechanical cables from the back of the unit. Pay attention to how they are routed.
6. Installation is the reverse of removal. Before reassembling the dash, connect the new unit and test all levers and the fan to ensure everything works correctly.
