2002-2008 Lexus SC430 Temp Control: Screen Failures and Compatibility Guide
This guide covers the common LCD screen and button failures on the SC430 climate control unit and explains the critical differences between model years and navigation-equipped cars.
- Compatibility is critical and complex; units are NOT interchangeable across all years. 2002-2005 and 2006-2010 are different electronic groups.
- The most common failures are a blank/fading LCD screen and unresponsive buttons due to an internal circuit film failure.
- Used OEM parts are the most common replacement, but consider a professional repair service that installs an upgraded LCD screen and offers a warranty.
- Replacement is a simple DIY job, requiring only a plastic trim tool to pop the unit out of the dash.
Variant & Compatibility Warnings: A Critical Guide
The single most important factor when replacing the temp control unit in a 2002-2008 Lexus SC430 is understanding the vehicle's year and whether it has the factory navigation system. Failure to match the part correctly will result in a non-functional unit.
Warning: The temp control units are NOT interchangeable between all years. Sellers who claim a unit fits all 2002-2010 models are incorrect. The internal circuit boards are different, and using the wrong one can lead to a blank screen, non-working buttons, or complete failure to operate.
Year-Specific Compatibility
There are distinct versions of the climate control unit based on model year ranges. While faceplates may be interchangeable, the internal electronics are not. The primary split is:
- 2002-2005 Models: These use a specific circuit board. A common part number for this range is 55900-24260.
- 2006-2010 Models: These use a different, non-interchangeable circuit board. A common part number for this later range is 55900-24390.
Navigation vs. Non-Navigation
All US-market Lexus SC430 models were equipped with the factory Navigation/Electro Multi-Vision (EMV) screen. The temp control unit is the panel located directly below this screen. Therefore, you must source a replacement part specified for navigation-equipped vehicles. The part numbers listed in this guide, such as 55900-24260 and 55902-24060, are for these navigation models. Some repair shops offer faceplates for non-navigation setups, but this is typically for custom aftermarket stereo installations where the factory screen is removed.
Common Symptoms of Failure
Failures in the SC430 temp control unit are common and usually related to the display or button functionality.
- Fading or Blank LCD Screen: The most frequent issue is the LCD screen becoming dim, showing missing segments (dead pixels), or failing completely. This can make it impossible to read temperature settings or fan speed.
- Unresponsive Buttons: Buttons for temperature adjustment, fan speed, or the convertible top may stop working. This is often caused by the failure of a fragile internal circuit film that connects the buttons to the main board.
- A/C or Heat Inoperative: The A/C may not turn on, or the system may blow air that doesn't match the temperature setting. While this can be a control unit problem, it's important to first rule out other HVAC system issues like low refrigerant or a bad compressor.
- Sticky or Frozen Buttons: The convertible top open/close switch or other buttons can become physically stuck or hard to press, sometimes due to cleaners being sprayed on the dash.
- Cracked Faceplate: The plastic faceplate can become brittle from heat and age, leading to cracks, especially during removal for repairs or stereo installation.
Buying a Used Temp Control Unit
Due to the high cost of a new OEM unit, a used part is often the most practical solution. However, careful inspection is crucial.
What to Check Before You Buy:
- Verify the Part Number: This is the most critical step. Match the part number from your original unit exactly. Pay close attention to the year splits (2002-2005 vs. 2006-2010). Do not trust a listing that claims universal fitment.
- Ask for a Powered-On Photo: If possible, ask the seller for a picture of the unit powered on. This is the only way to verify the LCD screen is fully functional, with no dim spots or missing pixels.
- Inspect Button Condition: Look for excessive wear on the button graphics. While cosmetic, it can indicate heavy use. Check for any signs of sticky residue from spills.
- Examine the Faceplate and Connectors: Check for cracks in the plastic housing. Ensure the electrical connectors on the back are clean, with no bent or corroded pins.
- Consider a Repaired or Rebuilt Unit: Several electronics repair companies specialize in these SC430 units. They often replace the failure-prone LCD screen with a new, improved version and may offer a warranty, providing more peace of mind than a standard used part.
Cost Comparison
Prices can vary significantly based on the source and condition of the part.
| Part Source | Estimated Cost |
|---|---|
| New OEM | $1,600 - $2,300+ |
| New Aftermarket | Not commonly available |
| Used OEM | $200 - $600 |
| Remanufactured / Repaired | $140+ (for repair service) |
| Shop Labor | $100 - $200 |
Replacement Overview
Replacing the temp control unit is a straightforward DIY task for those comfortable with basic interior work.
- Difficulty: 2/5
- Estimated Time: 0.5 hours
- Tools Needed: Plastic trim removal tool, Phillips screwdriver.
Procedure Summary:
- Ensure the sliding door for the radio/CD changer is open.
- Using a plastic trim removal tool, carefully pry around the edges of the temp control unit. It is held in by clips and will pop out.
- Once loose, pull the unit forward and disconnect the electrical connectors from the back.
- Connect the new unit and test its function before snapping it back into the dashboard.
Pro Tip: The plastic trim can be brittle. Use steady, even pressure with a proper trim tool to avoid cracking the faceplate or surrounding dashboard pieces.
Known Issues, TSBs, and Recalls
There are no specific recalls or Technical Service Bulletins (TSBs) from Lexus for widespread failure of the temp control unit itself. However, the 2002-2008 SC430 was subject to multiple major recalls related to the Takata airbag inflators, which are located in the dashboard. While unrelated to the climate control's function, be aware that dashboard work may have been performed on the vehicle for these recalls.
Technical Specifications & Part Numbers
Always verify the part number on your specific unit before ordering a replacement.
| Model Years | Part Number | Notes |
|---|---|---|
| 2002-2005 | 55900-24260 | For models with Navigation/EMV. |
| 2002-2009 | 55902-24060 | Panel Sub-Assembly, for Navigation/EMV models. |
| 2006-2010 | 55900-24390 | For later models with Navigation/EMV. Not interchangeable with earlier units. |
Frequently Asked Questions (FAQ)
Can I fix the blank screen on my own?
Yes, if you have electronics and soldering experience. The most common cause is a failed LCD panel. Replacement LCD screens are available from specialty vendors, and the repair involves disassembling the unit, de-soldering the old screen, and soldering the new one in place. However, the internal plastic components are brittle and can break easily during disassembly.
Will a unit from a 2007 SC430 work in my 2004 model?
No, it will not function correctly. The internal circuit boards are different between the 2002-2005 and 2006-2010 model year ranges. You must use a unit from the correct year group for your vehicle.
My temperature buttons don't work. Is that the whole unit or just the button?
This is almost always an issue with the climate control unit itself, not just the external button. A fragile ribbon circuit behind the faceplate is a common failure point, and it is not sold separately by Lexus. The entire unit typically needs to be repaired or replaced.
Do I need to program a replacement temp control unit?
No, programming is not required. As long as you install a compatible, functional unit from the correct model year range, it is a plug-and-play installation.

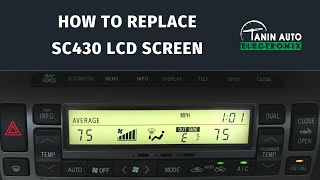

Helpful Videos
Technical Specifications
OEM Part Numbers: 55900-24260 55902-24050 55902-24060 55900-24390
Designed for vehicles with the factory Electro Multi-Vision (EMV) navigation system.
