Tesla Model 3/Y & Audi Q3 Tail Lights: Decoding Part Differences, Recalls, and Repairs

Part Incompatibility Warning: Tesla vs. Audi

Part 1: 2017-2023 Tesla Model 3 & 2020-2023 Model Y Tail Light

This section focuses on the driver-side (left) outer quarter panel-mounted tail light for the Tesla Model 3 and Model Y. These two models share the same tail light assembly. The primary OEM part numbers for this component include 1077397-00-F, 1077397-00-G, and 1077397-00-H.

Known Issues, Recalls, and TSBs

NHTSA Recall: Intermittent Tail Light Failure

In November 2022, Tesla issued a recall for over 321,000 vehicles, including certain 2023 Model 3 and 2020-2023 Model Y cars, due to a firmware issue. In rare cases, a software anomaly could cause false fault detections during the vehicle's wake-up process, leading to one or both tail lights not illuminating. This issue did not affect the brake lights, reverse lights, or turn signals. The problem was resolved with an over-the-air (OTA) software update (version 2022.40.4.1 or later) 🎬 Watch: A detailed explanation of this critical Tesla recall, and no physical part replacement is required. Owners can check their vehicle's software version on the touchscreen to ensure the update has been applied.

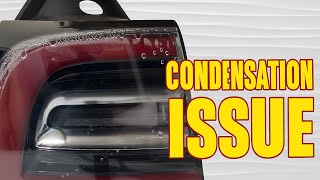

Common Problem: Condensation and Water Ingress

A frequent complaint among owners is the accumulation of moisture or condensation inside the tail light housing. While minor condensation can be normal with temperature changes, excessive water buildup can lead to corrosion of the internal electronics and premature failure of the LED elements. Early models sometimes had a sticker applied to help with this, but persistent water entry often points to a bad seal on the housing itself.

Symptoms of Failure

• Dim or Non-Functioning LEDs: Sections of the LED light strip may appear dim or fail to light up entirely.
• Visible Moisture: Obvious water droplets, fogging, or a "fish tank" appearance inside the lens.
• Dashboard Warning Lights: The vehicle may display a fault message indicating a problem with the exterior lighting.
• Intermittent Operation: The light may work sporadically, often tied to the firmware issue addressed by the recall.

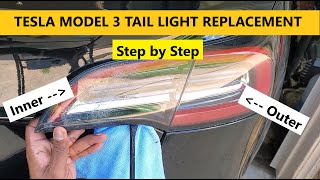

DIY Replacement Guide (Model 3)

Replacing the outer tail light on a Model 3 is a straightforward DIY task. The process for a Model Y is similar but may require removing more trim pieces.

Difficulty: 2/5
Estimated Time: 0.5 hours

Tools Needed:

• 8mm socket or wrench (a stubby ratchet is helpful)
• Plastic trim removal tool
• Small flathead screwdriver (for electrical connector)

Step-by-Step Process:

1. Access the Trunk: Open the trunk and locate the trim panel behind the tail light.
2. Remove Trim: Remove the plastic trunk sill plate and any retaining clips holding the side carpet liner. Gently pull back the liner to expose the back of the tail light assembly.
3. Disconnect Electrical Connector: Locate the single wiring harness plugged into the light. Pull back the red locking tab, then press the release and pull the connector straight out.
4. Remove Nuts: Use the 8mm socket to remove the two nuts holding the tail light studs to the vehicle body. Be careful not to drop them into the body cavity.
5. Remove the Light: The tail light is now held in by alignment pins. Gently pull the assembly straight back, away from the car, to release it.
6. Installation: Installation is the reverse of removal. Position the new light, hand-tighten the nuts, reconnect the electrical harness (ensure the red tab clicks), and test the light's function before reinstalling all trim pieces.

Part 2: 2019-2025 Audi Q3 Tail Light

This section covers the tail light for the second-generation Audi Q3. Unlike the Tesla, the Q3 has four separate tail light components: an inner and outer section on both the left and right sides. This guide focuses on the main outer tail light mounted to the quarter panel.

Known Issues, Recalls, and TSBs

Recall: Brake Lights (2016-2017 Models)

While this recall affects the previous generation, it's worth noting. Certain 2016-2017 Q3s were recalled because the brake lights would not illuminate if the emergency parking brake was activated while moving. This was a software issue fixed by dealers and does not apply to the 2019+ models covered here.

Technical Service Bulletins (TSBs)

• TSB A9423672071954_1: This bulletin provides dealers with information on how to handle cases where foreign objects are found inside a headlight or tail light assembly.
• TSB 2058420: This TSB addresses procedures for when a tail light or front indicator in the bumper is cracked, broken, leaks, or does not work.

Symptoms of Failure

• LED Failure: Individual LEDs or entire sections of the dynamic turn signal or brake light may stop working.
• Cracked Lens: Physical damage from minor impacts can compromise the seal and allow water inside.
• Error Codes: The vehicle's driver information system may report a lighting fault.

DIY Replacement Guide

Replacing the outer tail light on an Audi Q3 is also a manageable DIY job.

Difficulty: 2/5
Estimated Time: 0.5 hours

Tools Needed:

• 10mm socket or hex wrench
• Plastic trim removal tool
• Small flathead screwdriver

Step-by-Step Process:

1. Access the Trunk: Open the rear hatch. Behind the tail light, there will be a small access cover or panel in the cargo area trim.
2. Remove Access Panel: Use a trim tool to carefully pry open the access panel.
3. Loosen Retainers: Inside, you will find plastic nuts or bolts (typically three) holding the assembly. Use a 10mm socket to remove them.
4. Disconnect and Remove: Gently pull the tail light assembly rearward. It will be attached by one electrical connector. Disconnect it by pressing the release tab.
5. Installation: Connect the new light and test it before seating it. Guide the mounting studs into the holes and gently push the assembly into place. Hand-tighten the retainers from inside the trunk and replace the access cover.

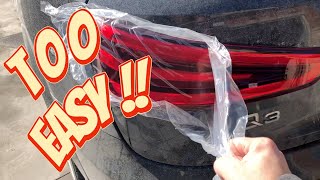

🎬 Watch: Step-by-step Audi Q3 tail light replacement walkthrough

Buying a Used Tail Light: What to Check

Purchasing a used OEM tail light is a great way to save money over a new dealer part. Because these are genuine factory parts, they guarantee perfect fitment and electrical compatibility, unlike some cheap aftermarket alternatives. Here’s what to inspect:

• Check the Lens: Inspect carefully for any cracks, even hairline fractures. A cracked lens will leak water, leading to failure. Scratches can often be polished out, but cracks are fatal.
• Look for Moisture: Check for any signs of a water line, fogging, or dried mineral deposits on the inside of the lens. This indicates the seal has already failed.
• Inspect Mounting Tabs: All mounting tabs and studs should be intact. Broken tabs are a major red flag and will prevent the light from seating securely, leading to vibration and water leaks.
• Verify the Part Number: Always match the part number from your original light to the used one.

Cost Comparison

Prices are estimates and can vary based on supplier, condition, and location. Shop labor for installation is typically 0.5-1.0 hours, costing between $75 - $150.

Frequently Asked Questions (FAQ)
