2014-2021 Mazda 6 Tail Light: Decoding Halogen, LED, and Signature Versions

Variant Guide: The Key to Compatibility

The single most important factor when replacing a 2014-2021 Mazda 6 tail light is identifying the correct version for your specific vehicle. Using the wrong type can result in connectors that don't match, features that don't work, and warning lights on the dashboard. Before ordering, carefully inspect your existing lights.

Location: Outer vs. Inner

The Mazda 6 uses a four-piece tail light system. The larger 'outer' lamps are mounted on the body's quarter panels, while the smaller 'inner' lamps are mounted on the trunk lid. These parts are not interchangeable. An outer lamp will not fit the trunk lid opening, and vice-versa. Always confirm which location you need to replace.

2014-2017 Models: Halogen vs. LED

For the pre-facelift models, the primary difference was between lighting technology. Base trim levels (like Sport) were typically equipped with Halogen tail lights, which use incandescent bulbs for all functions. Higher trim levels (like Touring and Grand Touring) featured LED tail lights for the running and brake lights, which have a more modern appearance and instant-on functionality. Halogen and LED assemblies have different wiring connectors and are not plug-and-play with each other.

2018-2021 Models: Standard LED vs. Signature LED

After the 2018 model year refresh, all Mazda 6 trims came with LED tail lights, but there were two distinct styles:

• Standard LED: Found on lower to mid-tier trims, these have a simpler internal design.
• Signature LED: Equipped on high-end trims like Grand Touring Reserve and Signature, these lights feature a more complex, premium lighting element often described as a 'heartbeat' or 'signature' design.

Like the earlier Halogen/LED split, the Standard and Signature LED lamps have different connectors and are not directly interchangeable. The OEM part number for a Signature light is different, such as GRF8-51-160B.

Symptoms of Failure

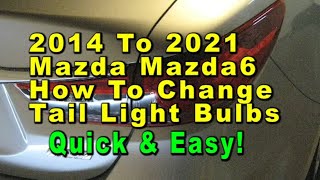

• Dim or Dead Bulb/LED: The most common issue is a single function (like a brake or turn signal light) no longer illuminating. On halogen models, this is a simple bulb change. 🎬 See how to change your tail light bulbs On LED models, a failed LED segment often requires replacing the entire assembly.
• Hyperflashing: A turn signal that blinks much faster than normal is called 'hyperflash'. This is the car's way of telling you a turn signal bulb has burned out or there is a resistance issue in the circuit.
• Condensation or Water Inside: Moisture trapped inside the lens indicates a failed seal. While Mazda has a Technical Service Bulletin (TSB) stating that minor fogging can be normal, significant water droplets or pooling water is a problem that can corrode electrical contacts and circuit boards.
• Cracked Lens or Housing: Physical damage from an impact can break the lens or the rear housing, allowing water in and compromising safety.
• Blown Fuses: If a tail light fuse blows instantly upon replacement, it signals a short circuit in the wiring or within the tail light assembly itself.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While there have been no specific recalls for the tail light assemblies themselves on the 2014-2021 Mazda 6, there are related items and common complaints to be aware of:

• TSB 09-003/19 - Condensation/Fog in Lamps: Mazda has issued a bulletin acknowledging that minor condensation along the edges or in the corners of headlamps and tail lamps can be a normal occurrence due to temperature differences. However, the bulletin also clarifies that heavy condensation or large water droplets are not normal and warrant replacement of the light unit. 🎬 Watch this guide on fixing tail light condensation This is often caused by a deteriorating gasket between the lens and housing.
• No Major Recalls: Searches of the NHTSA database show recalls for the 2014-2021 Mazda 6 related to parking brakes, fuel tanks, and tire pressure monitors, but none directly targeting the tail light assemblies for widespread failure.

Buying a Used 2014-2021 Mazda 6 Tail Light

Purchasing a used OEM tail light is an excellent way to save money while retaining factory quality, fit, and finish. Cheap aftermarket lights often suffer from poor seals, plastics that fade quickly, and incorrect color output. Here’s what to check when buying used:

1. Confirm the Exact Variant: First and foremost, use the guide above. Is your light Halogen or LED? Standard or Signature? Outer or Inner? Left (Driver) or Right (Passenger)? Getting this wrong is the most common mistake.
2. Inspect the Lens: Look for deep scratches, scuffs, and any cracks. Hairline cracks can let in moisture, leading to failure down the road.
3. Check All Mounting Tabs: The assembly is held on by several studs and plastic mounting tabs. Ensure none of the tabs on the housing are cracked or broken off. A broken tab will prevent the light from seating securely and sealing against the body.
4. Examine the Seal/Gasket: Look at the foam or rubber gasket that runs along the edge of the housing. It should be pliable and intact. A compressed, dry, or cracked gasket will not seal properly and will cause water leaks into the trunk or the lamp itself.
5. Inspect the Electrical Connector: Look at the pins inside the connector socket. They should be clean and shiny. Any signs of green or white corrosion indicate past water intrusion, which may have damaged the internal circuitry.
6. For LED Units, Ask for a Function Test: Since you cannot replace individual LEDs, it's crucial to know the unit is fully functional. If buying from a reputable recycler, ask if the part was tested before being removed from the vehicle.

Replacement Overview

Replacing an outer tail light on a Mazda 6 is a straightforward DIY job.

• Difficulty: 1.5 out of 5
• Time: 15-20 minutes per side
• Tools: Trim removal tool, 10mm socket with ratchet.

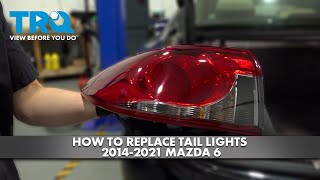

The basic process involves opening the trunk, removing a small plastic trim cover and push-clips to pull back the trunk liner, disconnecting the electrical harness, and removing three 10mm nuts that hold the assembly to the body. The lamp then pulls straight out from the quarter panel. 🎬 Watch this step-by-step tail light replacement walkthrough Installation is the reverse of removal. Be careful not to overtighten the nuts to avoid cracking the plastic housing; just snug them down until the gasket is lightly compressed. The inner, trunk-mounted lights are similarly easy to access and replace.
