2021-2024 Jaguar XF Tail Finish Panel: A Buyer's Guide to Saloon vs. Sportbrake and Part Numbers
This guide clarifies the critical differences between Saloon and Sportbrake tail finish panels and decodes the many part numbers for the 2021-2024 Jaguar XF.
- The most critical factor is matching the part to your body style: Saloon (sedan) and Sportbrake (wagon) panels are not interchangeable.
- Verify the part's options before buying: check if it's chrome or gloss black, and if it has a hole for a rearview camera.
- When buying used, the most important inspection is for broken mounting tabs on the back of the panel.
- There are no recalls or major known defects for this part; issues are almost always from physical damage or normal wear.
Symptoms of a Failing or Damaged Tail Finish Panel
As a cosmetic and housing component, the tail finish panel doesn't 'fail' mechanically. Instead, problems are typically related to physical damage, cosmetic wear, or issues with the components it houses.
- Physical Damage: Cracks, deep scuffs, or dents are the most common issues, usually resulting from a minor rear impact. A cracked panel can allow water to enter the trunk lid, potentially damaging the integrated electronics.
- Loose Fit or Rattling: If the panel feels loose, makes noise when closing the trunk, or has uneven gaps with the trunk lid, it indicates broken mounting tabs or clips on the back. This is a very common issue with used parts that were removed carelessly.
- Malfunctioning Integrated Components: 🎬 See how to replace the reverse camera If your trunk release button, rearview camera, or license plate lights stop working, the problem could be with the component itself, the wiring harness that runs through the panel, or water intrusion from a crack in the panel.
- Cosmetic Blemishes: On higher-mileage vehicles or those exposed to harsh sun, the finish can degrade. Chrome finishes can bubble or peel, and gloss black finishes can fade or show fine scratches.
Warning: Do not confuse the Tail Finish Panel (on the trunk lid) with the Trunk Sill Plate (on the body at the bottom of the trunk opening). Part number GX63406A64AE, for example, refers to the sill plate, which is a different part. This guide focuses on the exterior finisher mounted to the lid itself.
Buying a Used 2021-2024 Jaguar XF Tail Finish Panel
Purchasing a used tail finish panel is an excellent way to save money, especially since aftermarket versions for this specific model are not readily available. However, careful inspection is crucial. Here’s what to check before you buy:
1. CRITICAL: Verify Your Body Style
The single most important check is matching the part to your vehicle's body style. The Jaguar XF was produced as a Saloon (sedan) and a Sportbrake (wagon). These two models have completely different trunk lids and tailgates, and the finish panels are not interchangeable.
- Saloon Panel: A wider, shorter panel designed for a conventional trunk lid.
- Sportbrake Panel: A narrower, taller panel designed to fit the contours of a large tailgate.
Always compare photos of the part to your existing panel, paying close attention to the overall shape and curvature.
2. Match the Part Number to Your Options
Jaguar used many different part numbers for this panel to account for different trim packages and options. The primary variations are:
- Finish: Chrome (standard/luxury trims) vs. Gloss Black (R-Dynamic/Black Pack trims).
- Camera Mount: Panels for cars with a rearview camera have a specific mounting hole and bracket. Panels for cars without a camera will not have this provision.
While the provided list of OEM numbers (GX6344248AF, GX6344249AF, etc.) covers many variants, the best approach is to find the number on your original part if possible. If not, visually confirm the finish and camera option with the seller.
3. Inspect All Mounting Tabs and Clips
This is the most common failure point for used trim parts. Flip the panel over and meticulously inspect every mounting tab, post, and clip location. A single broken tab can cause a rattle or a poor fit. If a tab is broken, the panel is significantly less valuable and may require epoxy or custom brackets to install securely.
4. Examine the Overall Condition
- Look for hairline cracks, especially around the screw holes or camera opening.
- Check for peeling or bubbling on chrome finishes. 🎬 Learn how to wrap your chrome trunk trim
- For gloss black parts, expect some minor swirls, but look out for deep scratches that have gone through the paint.
- Ensure any included wiring, camera, or switch is present and appears undamaged.
Pro Tip: Buying a used OEM panel ensures a perfect factory fit, which cheap aftermarket parts (if they were available) can rarely match. The plastic quality and clip design of the original Jaguar part are engineered specifically for the vehicle, reducing the risk of rattles and fitment issues.
Known Issues, TSBs, and Recalls
As of mid-2024, there are no specific recalls or Technical Service Bulletins (TSBs) from Jaguar or the NHTSA related to the tail finish panel for the 2021-2024 XF. Any issues you encounter will almost certainly be due to wear, age, or physical damage rather than a manufacturing defect.
Replacement Overview & Difficulty
Replacing the tail finish panel is a manageable DIY task for most home mechanics. The general steps are as follows:
- Open the trunk/tailgate.
- Remove the inner trunk lid trim panel (carpeted cover). This is usually held on by a series of plastic clips and may require a trim removal tool to pry off without damage.
- Once the inner trim is off, you will have access to the back of the tail finish panel.
- Disconnect the electrical connectors for the license plate lights, trunk release switch, and rearview camera.
- The panel is held on by several nuts on threaded studs. Use a socket wrench to remove these nuts.
- Carefully pull the old panel off the trunk lid from the outside.
- Installation is the reverse of removal. Hand-tighten the nuts first to ensure alignment before snugging them down. Do not overtighten, as you could crack the plastic panel.
Installation Difficulty: 2 out of 5 (Requires basic tools and patience with trim clips).
Cost Comparison
| Part Type | Estimated Cost |
|---|---|
| New OEM (Dealer) | $350 - $600 |
| New Aftermarket | Not commonly available |
| Used OEM | $75 - $250 |
| Shop Labor for Installation | $100 - $200 |
Frequently Asked Questions
What is the difference between the Saloon and Sportbrake tail finish panel?
They are completely different shapes and are not interchangeable. The Saloon (sedan) has a wide trunk lid, while the Sportbrake (wagon) has a taller, narrower tailgate. You must buy the panel specific to your car's body style.
Can I add a rearview camera later by swapping panels?
It is physically possible if you buy a panel with the camera opening, but it is not a simple plug-and-play upgrade. Your vehicle's wiring harness and infotainment system must be equipped to support the camera. This would be a complex and expensive project requiring additional parts and likely dealer programming.
Why are there so many different part numbers?
The part numbers vary based on body style (Saloon/Sportbrake), finish (chrome/gloss black), and whether it has a provision for a rearview camera. Jaguar updates part numbers over time, so a superseded number may also be valid. Always verify with the seller that the part's finish and options match your needs.
My panel is loose. Do I need a whole new one?
Not necessarily. First, remove the inner trunk trim and check if the nuts holding it on have simply come loose. If the nuts are tight, the panel's plastic mounting tabs are likely broken. While the 'correct' repair is a new panel, it is sometimes possible to use a strong epoxy to re-secure the broken tabs as a low-cost fix.

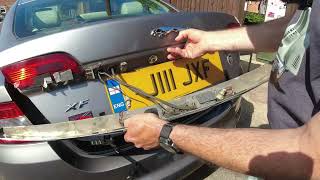

Helpful Videos
Technical Specifications
OEM Part Numbers: GX63406A64AE GX63406A76A GX63406A77A GX6344248AF GX6344249AF GX6344251AA GX6345594BK GX63460A14BC MX63455A00AA
Varies by part number. Specifications include body style (Saloon/Sportbrake), finish (Chrome/Gloss Black), and presence of a rearview camera mount.
