2004-2010 BMW X3 Rear Stabilizer Bar: Fixing Clunks and Verifying Diameter
Your definitive guide to diagnosing rear suspension noises, replacing worn components, and ensuring you buy the correct stabilizer bar for your E83 BMW X3.
- The most common symptom is a clunking noise from the rear over bumps, which is almost always caused by worn end links or bushings, not the bar itself.
- Before buying, you MUST verify your vehicle's stabilizer bar diameter. The standard bar is 18.5mm, but sport suspension options may differ.
- When replacing the stabilizer bar, it is essential to also replace the end links and bushings to fully resolve any noise or handling issues.
- A used OEM stabilizer bar is a great value because the bar itself is a non-wear item; just ensure it is straight and the correct diameter.
Symptoms of a Failing Rear Stabilizer Bar System
When a stabilizer bar system fails on the 2004-2010 BMW X3, the symptoms are usually very noticeable. It's important to know that the steel bar itself rarely breaks or wears out; the noises and handling issues are almost always caused by the supporting components: the end links and the rubber bushings.
Clunking, Rattling, or Knocking Noises
This is the most common and easily identified symptom. You will likely hear a distinct clunking, rattling, or knocking sound coming from the rear of the vehicle, especially when driving at lower speeds over bumps, potholes, or uneven road surfaces. The sound is caused by worn-out joints in the stabilizer bar end links or degraded rubber bushings that allow the metal components to move around and strike each other. The noise may disappear on smooth roads but will return consistently on rougher pavement.
🎬 Watch: Diagnose common causes of rear end clunkingPoor Handling and Excessive Body Roll
A failing stabilizer bar system compromises the vehicle's stability. You may notice the X3 feels 'loose,' 'floaty,' or less responsive, particularly when cornering or changing lanes. The vehicle will lean or sway more than usual in turns, feeling more 'boat-like' and less precise. This loss of stability can be unsettling and reduces driver confidence, especially during emergency maneuvers.
Diagnosing the Problem: Bar, Links, or Bushings?
Before buying parts, it's wise to pinpoint the source of the noise. With the vehicle safely supported on jack stands, you can perform a quick inspection.
- Check the End Links: The end links connect the ends of the stabilizer bar to the suspension arms. Grab each link firmly and try to wiggle it. There should be no significant play or clunking. If you can move the joints easily by hand or hear the same noise you hear when driving, the end link is bad. 🎬 Watch: Step-by-step rear end link replacement tutorial
- Inspect the Bushings: The stabilizer bar is held to the subframe by two rubber bushings. Inspect these for visible cracks, hardening, or shrinking. Worn bushings will create a gap around the bar, allowing it to move and clunk against the mounting bracket. 🎬 See how to replace the rear stabilizer bushings
- Inspect the Bar Itself: While it's rare for the bar to fail, check it for any signs of bending or cracking, which would indicate it was damaged in an accident or from extreme stress. Surface rust is normal, but deep pitting or flaking that compromises the bar's integrity is a concern.
Warning: The stabilizer bar is under tension if the suspension is unevenly loaded (e.g., only one wheel is jacked up). To safely inspect and work on the system, ensure both rear wheels are at the same level, either on the ground or both raised on jack stands.
Known Issues, Recalls, and TSBs
There are no specific recalls or Technical Service Bulletins (TSBs) from BMW or the NHTSA for the rear stabilizer bar on the 2004-2010 BMW X3. The common failure of the end links and bushings is considered a normal wear-and-tear issue.
It is worth noting that this vehicle generation (E83) was included in the widespread Takata airbag recall. This is unrelated to the suspension but is an important safety check for any owner. You can verify if your vehicle is affected by checking the VIN on BMW's recall website or the NHTSA database.
Buying a Used 2004-2010 BMW X3 Rear Stabilizer Bar
A used OEM stabilizer bar is an excellent value for this repair. The bar is a solid piece of spring steel that does not have a defined service life and does not wear out from normal use. Mileage is not a significant factor in its condition.
Why a Used OEM Bar is a Smart Choice
The original BMW bar is manufactured to specific stiffness and geometry standards. A used OEM bar provides the same performance and fit as a new one from the dealer, but at a much lower cost. Aftermarket bars may have slightly different stiffness ratings, which can alter the vehicle's handling characteristics, or have minor fitment issues. Since the bar itself is not a wear item, a verified, straight used OEM bar is often a better choice than a new, cheap aftermarket alternative.
What to Inspect on a Used Bar
- Straightness: Look down the length of the bar to ensure it is perfectly straight and not bent or twisted from an accident.
- Condition: Check for deep rust pitting or damage near the mounting points. Light surface rust is cosmetic and can be easily cleaned and painted.
- The 18.5mm Diameter Check: This is the most critical step. The standard rear stabilizer bar for the E83 X3 has a diameter of 18.5mm. Some models equipped with optional sport suspension packages may have a different diameter bar. Use a pair of digital calipers to measure the bar you are considering buying, and measure the original bar on your vehicle to confirm a match. Do not rely on visual estimation.
Pro Tip: Always replace the stabilizer bar end links and bushings when you replace the bar. These are inexpensive wear items, and installing a good used bar with old, worn links and bushings will not solve your noise or handling problems.
Cost Comparison for Stabilizer Bar System Replacement
Costs can vary by location and supplier. The following is an estimated breakdown for the entire system (bar, bushings, and links).
| Part | New OEM | New Aftermarket | Used OEM (Bar Only) |
|---|---|---|---|
| Rear Stabilizer Bar | $230 - $250 | $150 - $200 | $50 - $100 |
| Rear Bushings (Pair) | ~$80 | $20 - $40 | N/A (Always buy new) |
| Rear End Links (Pair) | ~$130 | $40 - $80 | N/A (Always buy new) |
| Total Parts Cost (Approx.) | $440 | $210 - $320 | $110 - $220 (with new aftermarket links/bushings) |
| Shop Labor | $250 - $450 (for bar, links, and bushings) | ||
Replacement Overview and Torque Specs
Replacing the rear stabilizer bar, links, and bushings is a feasible DIY project for someone with basic mechanical skills and tools. The process generally involves raising and supporting the rear of the vehicle, removing the rear wheels, unbolting the old end links from the bar and suspension arms, unbolting the bushing brackets from the subframe, and removing the old bar. Installation is the reverse of removal.
Important Note on Torque Specs: Specific, verified torque specifications for the E83 rear stabilizer bar were not consistently available in search results. The values below are from related models or general suspension work and should be used as a reference only. Always consult a dedicated BMW E83 service manual for the correct, final torque values and procedures.
| Fastener | Reference Torque | Notes |
|---|---|---|
| End Link Nut | ~59 Nm (44 ft-lbs) | Reference from an E36 model; often requires counter-holding the stud with a wrench or Torx key. |
| Stabilizer Bar Bracket to Subframe | ~56 Nm (41 ft-lbs) | Reference from a newer X3 front axle; use as a general guideline only. Always use new or thread-locked bolts if specified. |
Frequently Asked Questions (FAQ)
What's the difference between a stabilizer bar, sway bar, and anti-roll bar?
They are all different names for the same part. The terms are used interchangeably in the automotive world.
Do I need a wheel alignment after replacing the rear stabilizer bar?
No. Replacing the stabilizer bar, links, or bushings does not affect the vehicle's primary alignment angles (camber, toe, caster). Therefore, a wheel alignment is not required after this job.
Can I just replace the one bad end link?
While you can, it is highly recommended to replace suspension components like end links in pairs. If one has failed due to age and wear, the other is likely not far behind. Replacing both at the same time ensures balanced handling and prevents you from having to do the same job again on the other side in the near future.
Can I upgrade to a thicker stabilizer bar?
Yes, aftermarket companies offer thicker, stiffer stabilizer bars. A thicker rear bar will further reduce body roll but will also change the handling balance of the vehicle, typically increasing the tendency for oversteer (the rear end wanting to slide out in a turn). This is a modification best suited for enthusiasts who understand its effect on vehicle dynamics.

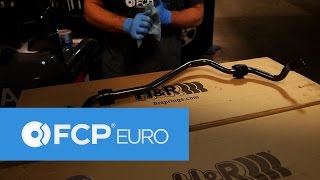

Helpful Videos
Technical Specifications
OEM Part Numbers: 33503413000 33-50-3-413-000 33503411987
Standard Diameter: 18.5mm
