2009-2025 Ram & Dodge Ram Sun Visor: Why They Break and How to Fix Them

Symptoms of Sun Visor Failure

Sun visor problems in Ram trucks typically fall into two distinct categories depending on the vehicle's generation. Identifying the correct symptom is key to choosing the right repair.

1. Visor Droops, Sags, or Won't Stay Up (All Years)

This is the most common failure for older models, particularly the 2009-2018 Dodge Ram and Ram trucks. Over time, the internal friction mechanism in the visor's pivot arm wears out. This causes the visor to lose its ability to hold a position and it will slowly droop or fall completely, often obstructing the driver's view. In some cases, simply tightening the mounting screws can help, but usually, the internal mechanism is worn beyond simple adjustment.

2. Visor Mount Breaks and Dangles by Wires (2019+ Ram Trucks)

For 2019 and newer Ram 1500, 2500, and 3500 models (5th Generation), there is a widespread issue where the plastic mounting point at the pivot cracks and breaks suddenly. When this happens, the visor detaches from the headliner and is left hanging by the electrical wires for the vanity light. This is not a gradual failure; it often happens when simply pulling the visor down. This failure is due to a weak plastic design in the mounting bracket.

3. Vanity Mirror Light Stops Working

If the light in your vanity mirror flickers or stops working, the cause is often a broken or pinched wire inside the pivot arm. This can happen from normal use over many years or be the result of damage during a headliner or windshield replacement. On some 2011-2012 models, this issue led to a safety recall due to a fire risk. In other cases, the small T5 wedge-style bulb has simply burned out.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While the breaking mount on 2019+ models is a well-known problem among owners, it has not been subject to a recall. However, there is an important safety recall for earlier models.

Safety Recall R71 / NHTSA 15V-879: Sun Visor Wiring Fire Risk

Affected Vehicles: Certain 2011-2012 models equipped with illuminated sun visors (sales code GNC).

Problem: The vanity lamp wiring in the sun visor could develop a high-resistance short circuit, especially after a service repair involving the headliner. This could lead to an inoperative light and, in some cases, an electrical fire.

Solution: Dealers will replace the sun visors, modify the surrounding sheet metal, and install new wiring guides to protect the harness, free of charge. It is critical to have this recall performed if it applies to your vehicle.

Repair and Replacement Options

Option 1: Aftermarket Bracket Repair (For 2019+ Broken Mounts)

For the common broken mount on 5th-generation Ram trucks, the most cost-effective solution is an aftermarket repair kit. These kits, typically made of aluminum or durable ABS plastic, consist of two bracket pieces that sandwich the broken factory mount, reinforcing it. This repair saves hundreds of dollars compared to buying a new visor assembly from the dealer.

1. Use a small flathead screwdriver or trim tool to pop off the plastic cover over the visor's pivot mount.
2. Using a T15 or T20 Torx driver, remove the two screws holding the mount to the roof.
3. Hold the broken visor in place and fit the two pieces of the repair bracket around the broken plastic mount.
4. Use the new, often longer, screws provided with the kit to secure the bracket and visor back to the roof. Tighten until snug.
5. Snap the original plastic cover back on. The entire process takes about 10 minutes.

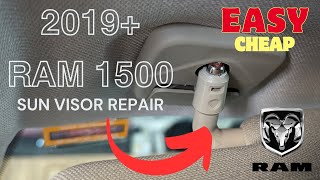

🎬 See a step-by-step walkthrough of the bracket kit installation.

Option 2: Complete Sun Visor Replacement (All Years)

If your visor is drooping, the fabric is torn, or you prefer a full replacement, the process is straightforward and can be done with basic hand tools.

1. Unclip the visor from its outer retaining clip and let it hang down.
2. For 2009-2018 models, use an 8mm socket or driver to remove the two screws holding the pivot mount to the roof. For 2019+ models, use a T15 or T20 Torx driver. A small cover may need to be pried off first.
3. Carefully lower the visor from the headliner. If it has an illuminated mirror or HomeLink, a small wiring harness will be attached. Disconnect the electrical connector by pressing the release tab.
4. Use a T15 Torx driver to remove the single screw holding the outer retaining clip and remove the clip.
5. Installation is the reverse of removal. Connect the new visor's wiring harness (if equipped), feed the wire into the headliner, and secure the pivot mount with its screws. Reinstall the outer clip.

Buying a Used Sun Visor

Purchasing a used OEM sun visor is an excellent way to save money, especially for older models where the entire unit needs replacement. However, careful verification is essential to get the right part.

How to Verify Compatibility

The most common mistake is buying a visor with the wrong features or for the wrong cab style. Before purchasing, confirm the following:

• Side: Is it for the driver (left) or passenger (right) side?
• Illumination: Does your truck have an illuminated vanity mirror? A visor with a light will not work in a truck without the factory wiring, and vice-versa.
• HomeLink: Does your driver-side visor have the buttons for the universal garage door opener?
• Cab Style: The provided data indicates differences between Regular Cab (2-door) and Crew/Quad/Mega Cab models. Ensure the donor vehicle's cab style matches yours.

How to Match Your Interior Color

Ram trucks were offered with several interior colors like Agate (black/dark gray), Diesel Gray, and Frost Beige (tan). Ordering the wrong color is a common and frustrating mistake. To guarantee a perfect match, find your vehicle's interior trim code.

The code is printed on the vehicle information sticker, which is almost always located in the driver's side door jamb. Look for a heading labeled "TRIM" on the sticker. The code will be a combination of letters and numbers (e.g., V9X9 for Black). Provide this code to the seller to ensure the used part is an exact color match.

What to Inspect

• Pivot Stiffness: Move the visor on its pivot. It should feel firm and hold its position without any assistance. If it feels loose or floppy, it will likely droop once installed.
• Mounting Bracket (2019+): For newer visors, carefully inspect the plastic mounting area for any hairline cracks or signs of stress. Even if it's not broken, consider proactively installing an aftermarket reinforcement bracket to prevent future failure.
• Fabric and Mirror: Check for stains, tears, or damage to the fabric. Open the vanity mirror cover to ensure the hinge isn't broken and the mirror is intact.

Cost Comparison
