2003-2009 Mercedes-Benz CLK320 Front Strut: Clunks, Leaks, and Suspension Codes
A detailed guide to diagnosing, replacing, and buying used front struts for the W209 CLK320, with a focus on critical suspension package differences.
- Crucially, you must verify if your CLK320 has the standard or optional Sport Package suspension (code 486/949) before buying struts, as they are not interchangeable.
- Always replace front struts in pairs, along with new strut mounts, bearings, and bump stops to ensure proper performance and avoid future issues.
- Key failure symptoms include clunking over bumps, visible fluid leaks on the strut body, and a bouncy ride that compromises handling and braking.
- A low-mileage used OEM strut is often a superior choice to a new, budget aftermarket part due to better valving and build quality.
Symptoms of a Failing Front Strut 🎬 Watch a video on how to spot bad shock and strut symptoms
When the front struts on a CLK320 begin to wear out, they produce several distinct symptoms. Ignoring them can lead to poor handling, increased braking distances, and accelerated wear on other suspension components and tires.
Audible Noises
- Clunking or Knocking: A common sign is a clunking, knocking, or banging sound when driving over bumps, potholes, or uneven road surfaces. This is often caused by worn internal components or failing strut mounts.
- Creaking or Grinding When Turning: If you hear a creaking, binding, or grinding noise when turning the steering wheel, it often points to a worn strut bearing at the top of the assembly. This bearing allows the entire strut to pivot smoothly as you steer.
Physical and Visual Signs
- Fluid Leaks: The strut is filled with hydraulic fluid to dampen impacts. If the seals fail, this fluid will leak out, often appearing as an oily or wet residue on the strut body. A leaking strut can no longer function correctly and must be replaced.
- Bouncy Ride: A classic symptom of a failed strut is an excessively bouncy or floaty ride. After hitting a bump, the car may continue to oscillate up and down instead of settling immediately. You can test this by pushing down firmly on a front corner of the car; if it bounces more than once or twice, the strut is likely worn.
- Uneven Tire Wear: Worn struts can cause a specific type of tire wear called "cupping" or "scalloping." This appears as a pattern of high and low spots across the tire's tread because the tire is literally bouncing off the pavement as you drive.
Handling and Performance Issues
- Nose-Diving and Squatting: With bad front struts, the front end of the car may dip or "nose-dive" excessively during hard braking. Conversely, the rear may squat during acceleration.
- Body Roll and Instability: You may notice the car leans or sways more than usual during turns, creating a feeling of instability. The vehicle might also feel less responsive to steering inputs or tend to wander on the highway.
Critical Compatibility Warning: The W209 CLK-Class was available with multiple suspension setups. The most important distinction is between the standard (base) suspension and the optional Sport Package (option code 486 or 949). These versions use different struts with specific damping rates and ride heights. Installing a standard strut on a Sport Package car, or vice-versa, will result in incorrect ride height, poor handling, and potentially unsafe driving characteristics. Always verify your vehicle's specific suspension package by checking the VIN before ordering parts.
Buying a Used Strut for Your CLK320
A low-mileage used OEM strut can be an excellent value, often providing better performance and longevity than a cheap, new aftermarket part. The original struts were typically made by high-quality manufacturers like Sachs or Bilstein. Here’s what to look for when buying used.
What to Inspect
- Check for Leaks: The most important check is for any sign of fluid leakage. The strut body should be dry. Any oily film or active weeping means the strut's internal seals have failed, and the part is useless.
- Examine the Piston Rod: The shiny chrome rod that extends from the top of the strut body should be perfectly straight, smooth, and free of rust, pitting, or damage. Any nicks or corrosion on the rod will quickly destroy the main seal.
- Inspect the Spring Perch and Mounts: Check the lower spring perch (the platform the coil spring sits on) for cracks, heavy corrosion, or bending. Ensure all mounting tabs and bolt holes are intact and not deformed.
- Condition of Boot and Bump Stop: While these are replaceable, a torn dust boot or disintegrated bump stop on a used unit suggests it has been exposed to the elements, which could lead to premature failure of the piston rod seal.
Mileage and Sourcing

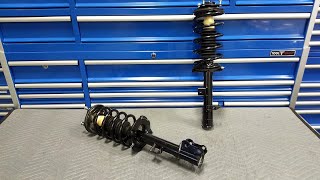

🎬 See how to tell when your struts need replacingStruts are wear items. While there's no exact lifespan, failure often begins to occur between 70,000 and 100,000 miles, depending on road conditions and driving style. When buying used, aim for a strut from a vehicle with the lowest possible mileage, ideally under 60,000 miles. A strut with over 100,000 miles is likely near the end of its service life, even if it shows no visible leaks.
Known Issues, TSBs, and Recalls
Searches of the NHTSA database did not reveal any recalls specifically for the front struts on the 2003-2009 CLK320. However, several recalls were issued for the W209 platform concerning the bonding of the glass sunroof panel, which could detach from the vehicle. While unrelated to the struts, it is a known issue for this chassis. No specific Technical Service Bulletins (TSBs) related to front strut failure were found, as strut wear is generally considered a maintenance item rather than a manufacturing defect.
Cost of Replacement
The cost to replace front struts can vary significantly based on the parts chosen and labor rates. Always replace struts in pairs (both front struts at the same time) to ensure balanced handling and performance.
| Part/Service | Estimated Cost (Per Pair) |
|---|---|
| New OEM (Genuine Mercedes-Benz) | $700 - $1000+ |
| New Aftermarket (Premium - Sachs, Bilstein) | $350 - $650 |
| New Aftermarket (Budget) | $200 - $350 |
| Used OEM | $100 - $250 |
| Shop Labor (per pair, including alignment) | $400 - $700 |
Replacement Overview and Torque Specs
Replacing the front struts on a CLK320 is a job for an experienced DIYer or a professional technician due to the safety risks involved with compressing the coil spring. A robust hydraulic or heavy-duty mechanical spring compressor is mandatory.
Pro Tip: It is highly recommended to replace the strut mount, strut bearing, dust boot, and bump stop whenever you replace a strut. These components are inexpensive and are likely worn if the strut has failed. Reusing old mounts can lead to noise and poor performance from your new struts.
Key Steps & Torque Specifications
🎬 Watch this step-by-step CLK front strut replacement guideThe general process involves lifting the vehicle, removing the wheel, disconnecting the sway bar link and ABS sensor wires from the strut, and unbolting the strut from the steering knuckle and the strut tower in the engine bay.
| Fastener | Torque Spec | Notes |
|---|---|---|
| Top Strut Mount Nut (in engine bay) | 60 Nm (44 ft-lbs) | Tighten this last, after the car is back on the ground. |
| Strut-to-Knuckle Pinch Bolt (Upper) | 110 Nm (81 ft-lbs) | Use a new nut. |
| Strut-to-Knuckle Bolts (Lower x2) | ~102 Nm (75 ft-lbs) | Use thread locker. |
| Sway Bar Link to Strut | 60 Nm (44 ft-lbs) | |
| Strut Piston Rod Nut | 20 Nm (15 ft-lbs) | Requires a special pass-through socket to hold the rod stationary. |
| Wheel Lug Bolts | 110 Nm (81 ft-lbs) |
Warning: An alignment is absolutely necessary after replacing front struts. The new struts will change the suspension geometry, and skipping the alignment will cause rapid and uneven tire wear.
Frequently Asked Questions (FAQ)
Do I have to replace my CLK320 struts in pairs?
Yes, you must always replace struts on the same axle at the same time. Replacing only one side will create an imbalance in damping, leading to unpredictable handling, uneven ride height, and potential safety issues.
How do I know if my CLK320 has the Sport Package suspension?
The most reliable method is to use a VIN decoder online or contact a Mercedes-Benz dealership. The vehicle's data card will list all factory option codes. Look for code 486 (Sport Suspension) or 949 (Avantgarde/Sport Line). Do not rely on visual cues alone, as they can be misleading.
Can I reuse my old coil spring and strut mount?
You can typically reuse the coil spring if it is not broken, cracked, or heavily corroded. However, it is strongly advised to replace the strut mount, bearing, dust boot, and bump stop. These parts wear out along with the strut, and reusing them is a common cause of noise and premature failure of the new strut assembly.
What happens if I install a standard strut on a car with the Sport Package?
You will experience several problems. The front ride height will be incorrect (likely too high), which will affect the vehicle's alignment and appearance. More importantly, the damping rate will be too soft for the Sport Package's stiffer springs and sway bars, resulting in a bouncy ride and compromised handling, especially during cornering and braking.
Helpful Videos
Technical Specifications
OEM Part Numbers: 2033200273 2033201330 2033201630 2033202130 2033205330 2033206530 2033209030 2033213804 2033214604 2033215204 2093201130 209320113064 2093201230 2093203730 209320373064
Fits front left or right position. Different part numbers exist for standard suspension versus Sport Package (Code 486/949) and vehicles with Higher Ground Clearance (Code 482). Compatibility must be verified with the vehicle's VIN.
