2005-2008 Suzuki Forenza Stereo: Solving Common Failures and Anti-Theft Codes
This guide details the common issues, part number variations, and anti-theft procedures for the 2005-2008 Suzuki Forenza factory radio.
- This radio requires an anti-theft code after power loss, but does not need dealer programming.
- You must match the part number exactly when buying a used unit; radios that look identical may not be compatible.
- The most common failures are a blank display and parasitic battery drain.
- Replacement is a simple DIY job that can be done with basic tools in under an hour.
Symptoms of a Failing Stereo
The stereo in the Suzuki Forenza is generally reliable, but failures can occur. Most issues are noticeable and do not affect the vehicle's drivability. Here are the most common symptoms of a faulty radio unit.
- Blank or Dim Display: The most frequently reported issue is the display failing to light up, making it impossible to see the station, track number, or time.
- No Power: The unit may fail to turn on at all. This can be caused by a blown fuse, wiring issues, or an internal failure within the radio itself.
- Parasitic Battery Drain: A faulty radio can fail to shut down properly when the car is turned off, leading to a slow drain that can kill the battery overnight or after a few days of not being driven.
- CD Player Malfunctions: The CD player may stop accepting, ejecting, or reading discs. You might hear mechanical grinding noises or the unit may simply report an error.

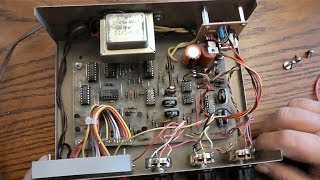

- No Sound or Intermittent Sound: While sometimes caused by failed speakers, a faulty radio can also be the source of no audio output. 🎬 Watch this video to troubleshoot radio and speaker issues.
Known Issues and Recalls
While there are no recalls specifically for the radio unit, the 2005-2008 Forenza was subject to several recalls related to the vehicle's lighting and electrical systems, such as the headlamp switch and Daytime Running Light (DRL) module overheating. These issues highlight potential vulnerabilities in the vehicle's electrical architecture. One recall notice specifically advises technicians to get the radio's anti-theft code from the owner before disconnecting the battery to perform the recall service, confirming the presence of a security system.
Compatibility Warning: Two main types of factory radios were available for the Forenza: an AM/FM radio with a single-disc CD/MP3 player and a version that included a cassette player. These units are not interchangeable. Before purchasing a replacement, verify which version your vehicle has. This guide and the listed part numbers refer to the single-disc CD/MP3 player version.
Buying a Used Stereo / Receiver
Purchasing a used OEM stereo is often the most cost-effective way to restore your car's audio functions. Because these units are tied to an anti-theft code, there are a few extra steps to ensure a successful swap.
Inspection and Verification
- Part Number Match: The most critical step is to match the part number. Do not assume a radio will work just because it looks the same. Different part numbers can have different internal data streams, even if the plugs are identical. Check the sticker on your original radio and match it to the replacement.
- Physical Condition: Inspect the used unit for any physical damage. Check for deep scratches on the display, broken buttons, and ensure the rear connectors are clean and intact.
- Ask About the Anti-Theft Code: When buying from a private seller or an auto recycler, ask if they have the anti-theft code for the unit. While not always possible, having the code will save you a significant hassle. If the code is not available, you will need to retrieve it using the radio's serial number.
Anti-Theft and Programming
The 2005-2008 Suzuki Forenza radio is equipped with an anti-theft security feature. This is not a complex, VIN--based programming system but a simple code that must be entered if the unit loses power.
- No Dealer Programming Needed: A replacement radio does not need to be programmed or flashed by a dealer to work in your vehicle. It only needs the correct 4 or 5-digit security code.
- Retrieving a Lost Code: If you install a used radio and it displays "CODE" or "codE", you will need to retrieve its unique code. To do this, you must remove the radio from the dashboard and find the serial number printed on a sticker on the metal casing. With this serial number, you can contact a Suzuki dealership or use a reputable online code retrieval service.
Pro Tip: Before you disconnect your old radio or disconnect the car battery, check your owner's manual or the glove box for a small card containing the radio's anti-theft code. This can save you the trouble of having to retrieve it later.
Replacement Overview
Replacing the factory stereo in a Suzuki Forenza is a relatively simple process that most DIY mechanics can complete in under an hour.
- Disconnect the negative battery terminal.
- Carefully pry off the trim piece surrounding the radio and climate controls.
- Unscrew the four Phillips head screws securing the radio to the mounting brackets.
- Gently pull the radio out and disconnect the wiring harness and antenna cable from the back.
- Connect the new radio and reverse the steps to install.
- Reconnect the battery and enter the anti-theft code if prompted.
Cost Comparison
| Part Type | Estimated Cost |
|---|---|
| New OEM | $285+ (if available) |
| New Aftermarket (Head Unit + Install Kit) | $120 - $300+ |
| Used OEM | $35 - $80 |
| Remanufactured OEM | $105 - $125 |
| Shop Labor (Installation) | $75 - $150 |
Frequently Asked Questions (FAQ)
Does a used 2005-2008 Forenza radio need to be programmed by a dealer?
No, dealer programming is not required. However, the radio does have an anti-theft feature that requires a security code to be entered if it loses power.
How do I find my Forenza's radio code?
The code may be on a card in your owner's manual. If not, you must remove the radio to find its serial number on the chassis sticker. A Suzuki dealer or an online service can provide the code using that serial number.
Can I install an aftermarket radio in my Forenza?
Yes, you can install an aftermarket radio. You will need a vehicle-specific dash kit (such as Metra 95-7951 for a double-DIN unit or 99-7951 for a single-DIN unit) and a wiring harness adapter (like Metra 70-8405) to connect it to the factory wiring without cutting any wires.
Why is my radio display blank but it still plays music?
This is a common failure mode for these units. It typically indicates a fault with the display itself or its internal connection, requiring the radio to be repaired or replaced.
Will this radio drain my car's battery?
In some cases, a faulty radio can fail to power down correctly and cause a parasitic drain on the battery. If your battery dies after the car sits for a day or two, and you've also noticed radio problems, the two issues could be related.
Helpful Videos
Technical Specifications
OEM Part Numbers: 96889781 96-889-781 96473445 96805108 39010185Z20 3910185Z30
Double-DIN size, AM/FM tuner, single-disc CD player with MP3 compatibility.
