2006 Saab 9-2X Steering Wheel Airbag: Compatibility, Recalls, and Replacement Warnings

Understanding the 2006 Saab 9-2X Steering Wheel Airbag

The 2006 Saab 9-2X, often called the "Saabaru," is fundamentally a rebadged and restyled Subaru Impreza. This is the most important fact to understand when sourcing parts, especially the steering wheel airbag. The vehicle was offered in two main trims: the base 'Linear' (equivalent to the Subaru Impreza) and the turbocharged 'Aero' (equivalent to the Subaru Impreza WRX). The steering wheels and, consequently, the airbags, are different between these two trims and are not interchangeable.

Variant Differences: Aero vs. Linear

The most common mistake buyers make is purchasing an airbag that doesn't match their vehicle's trim level. The two are physically different and will not fit in the wrong steering wheel.

• Aero Trim: The 9-2X Aero uses a 3-spoke MOMO-branded steering wheel, identical to the one found in the 2005-2006 Subaru WRX. The airbag for this wheel is distinctly shaped to fit the MOMO design.
• Linear Trim: The 9-2X Linear uses a standard 4-spoke Subaru steering wheel. Its airbag is larger and has a completely different shape from the Aero model.

Known Issues, TSBs, and Recalls

Major Takata Airbag Recall

The 2005-2006 Saab 9-2X is included in the massive and critical Takata airbag recall. Specifically, the passenger-side frontal airbag inflator was the primary subject of these recalls. However, subsequent recalls also addressed the driver's side. The issue involves the propellant used in the inflator, which can degrade over time, especially with exposure to heat and humidity. In a crash, a defective inflator can rupture, sending dangerous metal fragments into the cabin, which can cause serious injury or death.

• NHTSA Recall Numbers: Key recalls related to this issue include 20V001000 and 20V002000.
• Who Handles the Recall?: Since Saab is no longer a fully operational manufacturer in the same capacity, General Motors (GM) handles the recall service for Saab vehicles. Owners can take their 9-2X to any Chevrolet, Buick, GMC, Cadillac, or authorized Saab Official Service Center for the free recall repair.
• Impact on Used Parts: It is illegal and unsafe for sellers to knowingly sell a part that is under an active recall. When buying a used airbag, it is crucial to verify with the seller that the part is not from a vehicle with an open Takata recall, or that the inflator has been replaced under the recall campaign.

Symptoms of Failure

A steering wheel airbag itself doesn't typically "fail" in a way that's noticeable without a crash. However, problems within the SRS system can prevent it from working. The most common point of failure that illuminates the airbag light is the clock spring.

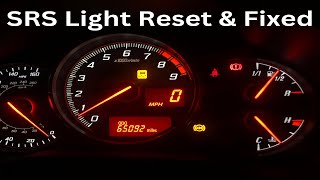

The SRS Warning Light is On

The most obvious symptom is an illuminated airbag or SRS (Supplemental Restraint System) light on your dashboard. This light indicates that the vehicle's computer has detected a fault in the safety system. When this light is on, you must assume that the airbags will not deploy in an accident. Common causes for the SRS light include:

• Faulty Clock Spring: This is the most common culprit. The clock spring is a coiled ribbon of wires behind the steering wheel that allows the electrical components (airbag, horn, cruise control) to stay connected while the wheel turns. Over time, these wires can break.
• Damaged Wiring or Sensors: A fault in any of the system's sensors or wiring, often under the front seats, can trigger the light.
• Past Accident: If the vehicle was in an accident where the airbags should have deployed but didn't, or if the system was not properly reset after a deployment, the light will stay on.
• Control Module Issues: The airbag control module itself can fail or store "crash data" that needs to be cleared with special tools.

Symptoms of a Bad Clock Spring

Since the clock spring is directly related to the steering wheel airbag's function, its failure symptoms are important to know:

• Airbag/SRS Light On: The primary symptom, as the connection to the driver's airbag is lost.
• Horn Not Working: The horn circuit also runs through the clock spring.
• Steering Wheel Buttons Inoperative: Cruise control or audio buttons may stop working intermittently or altogether.
• Clicking or Grinding Noises: A scraping or clicking sound when turning the steering wheel can indicate the broken ribbon cable inside the clock spring housing.

Buying a Used Steering Wheel Airbag

Buying a used OEM airbag can be a cost-effective solution, but it requires careful inspection and verification.

1. Verify Trim Compatibility: First and foremost, confirm if you have an Aero (3-spoke MOMO) or Linear (4-spoke standard) steering wheel. Only buy an airbag that matches your specific wheel. Ask the seller for clear photos if you are unsure.
2. Check for Deployment: Never buy an airbag that has been deployed. A deployed airbag is completely useless. Signs of deployment include a torn or ripped cover, burn marks, or a powdery residue.
3. Inspect for Damage: Look for any cracks, deep scratches, or signs of water damage on the airbag module's housing and connector. Do not buy a part that looks like it was stored improperly or handled roughly.
4. Ask About Recalls: Ask the seller to confirm the part is not subject to an open Takata recall. Reputable sellers of used airbags are required to check for this.
5. Check Connectors: Ensure the electrical connector and its pins are clean, straight, and free of corrosion.

Cost Comparison

(Prices are estimates as of 2026 and can vary based on supplier, location, and part condition.)
