Mazda CX-9 (2007-2015) & CX-7 (2007-2012) Steering Knuckle and Bearing Failures

Critical Compatibility Warning: 2015 vs. 2016 Mazda CX-9

Symptoms of a Failing Steering Knuckle or Wheel Bearing

Failures related to the steering knuckle on the CX-9 and CX-7 typically fall into two categories: wheel bearing failure or issues with related components like ball joints.

• Roaring or Grinding Noise: This is the most common symptom and almost always indicates a failed wheel bearing. The noise is often described as a hum or roar that starts at low speeds (around 20-30 mph) and gets louder with speed. It may change in pitch or disappear when turning, which helps identify which side is failing.
🎬 Watch: How to perform a professional wheel bearing sound test.
• Clunking or Rattling: A rattling sound from the front suspension, especially over bumps, was a key symptom noted in a major safety recall for the lower ball joints on both the CX-9 and CX-7. Since the ball joint connects directly to the bottom of the steering knuckle, this sound should be investigated immediately.
• Vehicle Pulling to One Side: If the vehicle pulls to one side and an alignment cannot correct it, the steering knuckle itself may be bent from an impact with a curb or pothole. This will also cause uneven tire wear.
• Vibrations: A bad wheel bearing can cause vibrations felt in the steering wheel or the floor of the vehicle. This can also be a symptom of a bent knuckle.
• Loose Steering Feel: Excessive play in the steering wheel can be caused by wear in the ball joint or tie rod end, which connect to the knuckle.

Known Issues, TSBs, and Recalls

Both the first-generation CX-9 and the CX-7 were subject to a critical safety recall involving the front lower ball joints, which attach to the steering knuckle.

NHTSA Recall: Front Lower Ball Joint Separation

A major issue for both models, especially in regions that use road salt, is the potential for water to enter the lower ball joint fitting. This causes corrosion that can lead to the ball joint separating from the lower control arm. If this happens, it results in a sudden and complete loss of steering control.

• Mazda CX-9 (2007-2014): Recall 8515G. Mazda's fix was to replace both front lower control arms with a modified design. The recall noted that a rattling noise could precede the failure.
• Mazda CX-7 (2007-2012): A nearly identical recall was issued for approximately 190,000 CX-7s for the same ball joint corrosion and separation risk.

NHTSA Recall 9316D: Loose Strut-to-Knuckle Bolts

A smaller recall affected some 2013-2015 CX-9 models. The lower mounting nuts and bolts connecting the front strut to the steering knuckle could loosen. This could allow the knuckle to separate from the strut, also causing a loss of steering control. The fix was to inspect and, if necessary, replace and correctly tighten the bolts.

Buying a Used Steering Knuckle: What to Look For

Buying a used OEM steering knuckle can be a cost-effective repair, but careful inspection is key. The biggest consideration is the condition of the included wheel bearing.

• The Bearing is the Weak Point: New OEM knuckles for these models come with a new wheel bearing already pressed in. A used knuckle will have a bearing with the same mileage and wear as the donor vehicle. Assume the used bearing's lifespan is unknown and factor a potential replacement into your budget.
• Physical Inspection: With the bearing removed (or before installing), carefully inspect the knuckle itself. Look for:
  • Cracks: Check thoroughly for hairline cracks, especially around the bearing bore and where the strut, ball joint, and tie rod mount.
  • Impact Damage: Look for any signs of bending or warping. Compare it to your old part if possible. A bent knuckle will make alignment impossible.
  • Mounting Holes: Ensure the hole for the lower ball joint is round and not worn into an oval shape. Check that all threaded holes are clean and not stripped.
  • Corrosion: Heavy corrosion, especially in the ball joint or strut mounting areas, is a red flag.
• Why Used OEM is a Good Choice: An OEM recycled knuckle is made from high-quality cast steel or iron designed specifically for the vehicle. It will fit correctly, whereas some cheap aftermarket parts can have issues with casting quality or dimensional accuracy. Given that a new OEM part comes with a bearing, a used OEM knuckle where you press in a *new* bearing can be an excellent, high-quality repair.

Cost to Replace a Steering Knuckle

The cost can vary significantly based on the parts used (new vs. used, OEM vs. aftermarket) and local labor rates. An alignment is mandatory after replacement, adding to the total cost.

Related Parts to Consider Replacing

• Lower Control Arm / Ball Joint: Given the recall history, if the lower ball joint shows any signs of wear, or if the recall has not been performed, it is critical to replace it. Often, replacing the entire lower control arm is easier.

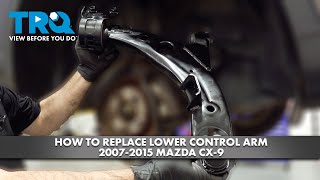

🎬 See how to replace the lower control arm and ball joint.
• Tie Rod End: The tie rod end must be disconnected from the knuckle. If it is worn or the boot is torn, now is the perfect time to replace it.
• CV Axle Nut: This is a one-time use, torque-to-yield nut and must be replaced with a new one during reassembly.
• Strut Bolts: Given the recall for loose bolts on some model years, it is wise to use new bolts and ensure they are torqued to the correct specification.

Frequently Asked Questions (FAQ)
