2003-2008 Pontiac Vibe Steering Knuckle: Failure Sounds, Diagnosis, and FWD vs. AWD Warning

Symptoms of a Failing Steering Knuckle Assembly

The steering knuckle itself is a very durable piece of metal that rarely fails unless it's been physically damaged in an accident or by a severe impact, like hitting a curb or a large pothole. More often, the symptoms people notice are from the failure of the wheel bearing that is pressed into the knuckle. It's important to distinguish between the two, though they are replaced as a unit in many cases.

Common Failure Sounds and Vibrations

• Grinding, Roaring, or Humming Noise: This is the most common sign of a bad wheel bearing. The noise is speed-dependent, meaning it gets louder and higher-pitched as you drive faster. It's often described as a growl or hum that can be heard starting around 15-25 MPH. A classic test is to swerve gently from side to side at a steady speed; if the noise gets louder when turning one way and quieter when turning the other, it strongly indicates a bad wheel bearing on the side that gets louder.
• Clicking or Popping When Turning: A clicking or popping sound, especially during sharp, low-speed turns like in a parking lot, can point to a worn ball joint connected to the knuckle or excessive play where the components meet.
• Clunking Over Bumps: A clunking sound when driving over bumps can be caused by a worn ball joint or worn strut mounts, both of which attach directly to the steering knuckle.
• Steering Wheel Vibration: A vibration or wobble felt in the steering wheel that changes with speed can be a sign of a failing wheel bearing creating play in the wheel assembly. This may feel similar to an unbalanced tire.

Visual and Driving Symptoms

• Vehicle Pulling to One Side: If the knuckle is bent from an impact, it can throw off the wheel alignment permanently, causing the vehicle to pull to one side. This may be especially noticeable during braking.
• Uneven Tire Wear: A bent knuckle or severely worn bearing will alter the wheel's alignment angles (camber and toe), leading to rapid and uneven wear on the inside or outside edge of a tire.
• Loose Steering Feel: Excessive wear in the knuckle's mounting points for the ball joint or tie rod can create a vague or wandering sensation in the steering.

Known Issues, Recalls, and TSBs

As of this writing, there are no specific recalls or Technical Service Bulletins (TSBs) from GM or Toyota for the steering knuckle itself on the 2003-2008 Pontiac Vibe. However, this vehicle series was subject to numerous recalls related to Takata airbag inflators. While unrelated to the knuckle, it's wise for any owner to check if their vehicle has had these critical safety repairs performed.

Buying a Used 2003-2008 Vibe Steering Knuckle

A used OEM steering knuckle is an excellent, cost-effective option because the knuckle itself is incredibly strong. The primary concern is the condition of the wheel bearing it contains.

Inspection Checklist for a Used Assembly:

• Check for Cracks or Bends: Carefully inspect the entire knuckle for any hairline cracks, especially around the mounting points for the strut, ball joint, and brake caliper. Look for any signs of bending or warping from an accident.
• Inspect Mounting Holes: Ensure the threaded holes for the brake caliper bracket are clean and not stripped. Check the tapered hole for the ball joint for any signs of excessive wear or distortion.
• Assess the Wheel Bearing: A used knuckle will almost always include the hub and bearing. Try to spin the hub by hand. It should be smooth and silent. If you feel any roughness, grinding, or notice any side-to-side play when wiggling the hub, the bearing is bad.
• Mileage vs. Bearing Life: The knuckle itself is not a wear item, but the wheel bearing is. A front wheel bearing on a Vibe/Matrix typically lasts 80,000 to 150,000 miles. It is highly recommended to press a new wheel bearing into any used knuckle before installation, especially if it came from a vehicle with over 100,000 miles. This prevents having to do the job twice.

Replacement Overview and Torque Specs

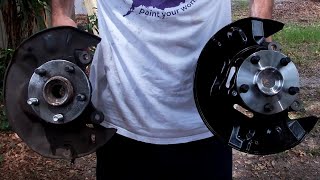

Replacing the steering knuckle is an advanced repair. It involves disconnecting safety-critical suspension and braking components. While DIY-feasible for an experienced mechanic, it may be challenging for a novice. 🎬 Watch this step-by-step Matrix/Vibe knuckle assembly replacement video The most difficult part is often separating the ball joint and tie rod end from the knuckle, which may require a special puller or a large hammer.

Related Parts to Inspect and Replace

While the knuckle is off, it is the perfect time to inspect and, if needed, replace the following related parts:

• Lower Ball Joint: Connects the knuckle to the control arm.
• Outer Tie Rod End: Connects the knuckle to the steering rack.
• CV Axle Shaft: Inspect the boots for tears or leaks.
• Strut Assembly: Check for leaks or damage.
• Brake Pads and Rotor: Since they must be removed anyway, it's a good time for a brake job.

Key Torque Specifications

Using a torque wrench is critical for safety. These are the primary torque specs for a 2003-2008 Pontiac Vibe. Always verify with a model-specific service manual.

Cost Comparison

Prices can vary significantly based on brand, location, and whether you do the work yourself. A key decision is whether to buy a bare knuckle and press in a new bearing or buy a pre-assembled (loaded) knuckle.

Frequently Asked Questions (FAQ)
