2004-2008 Lamborghini Gallardo Steering Knuckle: Diagnosing Noises and Failures

Symptoms of a Failing Steering Knuckle Assembly

Failure of the steering knuckle itself is rare without a significant impact, like hitting a curb or a major pothole. More commonly, the symptoms people notice are from the wheel bearing, which is housed inside the knuckle. Since the bearing is pressed into the knuckle, they are often diagnosed and replaced together.

Noises

• Grinding, Humming, or Growling: This is the classic sign of a bad wheel bearing. The noise is often most noticeable when driving at speed and may change pitch or disappear when turning. To pinpoint which side is failing, listen for the noise to get louder when turning; if you turn left and the noise increases, the right-side bearing is likely the culprit as it is under more load.
• Clicking or Popping: A clicking sound when turning can indicate a failing wheel bearing, but it can also be a symptom of a worn CV (Constant Velocity) joint on the axle shaft.
• Clunking: A clunking noise over bumps could be from worn control arm bushings or sway bar links, which are known issues on early Gallardos. In a severe case, it could also indicate a loose connection where the control arms bolt to the knuckle.

Other Symptoms

• Steering Wheel Vibration: A failing wheel bearing can cause vibrations that you feel in the steering wheel. This vibration typically gets worse as vehicle speed increases.
• Loose or Vague Steering: If the steering feels less precise or the car tends to wander, it can be a sign of a worn wheel bearing or other worn suspension components connected to the knuckle.
• Uneven Tire Wear: A worn bearing can allow for excessive play in the wheel, leading to improper tire alignment and accelerated, uneven wear.
• ABS Warning Light: The wheel speed sensor for the Anti-lock Braking System (ABS) is mounted on the knuckle and reads a tone ring on the hub or axle. Excessive play from a bad bearing can disrupt this signal, triggering an ABS fault light on the dashboard.

Known Issues, TSBs, and Recalls

While there are no recalls specifically for the steering knuckle on the 2004-2008 Gallardo, there are related suspension and steering recalls and known issues to be aware of.

• NHTSA Recall 06V057000: Issued for 2004-2006 Gallardo models, this recall addresses bolted connections on the suspension's double wishbones (control arms) that could come loose. These are the bolts that connect the control arms to the chassis and the steering knuckle. A loose connection could reduce handling stability. Dealers were instructed to inspect and repair these connections.
• NHTSA Recall 12V430000: This recall affects 2004-2006 Gallardo models for a power steering hose that could leak. Leaking hydraulic fluid could contact hot engine components and pose a fire risk. While not directly part of the knuckle, it's a critical system check for any prospective buyer.
• Known Issue - Control Arm Bushings: Owners on forums frequently report clunking noises from the suspension, which are often traced back to worn rubber bushings in the control arms or anti-roll bar mounts. These bushings can crack and fail from age and the high cornering forces the car generates.

Buying a Used Steering Knuckle Assembly

Given the extremely high cost of a new OEM steering knuckle from Lamborghini, a quality used OEM part is the most practical and cost-effective solution for most owners. Aftermarket options are virtually non-existent for this specific component.

What to Inspect

• Check for Cracks: Carefully inspect the entire knuckle for any hairline cracks, especially around the mounting points for the control arms and the caliper, as well as the area where the wheel bearing is pressed in. Any cracks mean the part is unsafe and unusable.
• Look for Impact Damage: Check for any signs of bending, warping, or heavy scrapes. A knuckle from a vehicle involved in a collision, especially one with wheel damage, should be avoided.
• Wheel Bearing Condition: If the used knuckle includes the wheel bearing, try to turn the hub by hand. It should spin smoothly with no noise or roughness. Any grinding or side-to-side play means the bearing is bad and will need to be replaced. Budget for a new bearing to be pressed in regardless, as its remaining life is unknown.
• Mounting Holes and Threads: Ensure all threaded holes (for the brake caliper, ABS sensor, etc.) are clean and undamaged. Check that the mounting holes for the ball joints and tie rod are round and not deformed.

Mileage and Value

For the aluminum knuckle itself, mileage is less of a concern than its history. A high-mileage part from a well-maintained, accident-free car is perfectly acceptable. However, the wheel bearing is a wear item. A typical replacement interval for a Gallardo wheel bearing can be around 110,000 - 145,000 miles, but failure can happen sooner depending on driving conditions. When buying used, it's always best to assume the included bearing will need replacement.

Cost Breakdown

Replacing a steering knuckle on a Gallardo is an expensive repair, primarily due to high OEM part costs and specialized labor.

Note: Labor costs can vary significantly based on shop rates for exotic vehicles. Prices are estimates and subject to change.

Installation and Torque Specs

Replacing the steering knuckle is a complex job best left to experienced technicians, especially on a high-performance car like the Gallardo. A hydraulic press is required to install the new wheel bearing into the knuckle. Proper torque specifications are critical for safety.

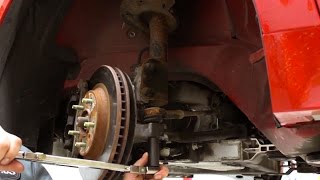

While specific Lamborghini workshop manual torque specs are difficult to source publicly, many modern vehicles with aluminum knuckles use a torque-plus-angle specification 🎬 Watch: How to properly set torque and angle specs for critical bolts. This involves tightening a bolt to a specific torque value, then turning it an additional number of degrees. This method provides more accurate clamping force than torque alone. Always refer to the official Lamborghini workshop manual for the correct procedures and specifications.
