2016-2020 Jaguar XF Steering Knuckle: Noises, Failures, and RWD/AWD Differences
This guide covers the common failure symptoms, replacement costs, and critical compatibility warnings for the 2016-2020 Jaguar XF steering knuckle assembly.
- The most critical compatibility check is RWD vs. AWD; the parts are not interchangeable. Verify with your VIN.
- Failure symptoms are usually from the bolt-on wheel bearing (grinding/humming) or control arm bushings (clunking), not the knuckle itself.
- Corrosion often seizes the steel wheel bearing into the aluminum knuckle, making separation very difficult. Buying a used assembly can be an easier solution for DIY repair.
- A wheel alignment is mandatory after replacing the steering knuckle to ensure safety and prevent tire damage.
Symptoms of a Failing Steering Knuckle or Wheel Bearing
The steering knuckle itself is a solid piece of metal that rarely fails unless subjected to a significant impact, like hitting a curb or a large pothole. More often, the symptoms you notice are from a worn wheel bearing, which is housed within the knuckle, or from worn control arm bushings that attach to it. For the 2016-2020 Jaguar XF, the front wheel bearing is a bolt-on unit, making its replacement possible without changing the entire knuckle. 🎬 Watch: Step-by-step front wheel bearing replacement guide. However, corrosion can often seize the steel bearing into the aluminum knuckle, making it extremely difficult to separate.
Common Failure Symptoms:
- Grinding, Humming, or Rumbling Noise: This is the classic sign of a bad wheel bearing. The noise typically gets louder with vehicle speed and may change pitch when you steer left or right as weight shifts off the failing bearing.
- Clunking or Popping Sounds: A clunk or pop, especially at low speeds when turning or going over bumps, often points to worn ball joints or control arm bushings connected to the knuckle. Forum users frequently report clunking from the front suspension on these models, which is often traced back to worn control arm bushings or strut mounts.
- Vague or Loose Steering: If the steering feels less precise or wanders, it can be caused by excessive play in a worn wheel bearing or other suspension joints attached to the knuckle.
- Uneven Tire Wear: A bent knuckle will alter the suspension geometry (camber and toe angles), causing rapid wear on the inside or outside edge of a tire. This is a strong indicator that the knuckle itself is damaged.
- Vehicle Pulling to One Side: If the car pulls to one side and an alignment can't correct it, a bent steering knuckle is a likely cause.
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
While no recalls specifically target the steering knuckle for the 2016-2020 Jaguar XF, there are related service actions and common issues to be aware of.
- Recall Q650 (NHTSA #16V-889): This recall affected some 2017 models for an over-torqued lower control arm-to-knuckle fastener. An over-tightened bolt could fail, potentially allowing the knuckle to separate from the control arm, which would cause a loss of vehicle control.
- Common Front Suspension Noises: Owners on forums frequently discuss clunking noises from the front end. The most common culprits are worn lower control arm bushings and upper strut mounts, not the knuckle itself.
- Noises Over Bumps: TSB JTB00674NAS1 was issued for the Jaguar I-PACE for a knocking noise from the front suspension over bumps, caused by the shock absorber. While not for the XF, it describes a similar symptom that owners may experience. Other TSBs for the XF mention vibrations and noises related to brakes or other suspension components.
Critical Compatibility Warning: The steering knuckles for Rear-Wheel Drive (RWD) and All-Wheel Drive (AWD) models are different and are not interchangeable. The AWD knuckle has a large opening for the front drive axle (CV shaft) to pass through. Additionally, part numbers changed around the 2019 model year. Always verify compatibility using your vehicle's VIN.
Buying a Used Steering Knuckle Assembly
For many owners, especially DIY mechanics, buying a used steering knuckle assembly (knuckle with the hub/bearing still attached) is a smart choice. It can save you from the difficult and often frustrating task of separating a seized wheel bearing from the original aluminum knuckle.
What to Inspect:
- Check for Physical Damage: Carefully inspect the entire knuckle for any signs of cracks, bending, or heavy impact marks, especially around the mounting points for the control arms, tie rod, and brake caliper. A bent knuckle is scrap metal.
- Examine Mounting Holes: Ensure all threaded holes (for the brake caliper, dust shield, and wheel bearing) are clean and not stripped or damaged.
- Spin the Wheel Hub: If the hub and bearing are included, try to spin it by hand. It should rotate smoothly and silently. Any grinding, roughness, or noticeable play (wobble) means the bearing is bad and will need to be replaced.
- Verify Part Numbers: Match the OEM part number stamped on the knuckle to your original part. Key numbers include GX63-3K185-AA, T2H35509, and others. Be aware of supersessions (e.g., T2H35509 replaces T2H7442).
- Confirm RWD vs. AWD: This is the most important check. A visual inspection is the easiest way to tell. The AWD version will have a large splined hole through the center for the axle shaft. The RWD version will not.
Pro Tip: Mileage is less of a concern for the knuckle itself, as it's a solid component. However, for an assembly that includes the wheel bearing, lower mileage is always better. A bearing from a vehicle with under 80,000 miles is generally a safe bet, as wheel bearings typically last between 75,000 and 150,000 miles.
Replacement Cost Breakdown
Replacing a steering knuckle is a labor-intensive job. Costs can vary based on whether you are replacing just the knuckle, the bearing, or a complete used assembly.
| Part/Service | Estimated Cost | Notes |
|---|---|---|
| New OEM Steering Knuckle (Part Only) | $750 - $850 | This is for the bare knuckle from a Jaguar dealer. |
| New Aftermarket Steering Knuckle | $150 - $300 | Availability may be limited for this specific model. Quality can vary. |
| Used OEM Steering Knuckle Assembly | $150 - $300 | A cost-effective option that often includes the hub, bearing, and dust shield. |
| Shop Labor | $285 - $420 | Typically 2-4 hours of labor. This does not include the cost of a mandatory wheel alignment. |
| Total Professional Replacement (New OEM) | $1,050 - $1,300+ | Includes part, labor, and a wheel alignment. |
Note: A four-wheel alignment, typically costing $100-$200, is required after replacing a steering knuckle to ensure proper handling and prevent tire wear.
Related Parts to Consider
When replacing a steering knuckle, it's wise to inspect related components that are being disconnected anyway. Replacing them at the same time can save on future labor costs.
- Wheel Hub/Bearing: If you are installing a bare knuckle, it's highly recommended to install a new wheel bearing.
- Control Arms & Bushings: The rubber bushings on the control arms are a known wear item on the XF. Check them for cracks or tears.
- Tie Rod Ends: Check for any play in the inner and outer tie rod ends.
- ABS Wheel Speed Sensor: These sensors can be brittle and are easily damaged during removal. Inspect it carefully.
Frequently Asked Questions (FAQ)
Do I need to replace both steering knuckles at the same time?
No, you typically only need to replace the side that is damaged or has a failed bearing. However, if one side failed due to wear (like a wheel bearing), the other side may not be far behind. It is not required like replacing brake pads in pairs.
Is a wheel alignment necessary after replacing a steering knuckle?
Yes, absolutely. The steering knuckle is a primary component that dictates suspension geometry. A full four-wheel alignment is mandatory after replacement to correct camber and toe angles, prevent unsafe handling, and avoid premature tire wear.
Can I replace just the wheel bearing instead of the whole knuckle?

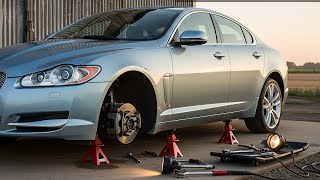

Yes, on the 2016-2020 XF, the wheel bearing is a bolt-on unit. However, due to galvanic corrosion between the steel bearing and the aluminum knuckle, it can be extremely seized and difficult to remove without specialized tools or significant effort. 🎬 See how to remove a seized wheel bearing without special tools. This is why many choose to replace the entire assembly with a used part.
What is the difference between a RWD and AWD knuckle?
The All-Wheel Drive (AWD) knuckle has a large, splined hole through its center to allow the front CV axle to pass through and power the wheel. The Rear-Wheel Drive (RWD) knuckle is solid in the center where the hub bolts on, as there is no front drive axle. They are not interchangeable.
Helpful Videos
Technical Specifications
OEM Part Numbers: GX63-3K185-AA GX63-3K185-BA GX633K185BA GX73-3K185-A T2H35509 T2H7442 GX633K185AA GX633K185CA GX633K185BB T2H24276 GX73-3K186-DA
Material: Cast Aluminum. Houses a bolt-on style wheel bearing and hub assembly. Features mounting points for upper and lower control arms, an outer tie rod, a brake caliper, and an ABS wheel speed sensor.
