2012-2022 VW Passat Steering Column: Diagnosing Airbag Lights and Failed Controls
This guide covers the extremely common clock spring failure, electronic steering lock issues, and how to select the correct used steering column for your Passat's specific options.
- The most common failure is the clock spring, causing an airbag light and loss of horn/button functions. Check if your car is covered by VW's 15-year extended warranty for this part.
- Compatibility is critical when buying used. You must exactly match the donor vehicle's options, including ignition type (key vs. keyless) and driver aids (blind spot alert).
- Replacement is a complex job that requires safely handling the driver's airbag and electronically calibrating the new steering angle sensor with a scan tool.
- A no-start condition accompanied by a 'Steering column lock defective' message points to a failure of the electronic immobilizer components within the column.
Known Issues: The Clock Spring and Steering Lock
While the physical steering column shaft is robust, the electronic components housed within it are the primary points of failure on the 2012-2022 Passat. Two issues are particularly common.
The #1 Problem: Clock Spring Failure
By far the most prevalent issue is the failure of the steering wheel clock spring. This component is a flat, coiled ribbon cable that allows the steering wheel to turn while maintaining a constant electrical connection for the airbag, horn, and all steering wheel-mounted buttons (audio, cruise control, etc.). When it fails, these connections are lost.
- Symptoms: The most common signs are an illuminated airbag warning light on the dashboard, a non-functional horn, and steering wheel buttons that stop working entirely. You may also hear a scraping, crunching, or clicking noise from within the steering column when turning the wheel.

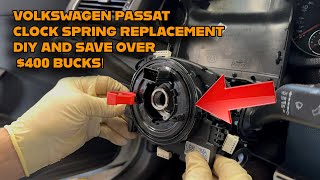

- Recalls and Warranty Extension: This was a widespread problem, leading Volkswagen to issue a recall (NHTSA Campaign 69L2) for 2010-2014 models. The initial fix involved installing a protective cover. Due to continued failures, Volkswagen later extended the warranty on the clock spring to 15 years with unlimited mileage for a wide range of models, including the 2012-2018 Passat. If your vehicle exhibits these symptoms, contact a Volkswagen dealer 🎬 See this walkthrough on replacing the clock spring and switches. to see if your vehicle is covered under this extension before purchasing parts.
Electronic Steering Column Lock (ESCL) Failure
Another known issue, particularly on earlier models in this generation, is the failure of the Electronic Steering Column Lock. This is an anti-theft device that electronically locks the steering wheel when the key is removed. A malfunction can prevent the car from starting.
- Symptoms: You may see a warning message on the instrument cluster that says "Steering column lock defective". The car may fail to start, with the ignition not turning on at all, or it may start for a second and then shut off. You might also hear a clicking noise from the column when inserting the key, with no response from the ignition. 🎬 Watch: Troubleshooting a steering column lock fault and no-start condition. A yellow or red steering wheel warning light may also illuminate.
Symptoms of a Failing Steering Column
| Symptom | Likely Cause | Severity |
|---|---|---|
| Airbag Warning Light On | Failed Clock Spring | Critical |
| Horn and/or Steering Wheel Buttons Not Working | Failed Clock Spring / Control Module | Serious |
| "Steering column lock defective" Message / No Start | Electronic Steering Column Lock (ESCL) Failure | Critical |
| Grinding, Clicking, or Scraping Noise When Turning Wheel | Failed Clock Spring or Worn Bearings in Column | Moderate |
| Loose or Wobbly Steering Wheel | Worn Bearings or Loose Mounting Bolts | Serious |
| Tilt or Telescope Function Won't Lock | Broken Mechanical Adjustment Lever/Mechanism | Minor |
Buying a Used 2012-2022 Passat Steering Column
Purchasing a used steering column can save a significant amount of money, but careful verification is essential due to the many variations available. The entire assembly is often sold as one unit, including the column, switches, and electronic modules.
Compatibility is Everything: Match These Features
Volkswagen configured the Passat with many different options that directly affect the steering column's wiring and components. A column from a car with different features will not work correctly. Before buying, you must verify the donor vehicle has the exact same options as yours. Use your vehicle's VIN to confirm its original features with a dealer if you are unsure.
- Ignition System: Does your car have traditional turn-key ignition or keyless push-button start? The steering lock mechanisms are completely different.
- Driver Aids: Does your car have a Blind Spot Alert system? This can affect the electronics within the column.
- Power Steering: Verify if your car has standard or Servotronic electric power steering.
- Transmission: The column is designed for vehicles with an automatic transmission and a floor-mounted shifter.
- Steering Wheel Controls: Ensure the donor vehicle had the same controls (cruise control, radio/media buttons, multi-function display controls).
How to Physically Inspect a Used Column
- Check All Connectors: Carefully inspect all electrical connectors for bent, broken, or corroded pins. Any damage here can cause major electronic issues.
- Inspect the Wiring: Look for any cut, frayed, or pinched wires in the harness. Ensure the plastic looms are intact.
- Test Mechanical Functions: If possible, check the tilt and telescope adjustment. It should move smoothly and lock firmly in place.
- Rotate the Shaft: Turn the input shaft by hand. It should rotate smoothly without any grinding or binding, which could indicate bad bearings.
- Ask About the Clock Spring: Inquire if the seller knows the history of the clock spring. Given the high failure rate, a column that has already had its clock spring replaced under warranty is a good find.
Why a Used OEM Column is Often the Best Choice
For a part this electronically complex and integrated, a used Original Equipment Manufacturer (OEM) column is generally a safer bet than a new aftermarket unit. OEM parts guarantee the correct fitment, materials, and, most importantly, electronic compatibility with your Passat's other modules. Aftermarket electronics can sometimes have communication issues, leading to persistent warning lights or non-functional features.
Cost Comparison
| Part/Service | Estimated Cost |
|---|---|
| New OEM (Complete Assembly) | $800 - $1200+ |
| New OEM (Combination Switch/Clock Spring only) | $250 - $450 |
| New Aftermarket (Combination Switch/Clock Spring only) | $100 - $350 |
| Used OEM (Complete Assembly) | $150 - $400 |
| Shop Labor for Replacement | $300 - $600 |
Replacement Overview & Difficulty
- Difficulty Rating: 4 out of 5
- Estimated Time: 2-3 hours
- DIY Feasibility: Not recommended for beginners.
Replacing the steering column is a complex job that involves critical safety components. While it can be done by an experienced DIY mechanic, it requires caution and the right tools.
Warning: This procedure requires removing the driver's side airbag. Always disconnect the vehicle's battery for at least 30 minutes before beginning work to allow the system's capacitors to discharge. Mishandling a live airbag can result in serious injury.
General Steps:
- Disconnect the battery.
- Remove trim panels around the steering column.
- Carefully unbolt and remove the driver's airbag module.
- Remove the main steering wheel retaining bolt and the steering wheel itself.
- Disconnect all electrical connectors to the column switches and modules.
- Unbolt the steering column from its mounting brackets under the dashboard and from the intermediate steering shaft in the footwell.
- Carefully remove the entire assembly from the vehicle.
- Installation is the reverse of removal.
Pro Tip: After installing the new column, the Steering Angle Sensor (SAS) will need to be calibrated using a compatible diagnostic scan tool. Failure to do this can result in illuminated ABS and traction control (ESP) warning lights and improper operation of stability control systems.
Frequently Asked Questions (FAQ)
What is a clock spring and why does it fail so often?
The clock spring is a spiral-wound ribbon of wires that allows the steering wheel to turn while maintaining electrical connections for the airbag and wheel-mounted controls. On these Passat models, the primary cause of failure was identified as contamination from hair and other fibers, which could cause the internal cable to snag and tear.
Do I need to program a used steering column?
While the main column components may not require programming, the integrated modules do. The vehicle's immobilizer is linked to the electronic steering column lock, and a new or used lock unit must be adapted to the vehicle with a diagnostic tool. Additionally, the steering angle sensor must be calibrated after installation.
My airbag light is on but my horn and buttons still work. Could it still be the clock spring?
Yes. The clock spring contains multiple electrical circuits. It's possible for only the airbag circuit to break while the others remain intact, at least temporarily. An airbag light should always be diagnosed immediately, as it indicates the system is non-functional.
Can I just replace the clock spring instead of the whole column?
Yes. The clock spring, which is often part of the combination switch assembly (with the turn signal and wiper stalks), can be replaced as a separate unit without replacing the entire metal column. This is the most common repair and is much less expensive and labor-intensive than swapping the whole assembly.
OEM Part Numbers
The steering column is an assembly of many parts. The following part numbers are associated with the column and its major components. Always verify the exact part number for your vehicle's specific VIN and options before ordering.
- 1K1419502BD
- 1K1419502CN
- 5K0953502AD9B9 (Combination Switch)
- 5K0953502K9B9 (Combination Switch)
- 5K0953502M9B9 (Combination Switch)
- 1K0905849 (Ignition Switch related)
- 5619598393Q7
Helpful Videos
Technical Specifications
OEM Part Numbers: 1K0905849 1K1419502BD 1K1419502CN 5619598393Q7 5K0953502AD9B9 5K0953502K9B9 5K0953502M9B9
Configurations vary based on vehicle options such as keyless ignition, Servotronic power steering, and blind spot monitoring.
