2006-2012 Toyota RAV4 Steering: The Clunk, The Column, and Compatibility

The Infamous RAV4 Steering Clunk: Cause and Solution

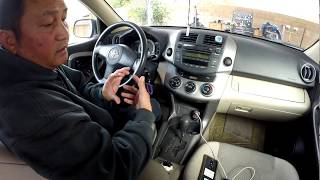

The most widely reported steering issue on the 2006-2012 RAV4 is a distinct "clunk" or "pop" noise felt and heard through the steering wheel, especially at low speeds or when turning while stationary. While many owners assume this is a major problem with the main steering column or steering rack, the issue is almost always a much simpler and cheaper part: the intermediate steering shaft.

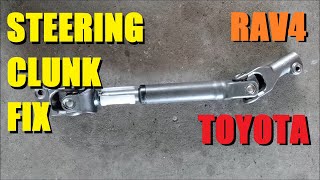

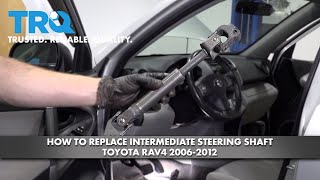

The intermediate shaft is a separate, jointed shaft that connects the bottom of the interior steering column to the steering rack in the engine bay. The clunking noise comes from premature wear within the U-joints of this shaft. Toyota acknowledged this issue by releasing Technical Service Bulletin (TSB) T-SB-0033-11, which instructs technicians to replace the original intermediate shaft with an updated part.

Symptoms of a Failing Steering Column

While the clunk is usually the intermediate shaft, the main steering column assembly can also fail. Here are the symptoms to watch for:

• Clunking or Popping Noise: A clunk originating from the intermediate shaft is the most common issue.
• Loose or Sloppy Steering: A feeling of excessive play in the steering wheel can indicate worn internal components in the column or a loose connection bolt.
• Grinding or Whining Noise: A persistent grinding or whining sound that changes with steering input could signal a problem with the bearings or the integrated electronic power steering (EPS) motor.
• Loss of Power Steering: Sudden or intermittent loss of power steering assist, making the wheel very hard to turn, can be caused by a failure of the EPS motor or its control module, which are part of the column assembly.
• Airbag or Horn Malfunction: If the horn, steering wheel buttons, or airbag warning light comes on, it could be due to a failed clock spring inside the column.
• Tilt/Telescope Failure: The mechanism that allows you to adjust the steering wheel position can break or become jammed.

Critical Compatibility Warnings: Read Before You Buy

Not all 2006-2012 RAV4 steering columns are the same. Sourcing the correct used part is critical, as there are key differences between years and trim levels. Installing the wrong column can lead to non-functioning electronics or a part that won't physically fit.

• Part Numbers 45250-42290 and 45250-42291: These part numbers are specified for Base and Sport models. Part number 45250-42291 is a newer revision that replaces 45250-42290.
• Limited Models (2009-2012): These models require a different steering column, likely due to the Smart Key system. Do NOT use a column from a Base or Sport model in a Limited.
• RAV4 EV (2012): The electric-only RAV4 EV has a completely different architecture and its steering column is not compatible with any gasoline models.

Always verify the OEM part number from your original column or by providing your VIN to a parts specialist before purchasing a replacement.

Buying a Used 2006-2012 RAV4 Steering Column

A used OEM steering column is an excellent, cost-effective alternative to a pricey new unit. Since the most common failure point (the intermediate shaft) is a separate part, a used column assembly is often a low-risk purchase if inspected properly.

1. Verify Compatibility: This is the most important step. Double-check the part number and ensure it matches your vehicle's year and trim level (Base/Sport vs. Limited).
2. Inspect the Wiring: Check all electrical connectors and wiring pigtails. Ensure they are not cracked, cut, or damaged. A damaged connector can be very difficult to repair.
3. Check for Physical Damage: Inspect the column housing for any cracks or signs of heavy impact, which could indicate it came from a vehicle in a major collision.
4. Test the Tilt/Telescope Mechanism: If possible, operate the adjustment lever to ensure the column moves freely and locks securely in place.
5. Ask About the Intermediate Shaft: While it's a separate part, ask the seller if the intermediate shaft from the donor vehicle is available. It might be in better condition than yours and can sometimes be included for a small additional cost.

Replacement Overview & Difficulty

Replacing the steering column is a moderately difficult job that requires care, especially when dealing with the airbag system. A full replacement involves removing the steering wheel, clock spring, and various trim panels before unbolting the column itself.

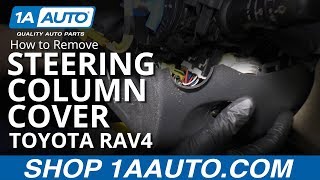

• Key Steps: Disconnect battery, remove driver's airbag, remove steering wheel (a 19mm socket is needed), remove plastic column shrouds 🎬 See how to remove the steering column covers safely. and lower dash panels, disconnect electrical connectors, unbolt the intermediate shaft from the column, and unbolt the main column assembly from the dash support structure.
• Special Tools: A torque wrench is required to properly tighten the steering wheel nut to 37 ft-lbs during reinstallation.
• Difficulty: 4 out of 5 (for experienced DIYers). The process is straightforward but involves critical safety components (airbag and steering).

Cost of Replacement: 2006-2012 Toyota RAV4 Steering Column

Official Toyota Service Bulletins (TSBs)

TSB T-SB-0033-11: This bulletin directly addresses the "Popping or Clunk Type Noise from the Steering Column Area." It confirms the cause is the steering intermediate shaft and provides the procedure for replacing it with an improved part. This is the official fix for the common steering clunk.
