2007-2017 Toyota Camry Steering Column: Diagnosing Noises, Failures, and Recalls

Key Steering Issues for the 2007-2017 Toyota Camry

The steering column and its related parts in the 2007-2017 Camry are generally reliable, but two issues are widely reported by owners. One is a mechanical noise, and the other is a potential electronic failure covered by a recall for specific model years.

1. Clunking or Knocking Noise When Turning

The most frequent complaint is a clunking, popping, or knocking sound from the steering system, especially at low speeds or when turning the wheel back and forth. While this sounds alarming, it is often not the entire steering column assembly that has failed. The two most common culprits are:

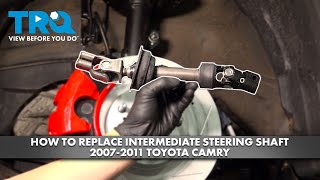

• Worn Intermediate Shaft: The steering column connects to the steering rack via an intermediate shaft, which has U-joints and a collapsible, splined section for safety. These splines can lose their grease or wear over time, causing a distinct clunk or rattle. In some cases, simply re-greasing the splines can be a temporary fix, but replacement of the intermediate shaft is often the permanent solution.
🎬 Watch this step-by-step intermediate shaft replacement guide.

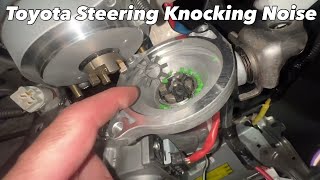

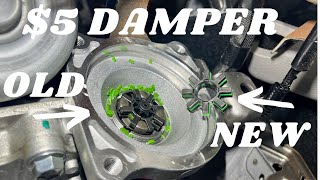

• Failed EPS Motor Damper: Inside the electric power steering (EPS) motor assembly on the column, there is a small, star-shaped rubber damper (or bushing) that sits between the motor and the gear. Over time, this rubber bushing can disintegrate, allowing for metal-on-metal contact that creates a rattling or knocking noise. Replacing this small, inexpensive part can often resolve the noise without needing to replace the entire column.
🎬 See how to replace the EPS motor damper yourself.

2. Electric Power Steering (EPS) Failure Recall

Toyota issued a safety recall for certain 2015 model year Camry vehicles. A circuit board within the Electric Power Steering (EPS) Electronic Control Unit (ECU) may have been damaged during manufacturing. This could lead to a sudden loss of power steering assistance, making the vehicle much harder to steer at low speeds and increasing the risk of a crash. Dealers will inspect the EPS ECU and replace it free of charge if it falls within the affected range.

Symptoms of a Failing Steering Column

Beyond the common issues above, a failing steering column can present several other symptoms:

• Grinding or Squeaking When Turning: This can indicate that the internal bearings in the column are worn out and failing.
• Loose or Excessive Play: If the steering wheel can be moved without the wheels responding immediately, it could be due to worn U-joints on the intermediate shaft or worn internal column components.
• Tilt/Telescope Failure: The mechanism that allows you to adjust the steering wheel position can fail, preventing it from locking securely in place.
• Electronic Malfunctions: Failure of the clockspring within the column can cause the horn, steering wheel audio controls, or cruise control to stop working. A bad steering angle sensor can also trigger warning lights for the traction control (VSC) or ABS systems.

Buying a Used 2007-2017 Camry Steering Column: What to Check

A used OEM steering column is an excellent, cost-effective alternative to a new part. However, careful inspection is required to ensure you get a good one.

1. CRITICAL: Match the Ignition System

This is the most important compatibility check. The 2007-2017 Camry was available with two different ignition systems, and the steering columns are NOT interchangeable.

• Conventional Key Ignition: For models where you insert a physical key into the ignition cylinder on the column.
• Push-Button Start (Smart Key): For models equipped with a keyless push-to-start button on the dashboard. These columns have an electronic steering lock mechanism instead of a key cylinder.

The provided OEM part numbers confirm this split. For example, part number 45250-06380 is specified for models 'without push button start' or 'without smart key'. Always verify which system your vehicle has before purchasing.

2. Physical Inspection Checklist

• Check for Damage: Inspect the entire assembly for cracks, bends, or signs of impact from a collision. A bent column is unsafe and should be rejected.
• Test the Intermediate Shaft: Hold both ends of the attached intermediate shaft and try to twist it. There should be no clunking or excessive play in the U-joints.
• Verify the Tilt & Telescope Mechanism: Operate the adjustment lever and ensure the column moves smoothly and locks firmly in every position. It should not feel loose or slip after being locked.
• Inspect Wiring and Connectors: Check all electrical harnesses and connectors for cut wires, bent pins, or corrosion. Damaged wiring can be very difficult to repair.

Cost Comparison: Camry Steering Column Replacement

Replacement Overview & Difficulty

Replacing the steering column is an advanced procedure that involves critical safety systems. Due to the need to handle the airbag and potentially recalibrate the steering angle sensor, it is recommended for experienced DIY mechanics or professionals.

• Difficulty: 4 out of 5
• Estimated Time: 2.5 - 4 hours
• Key Steps:
  1. Disconnect the negative battery terminal and wait several minutes for the airbag system to discharge.
  2. Remove the driver's side airbag and steering wheel. This requires specific tools and extreme care.
  3. Remove the lower dash panels and steering column shrouds.
  4. Disconnect all electrical connectors and the intermediate shaft bolt at the base of the column.
  5. Unbolt the steering column from its mounting bracket on the dash support and carefully remove it from the vehicle.

Steering Angle Sensor Calibration

After the new column is installed, the steering angle sensor must be calibrated. This sensor tells the Vehicle Stability Control (VSC) system the exact position of the steering wheel. If it is not calibrated, the VSC and TRAC lights may illuminate on the dash, and the stability control system will not function correctly. Calibration can sometimes be done with a specific manual procedure but often requires a professional diagnostic scan tool.
