2001 Lexus LS430 Steering Column: Fixing Noises and Power Tilt/Telescope Failure
This guide covers the common failure points of the 2001 Lexus LS430 steering column, including power motor issues, clunking noises, and how to inspect a used replacement.
- The most common failures are the power tilt/telescopic motors and internal clunking/rattling noises from worn bushings.
- When buying a used column, prioritize testing the motors and checking the main shaft for any looseness or play.
- The correct OEM part number for the 2001-2002 LS430 assembly is 45250-50160.
- Replacement is an advanced DIY job due to the need to safely handle the airbag and intricate trim removal.
Known Issues for the 2001 Lexus LS430 Steering Column
The 2001 Lexus LS430 is known for its robust engineering, but its complex steering column is a common source of problems as these vehicles age. The primary issues are related to the power adjustment features and internal wear, rather than the core steering function itself.
Pro Tip: Many owners disable the automatic exit/entry feature (where the wheel moves up and away when the car is turned off) to reduce wear and tear on the tilt and telescopic motors. This can often be done by a dealer or a specialized shop with a technical scan tool.
Power Tilt and Telescopic Motor Failure
The most frequent complaint is the failure of the power tilt (up/down) or telescopic (in/out) functions. Often, one motor will fail while the other continues to work. This is typically due to the motor itself burning out after years of use, especially with the auto-adjust feature enabled. Symptoms include the steering wheel being stuck in one position or making a faint clicking sound when the adjustment switch is used.
Steering Column Noises: Clunks and Rattles

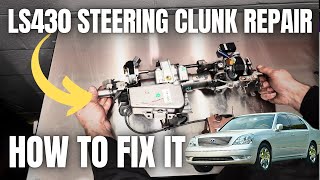

A distinct "clunk" or "rattle" 🎬 Watch this video on fixing elusive LS430 steering column issues from the steering column area is another well-documented issue. This noise can be heard when turning the wheel while parked, or it can sound like a loose suspension component when driving over bumps. This is often caused by worn internal bushings or a problem in the steering shaft assembly within the column. In some cases, this noise was addressed by a Technical Service Bulletin (TSB) from Lexus.
Technical Service Bulletins (TSBs) and Recalls
TSB ST00301 (September 28, 2001): Lexus issued this bulletin to address a potential "groan noise" from the steering column. It involved a change to the steering column upper tube assembly.
TSB EL005-04: This bulletin addresses situations where the ignition switch is difficult to turn due to the steering lock mechanism.
Recalls: As of mid-2026, there are no specific NHTSA recalls for the steering column itself on the 2001 Lexus LS430. Existing recalls for this model year pertain to other issues like the fuel pump and automatic transmission.
Symptoms of a Failing Steering Column
Diagnosing a steering column problem can be tricky, as symptoms can sometimes mimic suspension or steering rack issues. Here are the most common signs specific to the column itself.
| Symptom | Description |
|---|---|
| Power Adjustment Failure | The steering wheel will not move up/down (tilt) or in/out (telescope) when using the control switch. Often, only one function fails. You might hear a faint click from the failed motor. |
| Clunking or Knocking Noise | A distinct knock or clunk is heard and felt through the steering wheel, especially when turning at low speeds or while stationary. This often points to worn internal components like the steering shaft U-joints or bushings. |
| Rattling Over Bumps | A rattling sound that seems to come from directly behind the steering wheel when driving on uneven surfaces. This can sound like something is loose inside the column covers. |
| Groaning or Grinding Noise | A groaning or grinding sound occurs when the power tilt/telescope is operating. This indicates a failing motor or a problem with the drive mechanism. |
| Ignition Key Won't Turn | The steering lock mechanism inside the column can jam, preventing the key from turning in the ignition. While wiggling the steering wheel can sometimes free it, a persistent issue points to a failure in the lock assembly. |
Buying a Used 2001 Lexus LS430 Steering Column
Given the high cost of a new OEM steering column, a used unit is often the most practical solution. However, it's critical to inspect a recycled part carefully to avoid buying someone else's problem.
Warning: This steering column assembly is for floor shift models with power tilt and telescope. It does not include the steering wheel, airbag, or the clockspring. Ensure the part you are buying is from a 2001-2003 LS430 to ensure compatibility.
What to Check Before You Buy
- Test the Motors: If possible, have the seller connect a 12V power source to the tilt and telescopic motor connectors to verify they operate smoothly in both directions. The tilt motor (Part No. 89231-50050) and telescopic motor (Part No. 89232-50041) are the most valuable parts of the assembly.
- Check for Shaft Play: Hold the main column housing steady and try to wiggle the steering shaft. There should be no excessive play or clunking. Any looseness indicates worn internal bearings or U-joints, which is one of the main reasons for replacement.
- Inspect the Wiring: Check all electrical connectors and wiring harnesses for cuts, fraying, or damage. A damaged connector can be very difficult to repair.
- Verify Part Numbers: The primary OEM part number for the complete assembly for a 2001-2002 LS430 is 45250-50160. Another number, 45205-30320, may refer to a sub-assembly. Always match the part number from your original column if possible.
- Ask About the Donor Vehicle: Inquire about the mileage of the vehicle the column came from. Lower mileage is always better, as the motors and bushings will have less wear. Also, confirm the donor vehicle was not in a frontal collision, which could have damaged the column.
Cost of Replacement
Replacing the steering column is a significant repair, primarily due to the high cost of a new OEM part. A used OEM column offers substantial savings.
| Part Type | Estimated Cost | Notes |
|---|---|---|
| New OEM (Complete Assembly) | $1600 - $2400+ | Extremely expensive and may be discontinued or have a long lead time. |
| New OEM (Motors Only) | $650 - $700 (per motor) | The individual adjust motors can be purchased, but are still very costly. |
| Used OEM | $75 - $350 | Offers the best value. Price depends on condition and seller. |
| Shop Labor | $300 - $500+ | Labor involves removing the steering wheel, airbag, and trim, which can take 2-4 hours. |
Replacement Difficulty
Rating: 4 out of 5
This is an advanced DIY job. While it doesn't require many special tools, it involves critical safety steps and intricate disassembly. The most challenging part is safely handling the airbag and carefully removing trim without causing damage. The column itself is heavy and must be aligned correctly with the intermediate steering shaft upon installation.
Warning: You MUST disconnect the battery for at least 15 minutes before starting work to disable the Supplemental Restraint System (SRS). Failure to do so could result in accidental airbag deployment, which can cause serious injury.
Frequently Asked Questions (FAQ)
Can I just replace the bad motor instead of the whole column? 🎬 See how to replace the LS430 tilt motor step-by-step
Yes, the tilt and telescopic motors can be replaced individually. This is a more cost-effective repair if the rest of your column is in good shape (i.e., no clunking or looseness). However, the motors themselves are still expensive when purchased new. A used motor is a good option.
My steering wheel clunks but the power functions work. What's wrong?
A clunking or rattling noise usually points to mechanical wear inside the column, such as worn bushings or a failing steering shaft U-joint. In this case, replacing the entire steering column assembly with a good used unit is often the most effective and permanent solution, as disassembling the column to replace individual bushings is extremely complex.
Does a replacement steering column need to be programmed?
No, the steering column assembly itself does not require any programming or calibration. It is a direct mechanical and electrical replacement.
My tilt works but my telescope doesn't. Is it a fuse?
It is unlikely to be a fuse. The tilt and telescopic motors typically share the same fuse and power circuit. If one function works and the other doesn't, the problem is almost certainly the failed motor, its wiring, or the control switch.
Helpful Videos
Technical Specifications
OEM Part Numbers: 45250-50160 45205-30320 89231-50050 (Tilt Motor) 89232-50041 (Telescopic Motor)
Fits floor shift models with power tilt and telescopic steering. Does not include steering wheel, airbag, or clockspring.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
