2003-2009 Range Rover Steering Column Module: Tilt/Telescope Failure & Key Issues
This guide covers the common failures of the L322 Range Rover's steering column control module, including power adjustment loss and ignition problems, with critical differences between 2003-2005 and 2006-2009 models.
- The most critical failure is the steering lock module preventing the key from turning, which can strand the vehicle.
- A replacement module, new or used, MUST be programmed to the vehicle by a dealer or specialist shop. It is not a plug-and-play part.
- There are two distinct electronic systems: 2003-2005 (BMW) and 2006-2009 (Jaguar/Ford). Parts are not interchangeable.
- Failure of the power tilt/telescope is often a mechanical issue (broken plastic clip, seized spindle) rather than a bad motor.
Key Differences: BMW vs. Jaguar/Ford Electronics
The 2003-2009 (L322) Range Rover generation spans two completely different electronic architectures, which is critical when diagnosing or replacing the steering column module.
- 2003-2005 Models: These vehicles use a BMW-based electrical system. The steering column module is a BMW part, often shared with the BMW E53 X5. These modules are part of the vehicle's anti-theft system and are linked to the ignition switch.
- 2006-2009 Models: These vehicles use a Jaguar/Ford-based electrical system with a MOST (Media Oriented Systems Transport) fiber-optic network. The steering column module is a different design and has different programming requirements. A common issue on these later models is a failure within the column that prevents the key from turning.
Warning: The modules and many related components are NOT interchangeable between the early (BMW) and later (Jaguar/Ford) L322 models. Always verify part numbers against your vehicle's VIN and the number on your original part.
Symptoms of a Failing Steering Column Control Module
Failure of the steering column module or related components can manifest in several ways, ranging from minor annoyances to preventing the vehicle from starting.
- Power Tilt/Telescope Failure: The most common symptom is the loss of the power adjustment feature in one or both directions (up/down or in/out). This can be caused by a failed motor, a stripped plastic gear or clip within the column, or a fault in the control module itself. Sometimes the spindle that moves the column seizes and can be freed with lubricant.
- Key Will Not Turn in Ignition: A prevalent and serious issue, especially on 2006-2009 models, is a failure in the steering column lock mechanism. The vehicle's anti-theft system does not receive the correct signal from the column, and it prevents the ignition key from turning, leaving you stranded. A temporary fix often involves pulling fuse 18 in the glove box to reset the system for a single start.
- Steering Wheel Buttons Inoperative: Failure of the cruise control, audio volume, or horn buttons can be linked to the control module or the clockspring (also called a rotary coupler) that connects the wiring through the rotating steering wheel.

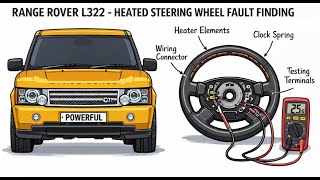

- Heated Steering Wheel Not Working: While often controlled by a separate small ECU within the steering wheel itself, power and signals for this function pass through the column. A common symptom is the indicator light turning on for a moment and then going off, which indicates the ECU has detected a fault with the heating element or temperature sensor. 🎬 See this heated steering wheel troubleshooting guide
- Floppy or Loose Steering Column: In some cases, physical components inside the column break, such as the plastic forks on the adjustment carriage, causing the entire steering wheel to feel loose or flop around.
Known Issues, TSBs, and Recalls
Land Rover has issued Technical Service Bulletins (TSBs) related to the steering column on these models.
- TSB LTB00033 / LTB00033NAS2: This bulletin addresses multiple steering column issues requiring replacement, including an inoperative tilt mechanism, problems with the steering column lock, and damage to the reach (telescope) spindle threads.
- TSB LTB-00497-NAS: This TSB specifically points to noise from the steering column reach motor, which may be caused by a lack of lubrication on the spindle or an internal motor fault.
While there are no specific NHTSA recalls for the steering column control module itself, there was a significant recall (NHTSA ID: 08V635000) for 2003-2005 models concerning the front propeller shaft, which could lead to a loss of drive. It is important to ensure this recall has been performed on any early L322.
Buying a Used Steering Column Control Module
Given the high cost of a new steering column assembly from the dealer, a used OEM part is a popular choice. However, there are critical factors to consider.
Warning: The steering column module is linked to the vehicle's anti-theft and ignition system. A used module may need to be 'virginized' (reset to a factory state) and then programmed to your vehicle's VIN and key data.
- Verify Part Numbers: This is the most important step. The part number on the replacement module MUST match the one on your original part. The primary Land Rover part number for the early, BMW-era module is YWB000050, which corresponds to BMW part numbers like 61356943838.
- Inspect for Physical Damage: Check the plastic housing for cracks and ensure all electrical connector pins are straight and free of corrosion. Be wary of units with holes drilled into them, as this is a sign of a failed DIY repair attempt that often causes more damage.
- Programming Requirements: A used module cannot simply be swapped in. It must be electronically coded or programmed to your vehicle. This is not a simple DIY task. You will likely need a specialist independent shop with advanced tools like Autologic or a dealer to perform the programming. Some companies specialize in 'unlocking' or 'virginizing' used modules so they can be reprogrammed.
- Consider a Repair Service: Several specialists offer repair services for your existing column, which can be a reliable alternative to buying a used part of unknown history. This avoids the need for programming as the original, coded module is retained.
- Steering Lock Emulators: For the common 'key won't turn' issue, aftermarket steering lock emulators are available. These devices plug into the vehicle's wiring and mimic the signal of a functioning steering lock, providing a permanent bypass. This is a cost-effective solution that avoids replacing the entire column but permanently disables the steering lock function. 🎬 Watch: How to install a steering column bypass
Cost Breakdown
Prices can vary significantly based on the required part and labor complexity.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Steering Column Assembly (Dealer) | $4,000 - $5,000+ |
| Used OEM Steering Column Assembly | $500 - $1,500 |
| Repair Service (for original column) | $400 - $800 |
| New OEM Tilt/Telescope Motor | ~$750 |
| Shop Labor (Replacement & Programming) | $400 - $1,200+ |
Frequently Asked Questions
Does a replacement steering column module need to be programmed?
Yes, absolutely. The module is part of the vehicle's security system. A new or used module must be programmed to the vehicle's VIN and synchronized with the immobilizer and keys. This typically requires dealer-level diagnostic tools or specialized equipment from an independent Land Rover expert.
My key won't turn. Is it the ignition switch or the steering column?
More often than not, this is a failure of the electronic steering column lock module, not the mechanical ignition switch. The system fails to verify that the column is unlocked, preventing the key from turning as a safety measure. A temporary fix is to pull fuse 18 from the glovebox fuse panel, wait a minute, and reinstall it. This often allows a single start.
Can I just disable the automatic 'easy entry' tilt/telescope feature to prevent wear?

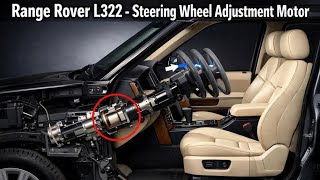

Yes. The constant movement from the easy entry/exit feature is a major cause of wear on the adjustment motors and mechanisms. This feature can be disabled using an advanced diagnostic tool like the GAP IIDTool by modifying the Car Configuration File (CCF). 🎬 Watch: Diagnosing steering column motors with GAP IID This is a highly recommended preventative measure on high-mileage vehicles.
My steering wheel won't move up/down or in/out. Is the motor bad?
It could be a bad motor, but it is also commonly a mechanical failure. The plastic clips holding the motor assembly can break, or the threaded spindle can seize or strip. In some cases, lubricating the spindle can restore function. Before replacing the motor, it's wise to remove the lower column shroud to inspect the mechanical components for damage.
Helpful Videos
Technical Specifications
OEM Part Numbers: YWB000050 61354101593 61356904243 61356943838 QME500070
Controls power tilt/telescope functions, integrates with vehicle immobilizer and ignition lock. Early models (2003-2005) use BMW electronics; later models (2006-2009) use Jaguar/Ford electronics.
