2020-2021 BMW X5 (G05) Steering Column: Noises, Adjustment Failures, and Replacement Guide

Understanding the Components: Column vs. Switch Cluster (SZL)

When diagnosing steering column issues in a G05 X5, it's crucial to understand there are two main components that can fail independently. Misdiagnosing the problem can lead to buying the wrong part.

• The Steering Column Assembly: This is the main mechanical structure, which includes the shaft and the electric motors for tilt and telescope adjustments. Failures here are typically mechanical or related to the adjustment motors. The primary OEM part number for this assembly is 32306894879, which supersedes earlier numbers like 32306862001.
• The Steering Column Switch Cluster (SZL): Often called the clockspring, this is a separate electronic module that mounts to the column. It contains the steering angle sensor and the physical stalks for wipers and turn signals. A common part number is 61319436673. Failures here are purely electronic and often affect multiple functions at once.

Symptoms of a Failing Steering Column or SZL

Symptoms can point to which component is at fault. Failures are almost always related to the electronic convenience features, not the core ability to steer the vehicle.

Symptoms of a Bad Steering Column Assembly

• Power Adjustment Failure: The most common issue is the steering wheel getting stuck in one position. It may fail to move up, down, in, or out when using the adjustment switch or when the easy entry/exit feature is activated.

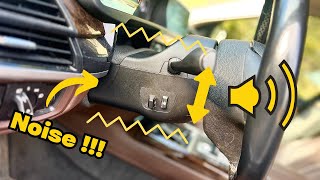

• Grinding or Groaning Noises: A loud groaning, grinding, or "machine gun" type sound may be heard when the adjustment motors are operating. This often points to an issue with the internal spindle drive. BMW issued Technical Service Bulletin (TSB) SIB 32 04 20 to address this specific noise.
• Stuttering or Intermittent Movement: The column may move in short, jerky motions instead of a smooth, continuous adjustment.
• Failure in High Heat: The power adjustment may stop working when the vehicle's cabin is very hot. This is a known issue addressed by TSB SIB 32 03 20, pointing to a fault in the control unit.

Symptoms of a Bad Steering Column Switch Cluster (SZL)

• Stability Control (DSC/ABS) Warning Lights: The SZL houses the steering angle sensor. If this sensor fails, the car loses track of the steering wheel's position, triggering stability and traction control warnings on the dashboard.
• Horn, Wipers, or Turn Signals Not Working: Since the controls for these functions pass through the SZL, a failure of the unit can cause them to stop working entirely.
• Airbag Warning Light: The clockspring portion of the SZL provides the electrical connection to the driver's airbag. A fault in this connection will illuminate the airbag warning light.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While widespread failures are not common, several recalls and TSBs have been issued for the G05 X5's steering system. These recalls affected very small numbers of vehicles but are important to be aware of.

• NHTSA Recall 20V-434: Affected just 7 vehicles from the 2019-2020 model years. The steering column shaft bearing plate may have been improperly attached at the factory, potentially leading to a loose steering column.
• NHTSA Recall 21V-031: On a small number of 2021 models, the steering column's universal joint connection may not have been tightened to specification, which could also affect vehicle control.
• TSB SIB 32 04 20: Addresses a "groaning" noise during height adjustment. The procedure involves adjusting the spindle drive. If the adjustment does not fix the noise, the entire steering column assembly must be replaced.
• Cupholder Leak Damage: A notable design issue on the G05 X5 is that the cupholders are not sealed. Spilled liquids can drip directly onto sensitive electronic modules located below, including those that control steering functions, potentially causing failures of the horn, wipers, and turn signals.

Buying a Used Steering Column: A Buyer's Guide

Given that a new OEM steering column can cost thousands of dollars, a used OEM unit is an excellent value. However, careful selection is critical to ensure compatibility and function.

1. Identify the Correct Part

First, diagnose your symptoms. Is it a mechanical noise or adjustment failure (likely the column) or an electronic issue with warning lights and dead switches (likely the SZL)? Purchase only the component you need.

2. Match Part Numbers and Vehicle Options (Crucial)

This is the most important step. BMW uses different steering columns and SZL units based on the vehicle's factory options. A part from a vehicle with different options will not work correctly. You MUST match the part to your vehicle's specific configuration.

• Heated Steering Wheel (Option Code S248A): Columns and SZLs are different for cars with and without this feature.
• Driving Assistant Professional (Option Code S5AUA): This advanced driver-aid system requires specific components in the steering column and SZL. A part from a car without this option will cause errors.

3. Physical Inspection

When inspecting the used part, look for:

• No Crash Damage: Check for any signs of bending, cracking, or stress marks on the main shaft and mounting points.
• Intact Connectors: All electrical connectors should be clean, dry, and free of damage. Bent pins or cut wires are major red flags.
• No Liquid Damage: Be especially wary of any corrosion or sticky residue on the electronics, which could indicate a spill from the cupholder issue.

Installation and Calibration

Replacing the steering column or SZL is a complex job not recommended for beginners.

• Difficulty: 4 out of 5.
• Safety First: The procedure requires disconnecting the battery and carefully handling the driver's airbag. Improper handling of an airbag is extremely dangerous.
• Mandatory Calibration: After installation, the Steering Angle Sensor (SAS) MUST be calibrated using a compatible diagnostic tool. 🎬 Watch: How to calibrate the steering angle sensor Skipping this step will leave the DSC/ABS and other safety systems inoperative and will result in dashboard warning lights.
• Coding: In some cases, the new module may need to be electronically coded to the vehicle's VIN to accept all the features.
