Audi A4, S4, A5, RS4 (2003-2012) Steering Column: Diagnosing Lock Failures & Notchy Steering

Vehicle Fitment & Platform Differences: B6/B7 vs. B8

Before diagnosing any issue, it's essential to understand that this guide covers two distinct Audi platforms. The steering columns are not interchangeable between them.

Symptoms of a Failing Steering Column

Failures can be broadly split into two categories: electronic (which often prevents the car from starting) and mechanical (which affects steering feel and noise while driving).

Electronic Failure Symptoms (Common on B8 Platform)

The most common issue on the B8 platform (A4, S4, A5, S5) is the failure of the Electronic Steering Column Lock (ESCL) module, also known as the J518 or J764 module. This module is part of the anti-theft system.

• "Steering Column Lock Defective" Warning: A yellow or red warning message appears on the instrument cluster.
• No-Start Condition: The most frequent symptom. You can insert the key, but the ignition will not turn on, and the engine will not crank.
• Clicking Noise on Key Entry: You may hear a click from the steering column area when inserting the key, but the steering wheel remains locked and the car does not start.
• Related Fault Codes: A diagnostic scan will often show codes like 00288 (Steering Lock Actuator N360) or 02811 (Steering Column Lock Control Module J764).

Mechanical Failure Symptoms (All Platforms)

These symptoms relate to physical wear and tear on the column, bearings, or the connected intermediate shaft.

• Notchy or Binding Steering: The steering feels tight or sticky in certain spots as you turn the wheel, then loosens up. This is a classic symptom of a seized universal joint (U-joint) on the intermediate steering shaft, which connects the column to the steering rack.
• Grinding or Clunking Noises: Audible clicks, pops, or grinding sounds that happen when you turn the steering wheel often point to worn internal bearings in the column.
• Loose Steering Feel: Excessive play or a "wobbly" feeling in the steering wheel, where small movements don't immediately translate to the wheels, can indicate worn internal components.
• Squeaking from Firewall: A rubbing or squeaking noise heard when turning at low speeds can be caused by a dry seal where the intermediate shaft passes through the firewall. Audi issued a Technical Service Bulletin (TSB #481566) for this specific issue.
• Tilt Adjustment Fails: The steering wheel no longer locks securely in its tilted position.

Known Issues, TSBs, and Recalls

• No Major Recalls: As of this writing, there are no major NHTSA safety recalls for the steering column itself on these specific models. However, numerous Technical Service Bulletins (TSBs) have been issued for related problems.
• TSB for Squeaking: Audi issued TSBs (e.g., A4821962055733_2) for squeaking noises from the steering column area, often resolved by repositioning or lubricating the intermediate shaft and its firewall seal.
• TSB for Electronic Steering Lock: TSBs exist to address the "Steering Column Lock Defective" warning and associated fault codes, sometimes involving a software update before hardware replacement.
• TSB for Damaged Adjustment Stop: TSB 2073237 addresses a condition where the column can be pushed in too far due to a damaged longitudinal stop, often caused by using excessive force during adjustment. This can result in a no-start condition.

Compatibility Check: Servotronic (1N3) vs. Dynamic Steering (1N7)

This is the single most important compatibility check you must perform. These vehicles were offered with different steering systems that use different, non-interchangeable steering columns and racks.

• Servotronic (Option Code 1N3): This is the standard speed-sensitive power steering system. It provides more assist at low speeds (like parking) and less at highway speeds for better stability. Most vehicles are equipped with this.
• Dynamic Steering (Option Code 1N7 or 1N8): This was an optional, more advanced system that can vary the steering ratio itself—meaning fewer turns of the wheel are needed at low speeds than at high speeds.

How to Check:

1. Vehicle Build Sticker: Look for a paper sticker in your owner's manual or in the spare tire well in the trunk. It lists all the 3-digit option codes for your car. Look for `1N3` or `1N7`/`1N8`.
2. MMI Menu (B8 Platform): On some B8 models, you can check for Dynamic Steering settings within the Audi MMI system under 'Car' or 'Vehicle' settings.

Buying a Used Steering Column: A Smart Buyer's Checklist

Buying a used OEM steering column can be a very cost-effective repair, especially for the common electronic lock failure on B8 models where the mechanical column is often perfectly fine. Here’s what to look for.

1. Confirm the Platform: First, ensure you are buying a column from the correct platform. Match `8E0...` part numbers for B6/B7 cars and `8K0...` part numbers for B8 cars.
2. Verify Steering System: Confirm the donor vehicle had the same steering system (Servotronic 1N3 or Dynamic 1N7). Ask the seller to verify the option code if possible. Do not buy a column if you cannot confirm this.
3. Inspect the U-Joints: Check the universal joints on the lower shaft. They should move freely in all directions without binding or notchiness. If they are stiff, you will likely inherit the same steering feel issues.
4. Check Connectors: Ensure all electrical connectors are intact and not cracked or damaged. Damaged connectors can be difficult to repair.
5. What's Included? Clarify what comes with the column. Most used columns are sold "bare," meaning they do not include the clock spring, steering angle sensor, or control stalks (wiper, cruise). You will typically need to transfer these parts from your old column.

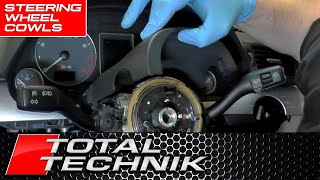

🎬 Watch: B6/B7 steering wheel and column switch removal guide
6. VIN Splits: For early B6 models (2003), be aware of a VIN split. Some parts are only for vehicles up to VIN 8E3380000. The initial data also noted a VIN split for 2004 models up to VIN 24834, particularly for convertibles. Always double-check compatibility for these years.

Cost Comparison for Steering Column Replacement

Replacement Overview & Calibration

• Difficulty: 4 out of 5. This is a complex job not recommended for beginners. It involves safety-critical components like the airbag and requires electronic calibration.
• Key Steps: The general process involves disconnecting the battery, carefully removing the driver's airbag, removing the steering wheel, removing the plastic column shrouds and switches, and unbolting the column from under the dashboard and from the intermediate shaft in the footwell.
• MANDATORY CALIBRATION: After installing the new column and transferring the steering angle sensor (G85), the sensor must be calibrated with a diagnostic tool like VCDS (VAG-COM) or similar. Skipping this step will leave ABS and ESP warning lights on, and these crucial safety systems will not function correctly.
