2004-2008 Mazda RX-8 Rear Spoiler: Brake Light Failures, Paint Matching, and Installation

Anatomy of the 2004-2008 RX-8 Factory Spoiler

For the Series 1 (S1) Mazda RX-8, there were two main factory rear spoiler options: a low-profile lip spoiler and the more common, larger '2-post' or 'wing' style spoiler. This guide focuses on the larger wing spoiler, which was a popular option on Sport, Touring, and Grand Touring trims. This spoiler is typically made from blow-molded ABS plastic, designed to be lightweight and durable. Its most important functional component is the integrated LED third brake light, which is a frequent point of failure.

Common Problems & Failure Symptoms

While a spoiler is a simple component, it is exposed to the elements and can develop issues over time. The most significant problems are related to the third brake light wiring and physical deterioration.

1. Third Brake Light Failure

This is the most common and serious issue. The wiring harness that powers the third brake light runs along the trunk hinge. After years of opening and closing the trunk, the wires inside this harness can fatigue, fray, and eventually break. In some cases, the broken wires can short against each other, potentially blowing a fuse or causing other electrical issues.

• Symptom: The third brake light does not illuminate when the brakes are applied, while the main two brake lights work correctly.
• Diagnosis: Before replacing the bulb, inspect the wiring harness located on the left (driver's side) trunk hinge. 🎬 Watch this guide on replacing the RX-8 third brake light harness Peel back the rubber conduit and check for broken or frayed wires. This is the cause more often than a burnt-out bulb.

2. Paint and Clear Coat Degradation

Like any painted body part, the spoiler is susceptible to sun damage. Over time, the clear coat can begin to peel, bubble, or fade, leading to a dull or patchy appearance. This is a cosmetic issue but is very common on cars of this age.

3. Cracks and Physical Damage

Stress cracks can form around the mounting points, especially if the spoiler was over-tightened during installation. Impact from debris or minor accidents can also cause the plastic housing to crack or break.

Buying a Used 2004-2008 RX-8 Spoiler: A Buyer's Checklist

A used OEM spoiler is an excellent way to save money, but careful inspection is key. Use this checklist to avoid common pitfalls.

1. Verify the Third Brake Light: If possible, ask the seller to test the light with a 12V power source. If not, assume it may need repair and inspect the wiring harness pigtail for any signs of damage or previous repairs. The bulb itself is a standard 7440 type.
2. Check for Cracks: Closely inspect the entire spoiler, paying special attention to the areas around the bolt holes (on the underside). Minor surface scratches are acceptable, but deep cracks compromise the part's integrity.
3. Inspect the Paint: Check for clear coat peeling, fading, or bubbling. If the paint is in poor condition, factor in the cost of a repaint.
4. Confirm Paint Code Match: Before you buy, find your car's paint code. It is located on a sticker in the driver's side door jamb. The code is typically a two or three-character mix of letters and numbers (e.g., 32S for Galaxy Gray Mica, 34K for Winning Blue Metallic). Buying a spoiler that already matches your paint code will save you hundreds of dollars.
5. Get All the Hardware: Ensure the sale includes the original mounting bolts and any gaskets or seals. Sourcing missing hardware can be difficult.

Known Issues, TSBs, and Recalls

There are no recalls or Technical Service Bulletins (TSBs) specifically for the rear spoiler itself. However, the 2004-2008 Mazda RX-8 was subject to several major safety recalls, including for fuel pump leaks that pose a fire risk and for faulty airbag inflators. When inspecting any RX-8, it is critical to verify with a Mazda dealer or through the NHTSA website that all applicable recalls have been performed.

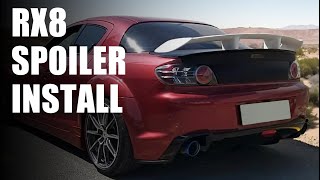

Installation Guide & Difficulty

• Difficulty Rating: 3 out of 5
• Estimated Time: 1.5 - 2.5 hours
• DIY Feasible: Yes, for those comfortable with precise measuring and drilling.

Installing a factory spoiler on an RX-8 that did not come with one requires drilling holes in the trunk lid. This is the most critical part of the installation. While some aftermarket spoilers come with a paper template, many used OEM spoilers will not.

General Steps:

1. Gather Measurements: If you don't have a template, you must carefully measure the bolt locations on the spoiler and transfer them to the trunk lid. Some owners create their own template by putting paint or grease on the spoiler's mounting studs and carefully lowering it onto the trunk to mark the drill points.
2. Drill Pilot Holes: Once you are certain of the locations, use a small drill bit to create pilot holes. Double-check all measurements.
3. Drill Final Holes: Use a step drill bit to enlarge the holes to the correct size for the mounting bolts.
4. Prevent Rust: Apply touch-up paint to the bare metal around the newly drilled holes to prevent future rust. This is a critical step.
5. Wire the Brake Light: Route the spoiler's wiring harness through the trunk lid and connect it to the vehicle's third brake light circuit. You may need to splice into the existing wiring if the car was not pre-wired.
6. Mount the Spoiler: Use the gaskets and bolts to secure the spoiler to the trunk. Do not over-tighten, as this can crack the plastic.

Cost Comparison: New vs. Used vs. Aftermarket

OEM Part Numbers & Compatibility

The following OEM part numbers are associated with the factory wing spoiler for the 2004-2008 Mazda RX-8. The final digits often correspond to a specific paint code.

• F151-V4-920F-91
• FE15-51-960B-64
• FE15-51-960B-80
• FE1551960B
• FE1551960B74
• FE15-51-960B-91
