2013-2017 Audi S5 Instrument Cluster: A Guide to Failures, Component Protection, and Replacement
This in-depth guide covers common S5 instrument cluster problems, from screen failure to the critical anti-theft programming required for any replacement.
- Any replacement cluster (new or used) MUST be programmed to the vehicle by a dealer or specialist to remove 'Component Protection'. The car will not function correctly without this step.
- The most common failure is the central LCD screen. Repairing your original cluster's screen is often the cheapest option as it avoids the need for programming.
- Compatibility is crucial. You must match the part number and ensure the replacement cluster is for the correct cruise control system (standard vs. Adaptive Cruise Control).
- A faulty cluster can prevent the car from starting due to its integration with the immobilizer system.
Symptoms of a Failing Instrument Cluster
A faulty instrument cluster in an Audi S5 can manifest in several ways, ranging from minor annoyances to issues that can make the vehicle undrivable. Understanding these symptoms can help you diagnose the problem correctly.
Failing Center LCD Screen
The most common failure point on these clusters is the central color LCD screen. Symptoms include:
- Pixelated or Garbled Display: The text and images on the screen become distorted or unreadable.
- Dim or Fading Screen: The display loses brightness, making it difficult to see, especially in daylight.
- Lines on the Screen: Horizontal or vertical lines appear across the display.
- Completely Blank Screen: The center screen fails to turn on at all, even though the analog gauges still work.
Pro Tip: If only the center screen has failed, you can often send your original cluster to a specialist for repair. They can replace the LCD screen without needing to reprogram the entire unit, which is significantly cheaper than replacing the whole cluster.

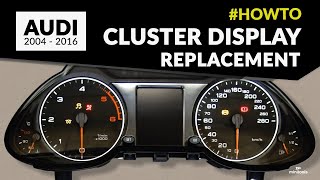

🎬 See how to repair a blank LCD displayGauge and Backlight Issues
Problems can also affect the physical gauges and their lighting:
- Erratic or Stuck Needles: The speedometer, tachometer, fuel, or temperature gauges may provide incorrect readings, jump around erratically, or get stuck in one position.

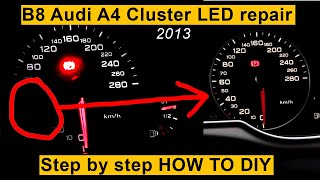

- Backlight Failure: The illumination behind the analog gauges may fail, making them impossible to read at night.
Complete Cluster Failure
In more severe cases, the entire cluster can fail electronically.
- Intermittent or Total Power Loss: The cluster may randomly shut off and turn back on while driving, or it may be completely dead and unresponsive.
- Immobilizer Active / No-Start Condition: Because the immobilizer is tied to the cluster, a complete failure can prevent the car from starting. The engine may crank but not fire up, and you may see an immobilizer warning light.
- Multiple Warning Lights: A failing cluster can disrupt network communication, causing an array of unrelated warning lights for systems like ABS, airbags, or traction control to appear.
Associated OBD-II Codes
While many cluster issues won't trigger a standard check engine light, a full system scan with a proper diagnostic tool can reveal specific fault codes. Look for codes stored in the Instrument Cluster Control Module (Address 17). Common codes include:
- B200096 (or similar B-codes): Often indicates an internal fault within the instrument cluster module.
- B174404: A specific code pointing to a faulty multi-function display.
- U-prefix Codes (e.g., U0155): These indicate a loss of communication with the instrument cluster, pointing to a network or power issue with the unit.
- P1650: Data-bus-drive train missing message from instrument cluster.
The Critical Issue: Component Protection
Replacing the instrument cluster in an Audi S5 is not a simple plug-and-play job. These vehicles are equipped with an anti-theft system called Component Protection (CP). This system links major electronic modules, including the instrument cluster, to the vehicle's unique VIN at the factory.
Warning: If you install a used or new instrument cluster, it will enter a restricted "safe" mode. Functionality will be severely limited—the odometer will not display correctly, some features will be disabled, and a "Component Protection Active" message may appear. The vehicle may not start due to the immobilizer mismatch.
Removing Component Protection
To restore full functionality, the replacement cluster must be adapted to your vehicle by an authorized facility. This process removes the Component Protection lock.
- Who Can Do It: This procedure must be performed by an Audi dealership or a qualified independent specialist who has a licensed subscription to Audi's ODIS (Offboard Diagnostic Information System) software and a GEKO online account.
- The Process: The technician connects the vehicle to Audi's factory servers. The server verifies that the part is not from a stolen vehicle and then adapts the replacement cluster's identity to your car's VIN. 🎬 Watch: How to adapt a cluster using ODIS
- What Doesn't Work: Standard diagnostic tools like VCDS (VAG-COM) or OBDEleven cannot remove Component Protection.
Buying a Used Speedo Head/Cluster
A used OEM cluster is an excellent, cost-effective alternative to a new part, provided you follow these essential steps.
- Verify the Part Number: The most important step is to match the OEM part number exactly. Known part numbers for this vehicle include 8T0-920-983-P, 8T0920983P, and 8T0920984F. Check the label on your original cluster to find the correct number.
- Confirm Cruise Control Compatibility: This is a critical compatibility check. These clusters come in two main variants: one for vehicles with standard cruise control and another for vehicles with Adaptive Cruise Control (ACC). They are not interchangeable. Ensure the donor part matches your vehicle's options.
- Inspect the Lens and Screen: Before buying, carefully inspect the clear plastic lens for deep scratches or hazing. If possible, ask the seller to confirm the center LCD screen is free of dead pixels or discoloration, although this can be hard to verify without power.
- Mileage is Not a Factor: The mileage displayed on the used cluster is irrelevant. During the Component Protection removal process, the technician is legally required to program the cluster to reflect your vehicle's true mileage.
- Factor in Programming Costs: Remember that the price of the used part is not the final cost. You MUST budget for professional programming, which can cost several hundred dollars. Call local Audi specialists or your dealer for a quote on programming a customer-supplied cluster *before* you buy the part.
Cost Comparison for Replacement
Costs can vary significantly based on the chosen solution. All prices are estimates and can change based on location and supplier.
| Item or Service | Estimated Cost | Notes |
|---|---|---|
| New OEM Cluster (Part Only) | $1,000 - $1,500+ | Ordered from an Audi dealer. |
| Used OEM Cluster (Part Only) | $200 - $600 | Price depends on condition and availability. |
| Repair Service (e.g., LCD replacement) | $200 - $400 | Your original cluster is repaired. Avoids programming costs. |
| Shop Labor (Physical Installation) | $100 - $200 | The time to physically swap the unit in the dashboard. |
| Shop Labor (Programming) | $200 - $500 | The cost for Component Protection removal and odometer correction at a dealer or specialist. |
Frequently Asked Questions (FAQ)
Can I replace the instrument cluster myself?
You can perform the physical installation yourself, which involves removing some dashboard trim and a few screws. 🎬 Watch: How to remove the dash clocks However, the car will not be fully functional until the cluster is professionally programmed to remove Component Protection.
Will my car start after I install a used cluster?
It might not. The instrument cluster is part of the immobilizer system. A mismatch between the cluster and the car's keys can prevent the engine from starting as an anti-theft measure.
Does the mileage on the used cluster have to be lower than my car's?
While the mileage will be corrected during programming, some technicians prefer working with a donor cluster that has lower mileage than the recipient vehicle. However, the most important factor is that the programming is done correctly by a professional who can set the odometer to the vehicle's actual mileage.
Can a locksmith program the new cluster?
Generally, no. While locksmiths can program keys, removing Audi's Component Protection requires a secure, online connection to Audi's factory servers via the ODIS/GEKO system, which is typically only available at dealerships and highly specialized VAG (Volkswagen Auto Group) repair shops.
Are there any recalls for the 2013-2017 S5 instrument cluster?
No, there are no active recalls specifically for the instrument cluster on the 2013-2017 Audi S5. There have been recalls for other vehicle components like airbags and coolant pumps for this model range.
Helpful Videos
Technical Specifications
OEM Part Numbers: 8T0-920-983-P 8T0920983P 8T0920984F
Color Multi-Function Display (MFD), CAN bus integration, Integrated Immobilizer with Component Protection.
