1996 Audi A4 Cluster Failure: A Guide to Pixel Repair, Swaps, and Immobilizer Issues

Critical Compatibility Warnings for 1996 Models

The 1996 Audi A4 was the first model year for the B5 platform, and it has several unique characteristics. Sourcing a replacement instrument cluster is not straightforward. Before purchasing a used unit, you must understand these three critical points:

1. Part Number and Model Year are Crucial

The 1996 A4 uses a specific cluster design with unique electrical connectors on the back. Clusters from 1997 or later models have different connectors and are not plug-and-play. You must match the OEM part number from your original cluster exactly. Even within the 1996 model year, there can be variations between clusters made by VDO and those made by Jaeger/Magneti Marelli.

2. Immobilizer System Complications

The anti-theft immobilizer system prevents the car from starting without a correct key. For the 1996 US-market A4, the immobilizer is typically a separate, standalone white box located under the driver's side dash. This is known as an "Immo 1" system. In these cars, the cluster can often be swapped without special programming. However, some international models and later B5 A4s have the immobilizer integrated directly into the instrument cluster ("Immo 2"). Swapping an Immo 2 cluster is a complex job that requires special tools like VAG-COM (VCDS) to extract security PIN codes from both the old and new clusters and adapt the replacement to your car's engine computer (ECU) and keys. Because of these variations, 🎬 Watch this guide explaining Audi immobilizer systems and bypass options it is safest to assume programming may be necessary and consult a specialist.

3. KPH vs. MPH Units

Many used clusters available online are from European or Canadian vehicles and will read in Kilometers Per Hour (KPH). The part numbers provided in the initial data (e.g., 8D0919033A, 8D0919033G) are commonly associated with KPH units. Ensure any replacement you purchase is an MPH unit intended for the US market. A US-market MPH cluster will have a part number such as 8D0919034F.

Common Failure Symptoms

Failures in the 1996 A4 cluster are common and usually easy to spot. The issues are almost always electronic rather than mechanical.

Failing Center Information Display (Pixel Failure)

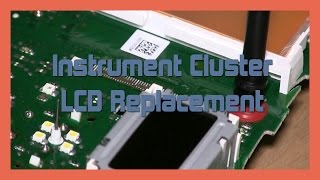

This is the most common problem. The central red LCD screen, which shows trip computer data, warnings, and radio information, begins to lose pixels. It may start with a few missing lines and get progressively worse, especially in hot weather, until the screen is unreadable. In some cases, the screen may go completely blank or flicker.

Erratic or Dead Gauges

One or more of the main analog gauges—speedometer, tachometer, fuel, or temperature—may behave erratically or stop working entirely. The fuel and temperature gauges are frequently cited as failing first. This can be caused by failing stepper motors inside the cluster or bad solder joints on the circuit board.

Complete Cluster Failure or Flashing

In more severe cases, the entire cluster may lose power intermittently or permanently. You might notice all gauges and lights flashing on startup, sometimes accompanied by a buzzing noise from the cluster itself. This can also cause a parasitic battery drain, where the battery goes dead overnight.

Immobilizer Warning Light

If the car starts and then immediately shuts off after about two seconds, and you see a flashing key symbol on the dash, it indicates an immobilizer fault. While this can be caused by a bad key or the immobilizer box itself, a faulty instrument cluster can also be the root cause on vehicles where it's part of the system.

Buying a Used 1996 Audi A4 Instrument Cluster

Given the high cost of a new OEM cluster (which is likely no longer available from dealers) and the complexities of replacement, buying used is a popular option. However, it carries risks. For this specific part, repairing your original cluster is often a better choice.

If you must buy a used cluster, follow these steps:

1. Get Your Original Part Number: The cluster is removed by lowering the steering wheel, prying off the trim piece above it, and removing two Torx T20 screws. 🎬 See how to remove the Audi A4 B5 instrument cluster The part number is on a sticker on the back or top of the cluster housing.
2. Match the Part Number Exactly: Only purchase a used cluster with the identical OEM part number. Pay close attention to the final letters.
3. Verify MPH: Confirm with the seller that the unit is from a US-market car and reads in MPH.
4. Inspect the LCD: Ask for a picture of the cluster powered on, if possible, to check for pixel damage on the center screen. Assume that any used cluster of this age either has a failing LCD or will fail soon.

Replacement Cost Comparison

The cost to fix a faulty 1996 A4 cluster varies significantly depending on the approach.
