2004-2006 Volvo S80 Side Mirror: A Guide to Power-Fold, Puddle Lamps, and Connectors
This guide covers the common problems, feature variations, and critical compatibility checks for the 2004-2006 Volvo S80 side view mirror.
- The most critical step before buying is to verify your mirror's features (power-fold, puddle lamp, memory) and the pin count of its electrical connector.
- Mirrors from 2004-2006 S60 and V70 models can fit, but all features and the connector must be an identical match.
- The painted mirror cap can be swapped from your old mirror to the new one, saving you from having to paint the replacement part.
- A common failure is the mirror glass falling off due to degraded factory adhesive; often, only the glass needs to be replaced, not the entire assembly.
Key Variants and Compatibility Checks
Before purchasing a replacement side view mirror for a 2004-2006 Volvo S80, it is crucial to identify the exact features your car is equipped with. Mismatched features will result in functions not working or the mirror not connecting at all. These mirrors were also shared with the 2004-2006 Volvo S60 and V70, but all features must match for a successful swap.
- Power-Folding vs. Non-Power-Folding: Some S80 models came with mirrors that can fold in electronically by pressing the 'L' and 'R' buttons on the driver's door control panel simultaneously. A non-folding mirror will not work on a car equipped with the power-fold function, and vice-versa. Visually inspect your door switch for the correct graphics indicating this feature.
- Puddle Lamps: This is a small light on the bottom of the mirror housing that illuminates the ground. Check if your original mirror has this lamp. A replacement without the lamp will leave the feature inoperable.
- Heated Glass: Most North American models are equipped with heated mirror glass to clear away frost and fog. This is a standard feature to look for.
- Memory Function: Higher trim levels link the mirror position to the driver's seat memory settings. This is controlled by the car's computer and requires a compatible mirror assembly.
Warning: The most critical check is the electrical connector. These mirrors can have different pin counts (number of wires) in the main plug. A mirror with power-folding, memory, and heat will have more pins than a basic version. It is highly recommended to partially remove the interior door trim to access and count the pins on your car's connector before ordering a part.
Common Symptoms of Failure
Side view mirror issues can range from minor annoyances to significant safety hazards.
- Power Functions Inoperative: The mirror may not respond to the adjustment joystick, the power-folding feature may stop working on one or both sides, or the memory function fails to recall the set position. This often points to a failed motor, a bad switch, or a wiring issue within the door harness.
- Heated Glass Not Working: The mirror fails to clear frost or condensation in cold weather, indicating a problem with the heating element behind the glass or its electrical connection.

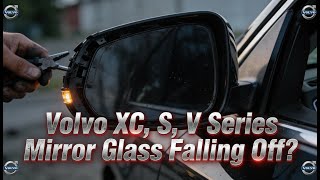

- Loose Mirror Glass or Housing: The mirror glass itself may vibrate excessively while driving, or the entire assembly may be loose where it mounts to the door. A common issue on these Volvos is the adhesive failing, causing the mirror glass to fall off the backing plate. 🎬 See how to reattach mirror glass that has fallen off
- Cracked or Broken Housing/Glass: Physical damage from impacts is a common reason for replacement.
- Puddle Lamp Failure: The small lamp on the underside of the mirror may burn out or have a bad connection.
Pro Tip: If your mirror glass has fallen off but the housing and motors are still good, you can often just replace the glass. The original factory adhesive can degrade over time. When replacing just the glass, ensure the surface of the plastic backing plate is thoroughly cleaned of old adhesive before applying the new part.
Buying a Used Side View Mirror: A Step-by-Step Guide
A used OEM mirror is often a better choice than a cheap aftermarket unit, offering superior fit, glass quality, and motor durability. Here’s what to check.
- Confirm Your Features: Make a list of your mirror's functions: Power-fold, puddle lamp, heat, and memory. Only look for used mirrors that explicitly match these features.
- Verify the Connector: This is the most important step. Ask the seller for a clear photo of the electrical connector and count the pins. Compare this to your vehicle's connector. A 2007 S80 (a different generation) might use a 14-wire plug, so verifying the plug for your specific 2004-2006 model is essential.
- Inspect the Part Physically: When you receive the part, check for cracks in the main housing, especially around the mounting points. Don't worry too much about scratches on the painted mirror cap; this part is usually held on by clips and can be swapped from your old mirror to match your car's color.
- Check the Glass and Motor: Ensure the glass is not scratched or discolored. Gently try to move the mirror glass by hand; it should move smoothly against the motor's resistance but not be floppy or loose.
Known Issues, Recalls, and TSBs
As of mid-2026, there are no specific recalls or Technical Service Bulletins (TSBs) from the National Highway Traffic Safety Administration (NHTSA) for the side view mirrors on the 2004-2006 Volvo S80. The primary known issues reported by owners are the failure of the power-folding mechanism and the mirror glass separating from its backing plate due to adhesive failure.
The most significant recall for this vehicle generation relates to the driver's side airbag inflator, which can rupture during deployment. It is crucial to ensure this recall has been addressed.
Replacement Overview
Replacing the side view mirror is a straightforward job for a DIYer with basic tools.
- Difficulty: 2 out of 5
- Estimated Time: 0.5 - 1 hour

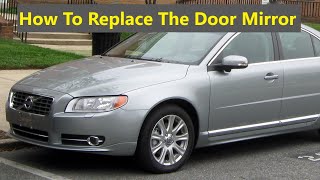

- Process: The replacement typically involves removing the small, triangular plastic trim piece (the 'sail') on the inside of the door. In some cases, the entire door panel may need to be removed to access the wiring connector. After unplugging the wire harness, the mirror is unbolted from the outside (usually with three bolts). Installation is the reverse of removal. 🎬 Watch this complete video walkthrough for replacing a Volvo mirror assembly
Cost Comparison
| Part Type | Estimated Cost |
|---|---|
| New OEM | $850 - $1,500 |
| New Aftermarket (Full Assembly) | $50 - $150 |
| New Aftermarket (Glass Only) | $30 - $70 |
| Used OEM | $75 - $250 |
| Shop Labor | $53 - $78 |
Note: Prices are estimates as of mid-2026 and can vary based on supplier, location, and the specific features of the mirror.
Frequently Asked Questions (FAQ)
Can I just replace the mirror glass instead of the whole assembly?
Yes. If only the glass is cracked or has fallen off, you can buy just the replacement glass, which is often heated. This is much cheaper than replacing the entire unit. The glass either snaps onto the motor mount or is attached with special adhesive.

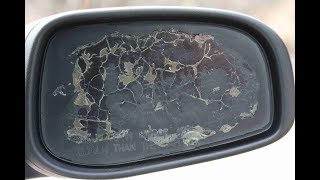

🎬 Watch this step-by-step video on replacing Volvo mirror glassDo I need to paint the replacement mirror?
Not usually. The painted outer shell or 'cap' of the mirror is a separate piece from the main housing. You can typically unclip it from your old mirror and snap it onto the replacement unit, preserving your car's original color.
Will a mirror from an S60 or V70 fit my S80?
Yes, mirrors from the 2004-2006 Volvo S60 and V70 are physically interchangeable with the S80 of the same years. However, you must ensure all the features (power-fold, puddle lamps, memory, heat) and the pin count of the electrical connector are an exact match.
What tools are needed for the replacement?
You will typically need a plastic trim removal tool (to avoid scratching the door panel), a set of Torx bits (often T25 or T30), and possibly a socket set. The job is generally considered DIY-friendly.
Helpful Videos
Technical Specifications
OEM Part Numbers: 30634720 30634723 30634725 30634934 30699049 30699051 30716137 30716139 30716481 30745238 30745252 8659855
Varies by features. Key differentiators are power-folding vs. non-power-folding, presence of a puddle lamp, and the electrical connector pin count (typically 8-12 pins).
