2010-2011 Armada & Titan Stuck in Park: Your Shift Lock Control Module Guide
This guide covers the common causes, symptoms, and repair solutions for shift lock problems in the 2010-2011 Nissan Armada and Nissan Titan, focusing on the critical shift lock control module.
- This module (28540-9GA0A) only fits 2010 models with a production date of March 2010 or later, and all 2011 models. Check your door jamb sticker.
- Failure of this module is a primary cause for the shifter being stuck in Park on these vehicles.
- This part is plug-and-play and does NOT require any programming or a dealer visit for installation.
- Before replacing the module, confirm your brake lights are working, as a bad brake light switch can cause the same symptom.
Critical Compatibility Warning: The March 2010 Production Date Cutoff
Warning: This Shift Lock Control Module, part number 28540-9GA0A, is only compatible with 2010 Nissan Armada and 2010 Nissan Titan models manufactured in March 2010 or later. It also fits all 2011 models of both vehicles. Vehicles built before this date use a different part (28540-7S00A). Before purchasing, it is essential to verify your vehicle's production date, which can be found on the sticker inside the driver's door jamb. Installing the wrong module will not resolve the issue.
Symptoms of a Failing Shift Lock Control Module
When the shift lock control module begins to fail, it can leave you stranded. The most common symptom is being unable to move the shifter out of the Park position, even when the engine is running and the brake pedal is fully depressed. Here are the specific signs to watch for:

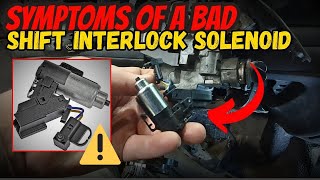

🎬 Watch: Learn the symptoms of a bad shift interlock solenoid- Stuck in Park: This is the most definitive symptom. The shifter physically will not move from 'P' to 'R', 'N', or 'D'.
- Intermittent Failure: The problem may start by happening only occasionally. You might have to jiggle the shifter or press the brake pedal multiple times to get it to release.
- No "Click" Sound from Shifter: When you press the brake pedal, you should normally hear a faint click from the center console area as the shift lock solenoid disengages. If this sound is absent, it points to a problem in the shift lock system, often the control module or the solenoid itself.
- Stuck in Drive or Neutral: In some cases, the failure can prevent you from shifting back into Park or Reverse from Drive or Neutral.
Pro Tip: Before blaming the module, check two other things first. 1) Do your brake lights work? If not, the problem is likely a faulty brake light switch, which is a cheaper and easier fix. The module needs the signal from this switch to work. 2) Check for a blown fuse related to the shift lock or brake light system.
Diagnosing the Issue: Module, Solenoid, or Something Else?

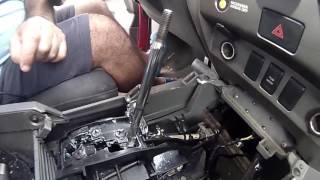

Troubleshooting this system involves a process of elimination. A common issue on these trucks that mimics a failed module is a broken or disconnected shifter cable bushing. This plastic piece connects the cable to the shifter assembly; if it breaks, the shifter moves but the transmission doesn't change gears. Another potential point of failure is the shift lock solenoid itself, which is part of the shifter assembly. However, forum discussions with owners of 2010-2011 Titan and Armada models often point to the electronic control module as the true culprit after other components have been checked.
Using the Shift Lock Override
If you are stranded, you can use the manual shift lock override to get the vehicle into gear. There is a small cover near the shifter. Pop this cover off with a small screwdriver (wrap the tip in a cloth to prevent scratches), insert your key or the screwdriver into the slot, and press down. While holding it down, you should be able to move the shifter into Neutral or Drive to move the vehicle. This is a temporary solution to get you to a safe location for repairs.
🎬 Watch: How to use the manual shift lock releaseBuying a Used Shift Lock Control Module
Since this part is often out of stock or discontinued from the manufacturer, a used OEM module is an excellent and common repair solution. Here’s what to look for:
- Verify the Part Number: Ensure the module you are buying is stamped with 28540-9GA0A. Do not accept substitutes.
- Check Donor Vehicle Information: If possible, confirm the used part came from a 2011 model or a 2010 model with a production date of 03/10 or later.
- Inspect the Connectors: Look for any signs of corrosion, bent pins, or damage to the plastic connector housing.
- Why Used OEM is a Good Choice: For a simple electronic module like this, a recycled OEM part offers the same plug-and-play performance as a new one without the high dealer cost. Aftermarket versions are not commonly available, making used OEM the most practical option.
Programming and Installation
Does this module need to be programmed?
No, the 28540-9GA0A Shift Lock Control Module does not require any programming or flashing. It is a plug-and-play part. You can install a replacement (new or used), and it will function immediately without a trip to the dealer. It is not linked to the anti-theft or immobilizer system.
Replacement Procedure
The Shift Lock Control Module is located behind the glove box on the right-hand side of the dashboard.
- Disconnect the vehicle's battery.
- Open and empty the glove box.
- Remove the glove box assembly by taking out the retaining screws (typically six Phillips head screws).
- Locate the module mounted behind the glove box. It is a small black box with a single electrical connector.
- Disconnect the electrical connector and unbolt the module from its bracket.
- Install the new module, reconnect the connector, and reassemble the glove box. 🎬 Watch: Step-by-step shift lock module replacement walkthrough
- Reconnect the battery and test the shifter operation.
Known Issues, TSBs, and Recalls
While there are no specific recalls for the 2010-2011 shift lock control module itself, Nissan has issued recalls for related issues on other model years that are helpful to understand.
- NHTSA Recall 13V094000: Affected some 2013 Titan models where a foam dampener could interfere with the brake shift interlock, allowing the vehicle to be shifted out of Park without the brake being pressed.
- NHTSA Recall 22V-671: Affected 2020-2023 Titan and Frontier models with 9-speed transmissions, where an internal transmission issue could prevent the parking pawl from engaging, leading to a potential rollaway.
These recalls do not directly apply to the 2010-2011 models' electronic module but show a history of shift-related safety actions on these platforms.
Cost of Replacement
The cost can vary significantly depending on the source of the part. Labor for this repair is minimal due to the easy access behind the glove box.
| Part Source | Estimated Cost |
|---|---|
| New OEM (Dealer) | $150 - $250+ (if available) |
| New Aftermarket | Not commonly available |
| Used OEM (Recycled) | $45 - $100 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions (FAQ)
Do I need to program a replacement Shift Lock Control Module?
No. This module is plug-and-play and does not require any programming or special tools for installation. It is not tied to your vehicle's VIN or security system.
My truck is stuck in Park. How do I move it?
You can use the manual shift lock override. Pry up the small plastic cover next to the shifter, insert your key or a screwdriver into the slot, and press down. This will release the lock and allow you to shift into Neutral to move the vehicle.
What's the difference between the shift lock module and the shift lock solenoid?
The module (this part, 28540-9GA0A) is the electronic controller or 'brain' located behind the glove box. The solenoid is a mechanical actuator located inside the center console shifter assembly itself. The module tells the solenoid when to unlock. While the solenoid can fail, issues in the 2010-2011 Armada and Titan are frequently traced back to the control module.
Why does this part only fit 2010 models made after March 2010?
Nissan made a mid-year change to the electronics of the shift interlock system. Vehicles produced before March 2010 use a different control module (part number 28540-7S00A). The two parts are not interchangeable. Always check your vehicle's production date on the driver's door jamb sticker.
Helpful Videos
Technical Specifications
OEM Part Numbers: 28540-9GA0A 285409GA0A
Plug-and-play electronic control module for the shift interlock system. Located behind the glove box.
