2018-2024 Ram, Jeep & Dodge Serial Gateway Module: Fixing Widespread Electrical Issues
This guide explains the function, failure symptoms, and mandatory programming requirements for the Security Gateway Module (SGW) in many modern Mopar vehicles.
- A replacement Serial Gateway Module (SGW) MUST be programmed to the vehicle's VIN by a dealer or a properly equipped shop; it is not a plug-and-play part.
- Failure causes widespread, seemingly random electrical issues, including multiple warning lights, a dead instrument cluster, and no-start conditions.
- The physical location of the module varies greatly by vehicle, from behind the glovebox to behind the instrument cluster, which significantly impacts replacement difficulty.
- Buying a used OEM module is a viable, cost-effective option, but only if it is the correct part number and is professionally programmed after installation.
Symptoms of a Failing Serial Data Gateway Module
Because the SGW is the central hub for all module communications, its failure can cause a wide and confusing range of electrical problems. Symptoms often appear unrelated, making diagnosis difficult. A bad SGW can interrupt signals between the engine computer, body control module, instrument cluster, and radio.
- Multiple Warning Lights: The dashboard may light up with numerous warnings like "Service Airbag," "Service Suspension," or a flashing check engine light.
- Instrument Cluster Failure: Gauges may stop working, fluctuate wildly, or the entire instrument panel could go dark. The PRNDL (gear indicator) may not display the current gear.
- No-Start or Stalling: The vehicle may not crank, refuse to start, or start and immediately stall.
- Loss of Features: The radio may go blank, HVAC controls may become inoperative, power windows and locks may stop responding, and steering wheel controls can go dead.
- Communication DTCs: A scan tool will often show a flood of "Loss of Communication" U-codes (like U0100, U0140, U0155) from various modules that can no longer talk to each other.
- Incorrect Diagnostics: A scan tool may not be able to communicate with any modules at all, or it may only be able to read data without being able to clear codes or perform tests.
Common Diagnostic Trouble Codes (DTCs)
- U0448 / U0449: Invalid Data Received From Serial Data Gateway Module.
- U3002-56: Vehicle Identification Number – Invalid/Incompatible Configuration. This code is common after installing a used or new module that has not been programmed to the vehicle.
- B235A-00: ECU In-Plant-Mode. A known issue addressed by a Technical Service Bulletin (TSB) in several models.
- B2199-16: Battery Voltage - Circuit Voltage Below Threshold. This points to a power supply or wiring issue to the SGW module itself.
Known Issues, TSBs, and Recalls
While there are no widespread recalls specifically for SGW failure on these exact models, several Technical Service Bulletins (TSBs) indicate known issues that are resolved with software updates or inspection.
- TSB for Software Updates: Bulletins have been issued for the 2018 Jeep Wrangler and 2020 Dodge Durango for "Flash: Security Gateway Module (SGW) Enhancements." This involves reprogramming the module with improved software to fix potential glitches. If you experience odd electrical issues, a dealer can check if your vehicle needs this update.
- TSB for "In-Plant Mode": TSB S2008000075 addresses a condition where the SGW can get stuck in a factory mode, setting code B235A-00. This has been noted for the Ram 1500, Jeep Wrangler, and Dodge Journey.
- Physical Connection Failures: Some failures are not internal to the module but are caused by poor electrical connections. Technicians have found problems with bent, loose, or corroded terminals in the main module connectors, which can cause intermittent communication loss.
Vehicle-Specific Replacement Information
The difficulty of replacing the SGW depends entirely on its location, which varies by vehicle. Locations range from easily accessible under the dash to more complex jobs requiring removal of the radio or instrument cluster.
Pro Tip: Before starting, always disconnect the negative terminal of the vehicle's battery to prevent electrical shorts.
| Vehicle | SGW Module Location | Access Notes |
|---|---|---|

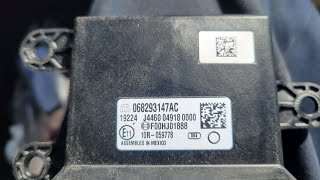

| 2018-2021 Ram 1500 Classic (DS) | Behind the radio/center stack | Requires removing the radio trim and the radio itself. | 🎬 See how to locate and remove the 2018 Ram 1500 gateway module
| 2019-2021 Ram 1500 (DT) | Under the driver's side dash, near the OBD-II port | Relatively easy access after removing the lower dash panel. | 🎬 Watch a walkthrough on accessing the 2019+ Ram 1500 security gateway
| 2018 Ram 2500/3500 (DS) | Behind the radio/center stack | Requires removing the radio trim and the radio itself. |
| 2019-2021 Ram 2500/3500 (DT) | Behind the instrument cluster | Requires removing the cluster trim and the instrument cluster. |
| 2018-2023 Dodge Durango | Behind the glovebox | Requires opening or removing the glovebox assembly for access. |
| 2018-2023 Dodge Challenger | Behind the radio/center stack | Requires removing the radio trim and the radio itself. |
| 2021 Dodge Charger | Under the driver's side dash, near the OBD-II port | Relatively easy access after removing the lower dash panel. |
| 2018-2022 Jeep Wrangler (JL) | Under the driver's side dash, near the steering column | Access by removing the lower dash/knee bolster panel. |
| 2020-2024 Jeep Gladiator (JT) | Under the driver's side dash, near the steering column | Identical location and access procedure to the Jeep Wrangler (JL). |
Buying a Used Serial Data Gateway Module
A used OEM module is an excellent way to save money, as there are no common wear items inside. However, there are critical factors to consider that make this different from buying a simple mechanical part.
Warning: A replacement SGW module—whether new or used—MUST be programmed to your vehicle's specific VIN and configuration. It is not a plug-and-play part. Failure to program the module will result in it not working and setting fault codes.
- Verify the Part Number: Match the part number on your original module exactly. Mopar frequently updates and supersedes part numbers. For example, part number 68492545AA was later replaced by 68454413AA. Ensure the part you are buying is a direct match or an official replacement for your original.
- Programming is Required: A used module comes from a donor vehicle with a different VIN and likely a different set of options. After installation, a dealer or a qualified independent shop must perform the "SGW learn procedure" or "Restore Vehicle Configuration" routine. This teaches the module about your vehicle's specific setup.
- Who Can Program It?: A dealership can always perform the programming with their wiTECH 2.0 tool. An independent shop can also do it, but they need a high-end professional scan tool (like Autel, Launch, or FCAR) and an active subscription to a service called "AutoAuth." 🎬 Watch this video explaining how the Secure Gateway module works AutoAuth provides the security credentials needed to unlock the gateway for programming. A typical DIY mechanic or locksmith cannot program the SGW.
- Physical Inspection: When buying used, inspect the module for any signs of water damage, corrosion on the pins, or physical damage to the case or connectors. These are red flags.
- Why Used OEM is a Good Choice: Unlike complex engine computers, the SGW is primarily a communications router. It does not store mileage or have high-wear components. A functional, tested used OEM module from a reputable recycler is just as reliable as a new one once it has been correctly programmed to your vehicle.
Cost Comparison for SGW Replacement
The cost can vary significantly based on the part source and labor rates. Programming is a mandatory additional cost.
| Item | Estimated Cost |
|---|---|
| New OEM Module | $150 - $500+ |
| Used OEM Module | $50 - $125 |
| New Aftermarket / Remanufactured | Not commonly available |
| Shop Labor (Replacement & Programming) | $200 - $450 |
Frequently Asked Questions (FAQ)
Does the SGW module have to be programmed?
Yes, absolutely. A new or used Serial Data Gateway Module must be programmed to your vehicle's VIN and factory configuration. If it is not programmed, it will remain in a locked mode and will not function, causing communication errors across the vehicle.
Can I replace the SGW module myself?
You can perform the physical replacement yourself to save on labor costs, especially if the module is in an easy-to-reach location like under the dashboard. However, after you install the part, the vehicle must be taken to a dealer or a properly equipped independent shop for the mandatory programming step.
What is an SGW bypass cable and can I use it to fix my car?
An SGW bypass cable is a diagnostic tool, not a repair part. It's used by DIYers and tuners to temporarily go around the SGW, allowing their scan tools to perform functions like clearing codes or changing vehicle settings. It does not fix a faulty SGW module. If your original module has failed, it must be replaced.
Will a used SGW module work?
Yes, a used SGW module is a great cost-saving option, provided two conditions are met: 1) The part number is a correct match for your vehicle, and 2) You have it professionally programmed to your car after installation. The module itself does not have wear parts, so a good used unit is functionally identical to a new one once programmed.
Helpful Videos
Technical Specifications
OEM Part Numbers: 068403887AB 068403887AC 068492545AA 68293147AC 68400768AA 68454413AA
The Serial Data Gateway Module functions as a central router and firewall for the vehicle's CAN bus and Ethernet communication networks. It requires programming via a 'learn process' to recognize the vehicle's specific module configuration.
