2014-2022 Outlander & 2018-2020 Eclipse Cross Gateway Module: Failure Symptoms and Replacement Programming

Symptoms of a Failing Gateway (ETACS) Module

A failing gateway module can cause a wide range of seemingly unrelated electrical problems. Because it controls communication between other modules, its failure often looks like multiple other parts have failed simultaneously.

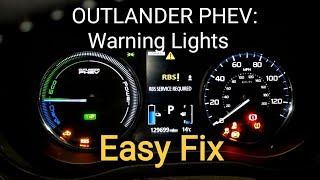

• Multiple Warning Lights: The most common symptom is a dashboard that lights up like a Christmas tree. 🎬 Watch this demonstration of multiple warning lights on an Outlander. You may see warnings for the check engine light, ABS, traction control, 4WD system, and more, all at once.
• Loss of Functions: Various electronic features may stop working intermittently or altogether. This can include power windows, door locks, interior lights, radio, and climate controls.
• Communication Errors: A professional scan tool may be unable to communicate with multiple control modules. The gateway module itself might not respond.
• No-Start or Stalling: The vehicle may refuse to start, or it could stall while driving because the gateway is not correctly routing information from the immobilizer system or engine computer.
• Incorrect Vehicle Behavior: In some cases, a faulty module can cause the vehicle to get stuck in park or enter a "limp mode" with reduced power.

Common Diagnostic Trouble Codes (DTCs)

Network-related faults, known as U-codes, are strong indicators of a gateway module problem. Look for the following codes:

• U0146: Lost Communication with Gateway.
• U0448: Invalid Data Received From Serial Data Gateway Module.
• B1761: VIN Not Programmed.
• B222C: Coding Not Completed.

Other U-codes indicating a loss of communication with various other modules can also point to the gateway as the root cause, as it is the central hub for all of them.

Known Issues, TSBs, and Recalls

As of this writing, there are no specific recalls or widespread Technical Service Bulletins (TSBs) from Mitsubishi for the failure of the Serial Data Gateway (ETACS) module on the 2014-2022 Outlander or 2018-2020 Eclipse Cross.

However, these vehicles have been subject to other recalls. One notable recall (NHTSA ID 18V620000) involved reprogramming the Forward Collision Mitigation (FCM) ECU on certain 2017-2018 Outlander and 2018-2019 Eclipse Cross models due to a software error. This highlights that module software and programming are critical for proper vehicle function.

Replacement and Programming Requirements

Replacing the gateway/ETACS module in these vehicles is not a plug-and-play procedure. The new module must be programmed to the vehicle's specific VIN and configuration. Failure to do so will result in a no-start condition, immobilizer faults, and numerous communication errors.

Why Programming is Required:

• VIN Matching: The module's VIN must match the VIN stored in other key modules, like the engine computer and immobilizer. A mismatch will trigger anti-theft systems.
• Vehicle Options (Variant Coding): The module must be told which features the vehicle has (e.g., 4WD, sunroof, keyless entry, etc.). This process is called "variant coding." Using a module coded for a different trim level can cause features to work incorrectly or not at all.
• Immobilizer & Key Registration: 🎬 See how proximity key programming works on a Mitsubishi. The ETACS module is a central part of the vehicle's immobilizer system. When it's replaced, the keys must be re-registered to the new module.

Who Can Program the Module?

This procedure requires the Mitsubishi-specific diagnostic tool, known as the M.U.T.-III or M.U.T.-IIISE, with an active software subscription. This means the programming must be done by:

• A Mitsubishi dealership.
• An independent repair shop that specializes in Mitsubishi and has invested in the official M.U.T.-III tool.

Standard OBD-II scanners and most aftermarket professional tools cannot perform the required variant coding and key registration. Some advanced locksmiths or module specialists may be able to clone the data from the old module to the replacement if the original module is still readable.

Replacement Location

The ETACS/Gateway module is typically integrated with the interior fuse box, located in the driver's side footwell, up under the dashboard to the left of the steering column. On some models, it may be necessary to remove the knee airbag module and other lower dash panels to gain access. A similar module on the Eclipse Cross is located behind the glove box.

Buying a Used Serial Data Gateway Module

Purchasing a used gateway module is a viable way to save money, but it's critical to understand the process. The hardware is what you're buying; the programming is a separate, mandatory step.

1. Match the Part Number Exactly: The OEM part number on the replacement module must be an exact match to your original part. The primary part number for these vehicles is 8637B906. An earlier number, 8637B414, may also be compatible in some cases. Do not install a module with a different part number, even if it looks identical.
2. Budget for Programming: A used module is not plug-and-play. You MUST factor in the cost of having it professionally programmed and coded to your vehicle. Call local dealers or specialty shops beforehand to get a quote for programming a customer-supplied used module.
3. Inspect for Damage: When the part arrives, inspect the casing for cracks and check all connector pins to ensure they are straight and free of corrosion. Water damage is a potential cause of failure, so look for any signs of moisture or rust.

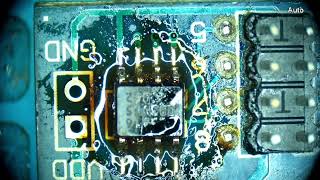

4. Keep Your Old Module: As mentioned, the coding from your original module is extremely valuable. Provide it to your technician so they can attempt to clone it to the used replacement. 🎬 Watch a professional technician clone a Mitsubishi PCM and ETACS. This can make the programming process smoother.

Cost Comparison

Prices can vary by location and supplier, but here is a general cost estimate:

Note: Labor costs include physical installation and the specialized electronic programming, which can take 1.5-3 hours of shop time.
