2023-2025 Lexus RZ450e Passenger Seat Switch: Diagnosis and Replacement Guide
Learn to spot the signs of a failing RZ450e passenger seat switch and what to look for when buying a used replacement.
- The most common failure symptom is when the seat moves in some directions but not others, which points directly to a bad switch.
- Before replacing the switch, always check the power seat fuse first to rule out a simpler problem.
- The correct OEM part number for the front passenger side is 84920-76020; the driver's side switch is different and will not fit.
- Replacement is a simple DIY job that requires a plastic trim tool and can be done in under an hour.
Symptoms of a Failing Seat Switch
Because the 2023-2025 Lexus RZ450e is a relatively new vehicle, widespread switch failure is still uncommon. However, when issues do arise, they typically mirror the symptoms seen in other modern vehicles. The most common cause of failure is wear and tear on the internal electrical contacts from repeated use, or from liquid spills seeping into the switch housing.
- Seat is Unresponsive: The most obvious symptom is when the seat does not move at all when you press the switch. Before blaming the switch, it's crucial to check the power seat fuse first, as a blown fuse will cause the same symptom.
- Moves in Some Directions But Not Others: A very common failure mode is when one function stops working while others are fine. For example, the seat might recline back but refuse to come forward. This almost always points to a specific failed contact within the switch assembly for that particular direction.
- Intermittent or Slow Operation: You might have to press a button multiple times to get it to work, or the seat may move much slower than it used to. This can indicate worn or corroded internal contacts that are struggling to make a clean connection.
- Seat Stops Moving Suddenly: The seat may start to move and then stop abruptly before reaching the desired position. This can also be a sign of a failing switch, though it could also point to an obstruction in the seat tracks or a problem with the seat motor itself.
Pro Tip: Before you replace the switch, always perform a basic diagnosis. 🎬 Watch this video to learn how to diagnose seat motors and switches. First, check the fuse box for any blown fuses related to the power seats. Second, listen for a faint 'click' from under the seat when you press the switch. If you hear a click but the seat doesn't move, the problem is more likely the seat motor, not the switch. If you hear nothing, the switch or wiring is the more likely culprit.
Known Issues, TSBs, and Recalls
As of early 2026, there are no specific recalls or Technical Service Bulletins (TSBs) from Lexus or the National Highway Traffic Safety Administration (NHTSA) that directly concern the front passenger seat switch for the 2023-2025 RZ450e. The vehicle has been subject to recalls for other issues, such as HVAC software, but the seat adjustment mechanisms have so far proven reliable. Always check for the latest information by entering your vehicle's VIN on the official Lexus or NHTSA recall websites.
Buying a Used Seat Switch
For a newer vehicle like the RZ450e, a used OEM switch from a low-mileage salvage vehicle can be an excellent value, offering factory quality for significantly less than a new part from a dealer. Aftermarket options are generally not available or recommended for this model yet.
What to Inspect Before Buying

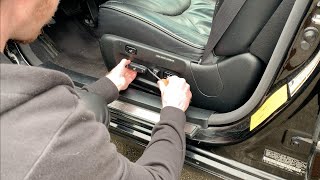

- Verify the Part Number: The most critical step is to match the part number. The OEM part number for the front passenger (right side) seat switch is 84920-76020. Switches from other Lexus models may look identical but have different internal wiring or mounting points. 🎬 Watch a demonstration of replacing a similar Lexus seat controller.
- Check for Physical Damage: Inspect the plastic housing for cracks or stress marks, especially around the mounting tabs. Look at the buttons to ensure none are broken or excessively worn, which could indicate very high usage.
- Examine the Connector: Look at the electrical connector on the back. Ensure the pins are straight and free of corrosion. The plastic locking tab should be intact, as a broken tab can lead to a loose connection.
- Ask About the Donor Vehicle: If possible, find out the mileage of the vehicle the part came from. A switch from a vehicle with under 50,000 miles is ideal. Also, inquire if the vehicle had any water damage, as moisture is a primary cause of switch failure.
Warning: This switch is specific to the front passenger (right) side. The driver's side switch is a different part number and is not interchangeable.
Cost Comparison
Prices for a 2023-2025 RZ450e passenger seat switch can vary. Here is a general cost breakdown to help you understand the value of a used OEM part.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $260 - $370 |
| Used OEM | $100 - $200 |
| New Aftermarket | Not Widely Available |
| Shop Labor | $70 - $150 |
Installation Guide (Difficulty: 2/5)
Replacing the passenger seat switch is a straightforward task that most DIYers with basic tools can complete in under an hour. The main challenge is carefully removing the plastic trim without breaking any clips.
- Disconnect the Battery: Before starting any electrical work, disconnect the negative terminal from the 12-volt battery to prevent short circuits.
- Remove the Seat Side Trim: The switch is mounted in a plastic panel on the side of the seat. This panel is held on by clips. Using a plastic trim removal tool, carefully pry the panel away from the seat. Start at a corner and work your way around until the clips release.
- Disconnect the Switch: Once the panel is loose, you will see the back of the switch. Press the small tab on the electrical connector and pull it straight out to disconnect it.
- Remove the Old Switch: The switch is held into the trim panel with several plastic clips. Gently release these clips with a small screwdriver or your fingers and push the switch out of the panel. 🎬 See this quick walkthrough of a power seat switch replacement.
- Install the New Switch: Snap the replacement switch into the trim panel, ensuring all clips are fully engaged. Reconnect the electrical harness—it should click into place.
- Test and Reassemble: Reconnect the vehicle's battery. Test all functions of the new switch to confirm it works correctly. If everything is working, snap the side trim panel back onto the seat.
Frequently Asked Questions
Do I need to reprogram the car after replacing the passenger seat switch?
No. The passenger seat switch is a simple input device. Replacement does not require any special programming or recalibration. You can simply swap the part.
Is the driver's side seat switch the same as the passenger's side?
No, they are not interchangeable. The driver's side switch often includes controls for the seat memory function and has a different part number (84920-33170). The passenger switch (84920-76020) is a mirrored, simpler version.
Can a bad seat switch drain the car's battery?
It is highly unlikely. A standard failure where the switch simply stops working will not cause a battery drain. In a very rare case, an internal short circuit could theoretically cause a small parasitic draw, but this is not a common symptom.
My seat moves, but I hear a beeping sound. Is the switch bad?
No, a beeping sound during adjustment usually indicates that the seat's position memory has been lost, often after the battery was disconnected. This is more common on the driver's side with memory functions. To fix this, you typically need to run the seat through its full range of motion in all directions to re-initialize its position.
Helpful Videos
Technical Specifications
OEM Part Numbers: 84920-76020
Controls front passenger seat slide, recline, and height functions.
