2000-2001 Jeep Cherokee Front Seat: Fixing Frame Cracks and the 'Gangster Lean'

Common Symptoms of Failure

Front seats in the 2000-2001 Jeep Cherokee are known for a few common issues, most of which are mechanical and become obvious with use. These problems are especially common on the driver's side, which sees the most wear.

1. Cracked or Broken Seat Frame

This is the most frequent and serious issue. The metal seat frame, particularly the base where the rails mount or where the backrest pivots, can develop stress cracks over time. Getting in and out of the vehicle, especially on lifted Jeeps, puts a lot of side load on the frame. Eventually, the metal fatigues and breaks. Symptoms include:

• A rocking or wobbling feeling, as if the seat is not bolted down tightly.
• The seat leaning noticeably to one side, often toward the door or center console.
• Popping or creaking sounds when accelerating, braking, or turning.

2. Collapsed Foam Cushion ('Gangster Lean')

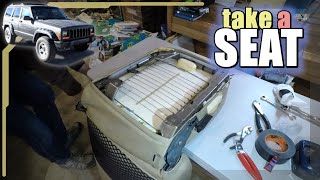

Known affectionately in the XJ community as the "gangster lean," this happens when the foam cushion on the outboard side (closest to the door) breaks down. After years of the driver sliding in and out, the foam loses its structure and collapses. This causes the driver to sit at an angle, which can be uncomfortable and cause back pain. 🎬 See how to replace collapsed seat base foam step-by-step While the frame itself may be intact, the lack of support from the foam creates the leaning sensation.

3. Broken Recliner Mechanism

The mechanism that allows the seat back to recline can fail. This can leave the seat stuck in one position or, less commonly, allow it to move freely. This is usually due to wear or breakage of the internal gears or levers.

Buying a Used 2000-2001 Cherokee Front Seat

A used OEM seat is often the best and most cost-effective solution for a broken one. The aftermarket consists mainly of expensive, racing-style seats or simple covers. A good used seat from a salvage yard can provide years of additional service if you know what to look for.

Step 1: Verify Your Existing Seat's Specifications

Before you start shopping, you must identify what you have. Check for the following:

• Power vs. Manual: Does your seat have power adjustments (usually for height and tilt) or is it all manual levers? Power seats were an option, primarily on the high-end Limited trim, and have a different wiring harness underneath.
• Upholstery Material: Is your seat cloth, vinyl, or leather?
• Color: The two primary interior colors for 2000-2001 were Agate (a dark charcoal gray) and Camel (tan).

Step 2: Physical Inspection of the Used Seat

This is the most critical step. Do not buy a seat sight-unseen unless you trust the seller completely.

• Check for Frame Cracks: Carefully inspect all the welds on the seat pan and where the rails attach. Pay special attention to the front left corner on a driver's seat, as this is a common failure point. Look for hairline cracks in the metal or any signs of previous, sloppy weld repairs.
• Test the Mechanisms: Work all the levers. The seat should slide forward and back smoothly, and the recliner should engage and hold firmly.
• Check the Foam: Press down firmly on the side bolsters of the seat cushion, especially the one nearest the door. It should feel firm and supportive, not mushy or collapsed. Compare it to the passenger-side bolster, which is usually in better condition.
• Assess Upholstery Condition: Check for rips, tears, cigarette burns, and heavy stains. Minor wear is expected, but major damage can be costly to repair.

Step 3: Confirm Compatibility

• Direct Fit: Seats from 2000-2001 Jeep Cherokees are a direct bolt-in replacement.
• Wider Compatibility (1995-2001): The seat mounting brackets and floor pan design are the same for all 1995-2001 Jeep Cherokees. This means you can use a seat from a 1997, 1998, or 1999 model in your 2000-2001 XJ. However, the upholstery patterns and colors may differ slightly.
• Grand Cherokee Swaps: Front seats from 1993-1998 (ZJ) and 1999-2004 (WJ) Grand Cherokees are a popular upgrade. The seats themselves will bolt directly onto your existing 1995-2001 XJ seat brackets/sliders. This can be a great way to get more comfortable seats, often with leather and power options.

Known Issues, Recalls, and TSBs

As of this writing, there are no major safety recalls specifically for the front seat structure or frame on 2000-2001 Jeep Cherokee models. A recall (NHTSA ID 00V366000) was issued for a wide range of 2000-2001 Chrysler/Jeep vehicles, including the Cherokee, because the owner's manual omitted instructions for using the child seat tether anchors. This did not involve a defect in the seat itself. Recalls for heated seat elements were issued for Grand Cherokee models but not for the Cherokee XJ.

Replacement Overview

Replacing the front seat in a Cherokee XJ is a straightforward job suitable for a beginner DIYer.

• Difficulty: 1 out of 5
• Time: Less than 1 hour
• Tools Needed: 13mm socket, ratchet, and possibly a T45 Torx bit for separating the seat from the bracket.

Step-by-Step Process:

1. Slide the seat all the way back to access the two 13mm bolts at the front of the seat rails. Remove them.
2. Slide the seat all the way forward to access the two 13mm nuts or bolts at the rear of the rails. Remove them.
3. Tilt the seat backward to access the electrical connector underneath. This is for the seatbelt warning chime. Depress the tab and unplug it. If you have power seats, there will be an additional, larger connector to unplug.
4. Carefully lift the seat out of the vehicle. Be mindful of the mounting studs on the bottom of the rails to avoid scratching door panels or trim.
5. Installation is the reverse of removal.

Cost of Replacement (Per Seat)

Item	Estimated Cost
New OEM	$1000+ (Largely discontinued)
New Aftermarket (Performance Seat)	$400 - $1000+
Used OEM (Salvage Yard)	$75 - $250
Professional Reupholstery (Fabric)	$250 - $750
Shop Labor (Seat Swap)	$75 - $150

Frequently Asked Questions (FAQ)

OEM Part Numbers

The following is a list of known OEM part numbers for the 2000-2001 Jeep Cherokee. Note that these numbers often correspond to specific colors, materials, and power/manual options. This list is for reference and is not exhaustive.

5FY12LAZAD, 5FY12RC3AD, 5FY12WL5AD, 5FY44RC5AA, 5FY44RC5AB, 5FY45RC5AA, 5GK51RC3AA, 5GK51RC3AB, 5GK51RK5AA, 5GK51RK5AB, 5GK52RC3AA, 5GK52RC3AB, 5GK52RC3AC, 5GK53RC3AD, 5GK53RK5AD
