2013 Chevrolet Corvette Front Seat: The 2012-2013 Redesign and Common Issues
An in-depth look at the unique front seats in the 2013 C6 Corvette, focusing on the updated design, common failure points, and critical compatibility warnings for buyers.
- The 2013 Corvette features a unique seat design (shared with the 2012 model) with improved bolstering and different foam/covers than 2005-2011 cars.
- A "Service Airbag" light is a common and serious issue, often caused by a wiring connector under the seat that gets disconnected. GM issued a special coverage bulletin (15643) for this problem.
- When buying a used seat, you must verify it's from a 2012-2013 model for the updated style and ensure all options (heat, memory, airbag) match your car to avoid compatibility issues.
- A rocking or loose seat is a frequent complaint, typically caused by wear in the seat track mechanism rather than the seat itself.
The 2012-2013 C6 Seat Redesign: What Changed?
For the final two years of the C6 generation, Chevrolet introduced a redesigned front seat for the Corvette. The 2012-2013 seats feature a noticeably different appearance and construction compared to the 2005-2011 models. The most significant change was to the seat foam and covers, which provided more aggressive side bolstering and wider shoulder support for a more supportive feel during performance driving. While the underlying seat frame remained the same, the new foam and upholstery give the seat a more substantial look and feel. Some owners also report that the foam feels stiffer and the seats have less legroom due to the extra padding.
Warning: While 2012-2013 seats will physically bolt into a 2005-2011 C6 Corvette, they are not a direct plug-and-play swap if the options don't match. Wiring for power functions, heating, and side airbags may differ. If you are only looking to get the updated look, it is possible to install the 2012-2013 style foam and seat covers onto an earlier C6 seat frame.

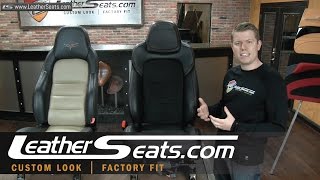

🎬 Watch this video guide on converting to the 2012/2013 sport seatsCommon Symptoms of a Failing Front Seat
Rocking or Looseness
A very common complaint among C6 Corvette owners is a rocking or shifting sensation from the driver's seat, especially during acceleration and braking. This is often not an issue with the seat itself, but with the seat track mechanism. Worn plastic bushings or loose bolts in the track assembly can create play, causing the entire seat to move. In some cases, the seat back frame can crack or break, allowing the upper portion of the seat to move several inches. While some owners have found temporary fixes using hose clamps to tighten components, the proper repair often involves replacing the entire seat adjuster track assembly.
Power Seat Failure
If your power seat adjustments stop working, the problem could be a failed motor, a broken switch, or a wiring issue. The seat control module or the motors themselves can fail, leaving the seat stuck in one position. Before replacing parts, it's wise to check the fuse and inspect the wiring harness under the seat for any visible damage or disconnected plugs.
Seat Heater Malfunction
A failed seat heater is another frequent issue. Symptoms can include the heater not turning on, shutting off after a few minutes, or creating hot spots. This is typically caused by a broken heating element within the seat cushion, a faulty switch, or a bad connection. The heating element is a grid of fine wires embedded in a pad under the upholstery; repeated compression from getting in and out of the car can cause these wires to break over time. A burning smell is a serious symptom that indicates a short circuit and a potential fire hazard.
"Service Airbag" Light and Passenger Presence System (PPS) Faults
An illuminated "Service Airbag" light on the dash is a critical safety warning. For the 2013 Corvette, this is often related to the wiring harness under the seat. A Technical Service Bulletin (TSB 15643) was issued for a condition where moving the seat forward and back can drag a key electrical connector against the carpet, pulling the terminals loose. This connector serves the side airbag and seat belt tensioner, and a bad connection will disable these systems. The passenger seat also contains a sensor mat (the PPS) that detects an occupant. A failure in this mat or its wiring can also trigger the airbag light and may prevent the passenger airbag from deploying in a crash.
🎬 Watch a demonstration on how to test a seat occupancy sensorBuying a Used 2013 Corvette Front Seat: What to Check
Purchasing a used seat can be a great way to save money, but careful inspection is key. Given the electronic complexity, you are buying a sensitive piece of safety equipment.
- Verify the Year and Style: Ensure you are buying a 2012-2013 model year seat if you want the updated design with improved bolsters. Ask the seller for photos of the part numbers or the vehicle it was removed from.
- Inspect Upholstery and Foam: The driver's side outer bolster is the most common wear point. Check for deep creases, cracks, or torn leather. Press on the bolsters and seat bottom to feel for collapsed or sagging foam, which will reduce comfort and support.
- Check All Wiring and Connectors: Carefully inspect the wiring harnesses under the seat. Look for any cut wires, damaged plugs, or signs of corrosion. Pay special attention to the main yellow airbag system connector; never buy a seat with a damaged airbag connector or one that came from a vehicle where the airbags deployed.
- Test Power Functions: If possible, ask the seller to test the power seat functions before you buy. If the seat is already removed, this can be done by carefully applying 12V power to the appropriate pins on the main power connector.
- Match Options Exactly: 2013 Corvette seats came with multiple options. You must match them to your vehicle for a plug-and-play installation. Verify if the seat has heating (RPO code KA1), memory function (AAB), and power adjustments (AG2). Also, confirm the interior color (Ebony, Cashmere, etc.) and trim level.
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
While there are no open recalls specifically for the seats on the 2013 Corvette, there is a highly relevant Special Coverage Adjustment and TSB.
- Special Coverage #15643: This covers a condition where the seat's wiring harness connector can get pulled apart by rubbing on the carpet when the seat is moved. This fault triggers the "Service Airbag" light. GM extended the warranty for this specific issue to 10 years or 120,000 miles. The fix involves removing the connector and soldering the wires directly.
There are no other major recalls directly impacting the 2013 model's seats. Other C6 recalls pertained to different model years or components like roof panels and headlights.
Replacement Guide
Pro Tip: Before starting any work, take a picture of the wiring harness routing and connector locations under the seat. This will be a valuable reference during reinstallation.
Step-by-Step Removal and Installation
- Disconnect the Battery: This is the most important safety step. Disconnect the negative terminal of the battery and wait at least 10-15 minutes to allow the airbag system's backup power to discharge completely. Failure to do so could result in accidental airbag deployment.
- Move the Seat for Access: Slide the seat all the way forward to expose the two rear mounting nuts.
- Remove Rear Nuts: Using a socket wrench, remove the two nuts holding the rear of the seat track to the floor studs.
- Move the Seat and Remove Front Bolts: Slide the seat all the way back to expose the two front mounting bolts. Remove them.
- Tilt and Disconnect: Carefully tilt the seat backward to access the electrical connectors underneath. Disconnect the large main harness plug and the distinct yellow airbag system plug. The yellow plug has a locking tab that must be released before it can be unplugged.
- Remove the Seat: With all bolts and wiring disconnected, the seat can be carefully lifted out of the vehicle. Be mindful of the seat tracks to avoid scratching the door sills or interior trim.
- Installation: Installation is the reverse of removal. Place the new seat in the car, connect the electrical harnesses, and loosely start all four mounting bolts/nuts. Torque the bolts to factory specifications before reconnecting the battery.
Cost Comparison: 2013 Corvette Seat
| Part Type | Estimated Cost | Notes |
|---|---|---|
| New OEM | $2,000 - $4,000+ (per seat) | Often sold as separate components (frame, foam, cover, electronics), making a complete new seat extremely expensive. Many parts may be discontinued. |
| New Aftermarket | $1,500 - $3,500+ (reupholstery) | Complete aftermarket seats are rare. This price reflects professional reupholstery of your existing seat frame with new leather or materials. |
| Used OEM | $400 - $1,800 (per seat/pair) | Price varies widely based on condition, options (heated, memory), and whether sold as a single seat or a pair. |
| Shop Labor (Installation) | $100 - $200 | Typically a straightforward job taking about one hour of labor per seat. |
Frequently Asked Questions (FAQ)
Can I install a 2013 seat in my 2008 Corvette?
Physically, the seat will bolt in, as the mounting points and seat frames are the same across the C6 generation. However, the electrical connectors for options like heat, memory, and side airbags may not be compatible without modification. If your goal is the updated look, a more reliable method is to transfer the 2012-2013 foam and leather covers onto your original 2008 seat frame.
Why is my airbag light on after replacing the seat?
The most common reason is an issue with the Passenger Presence System (PPS) or the side airbag connector. Ensure the yellow airbag connector is fully seated. If you installed a used passenger seat, the PPS sensor mat may be faulty or require calibration to the car's airbag control module. Any fault in the airbag circuit will keep the warning light on.
How do I fix a rocking C6 Corvette seat?
The common rocking issue is usually caused by wear in the seat track mechanism, not the seat itself. Some owners have had success with DIY fixes like tightening loose bolts or adding hose clamps to reinforce weak plastic parts in the height adjustment mechanism. However, the most permanent solution is often to replace the entire seat track assembly, which can be an expensive part.
Is it better to reupholster my seat or buy a used one?
This depends on the problem. If your seat's frame and electronics are working perfectly but the leather is worn, reupholstering with a new cover and foam can be a great option for a like-new result. If your seat has multiple problems like a bad motor, broken frame, and torn leather, buying a complete, good-condition used seat is often more cost-effective.
Helpful Videos
Technical Specifications
OEM Part Numbers: 10334284 10399538 19259378 19259379 19259380 19259381 19259902 19259903 19259972 19259973 19259975 19259981 19259983 19293288 19293301
Fits 2012-2013 models with updated seat design. Features include optional side impact airbags, seat heating (KA1), power adjustments (AG2), and driver memory (AAB). Passenger seat includes integrated Passenger Presence System (PPS) sensor.
