Mercedes A, CLA, GLB, GLA & B-Class Seat Belt Buckle Failure and SRS Light (2018-2023)
Diagnosing and fixing the common SRS warning light caused by a faulty driver-side seat belt buckle in 2018-2023 Mercedes compact models.
- The primary symptom is an SRS warning light, which means the ENTIRE airbag system is disabled and will NOT deploy in a crash.
- This is NOT a DIY job. Replacement requires a Mercedes-specific scan tool to reset the SRS module and clear the fault codes; failure to do so leaves the system inactive.
- A recall on similar models for the same issue (NHTSA #19V788) suggests this is a known weak point from the manufacturer for this era of vehicles.
- A quality used OEM part is a viable option, but professional installation and system reset are still mandatory for safety and legal reasons.
Symptoms of a Faulty Seat Belt Buckle
The most common and serious symptom of a failing seat belt buckle is the illumination of the red SRS warning light on your instrument cluster. This is often accompanied by a message like "Restraint System Malfunction, Visit Workshop."
- SRS Warning Light: A constant SRS light is the primary indicator. The internal sensor in the buckle has failed or has a poor connection, and the SRS computer has flagged a fault.
- No Warning Chime: You may notice that the car no longer chimes or warns you when you drive without the driver's seat belt fastened. This is a clear sign the car doesn't recognize the belt's status.
- Intermittent Warnings: The SRS light may come on and off, especially when the seat is moved or the buckle is wiggled. This points to a loose connection or a sensor that is on the verge of complete failure.
Warning: When the SRS light is on, the entire airbag and pretensioner system is disabled. This means that in the event of an accident, NO airbags will deploy, and the seat belt pretensioners will not activate. This is a critical safety failure that requires immediate attention.
Known Issues, TSBs, and Recalls
While not all vehicles in this guide were covered under a specific recall for this exact part, Mercedes-Benz has issued recalls for very similar issues on other models from the same time period, indicating a potential pattern of manufacturing or design flaws with the buckle's internal switch.
- NHTSA Recall 19V788 (Mercedes Campaign 2020020017): This recall affected 2018-2019 E-Class, C-Class, and GLC-Class models, among others. The issue was that a correctly latched front seat belt could be erroneously detected as unlatched. This would prevent the PRE-SAFE functions and belt pretensioners from activating in a crash, increasing injury risk. The cause was identified as front seat belt buckles not being manufactured to specification.
- 2020 GLB250 Software Recall: Some 2020 GLB250 models were recalled because the airbag control unit software might not properly activate the front seat belts and passenger airbag.
These official recalls on related models strongly suggest that the buckle is a known weak point in this generation of Mercedes-Benz vehicles.
Professional Installation is Required
CRITICAL SAFETY WARNING: This is NOT a DIY repair for the average mechanic. This part is an integral component of the Supplemental Restraint System (SRS). Improper installation, or failure to properly calibrate the system after installation, can lead to complete failure of the airbag system.
- System Reset Required: After the new buckle is installed, the stored fault codes in the SRS module MUST be cleared using a Mercedes-Benz specific diagnostic scan tool (like XENTRY/DAS, or a high-end professional scanner from Autel or iCarsoft 🎬 See how to diagnose and reset the SRS light properly.). A generic OBD-II code reader cannot access or reset the SRS module. Failure to do this will leave the SRS light on and the airbag system inactive.
- Legal & Liability Risks: Federal law prohibits automotive repair businesses from rendering any safety device inoperative. Many states have specific laws prohibiting the sale or installation of used, faulty, or non-functional SRS components. Performing an incorrect repair on a safety system could open you to significant legal liability in the event of an accident.
Diagnosis & Replacement Overview
A professional technician will first scan the SRS module to confirm the fault code points to the driver's side buckle 🎬 Watch: Mercedes seat belt buckle replacement and SRS reset walkthrough. (e.g., a code for 'S68/3' which is the driver's seat belt buckle switch). The replacement itself is mechanically straightforward but requires the crucial electronic reset.
- Disconnect the vehicle's battery to de-energize the SRS system.
- Remove the plastic trim cover on the side of the seat to access the buckle's mounting point.
- Unplug the single electrical connector from the buckle.
- Using a T50 Torx bit, remove the single bolt securing the buckle to the seat frame.
- Install the new buckle, torquing the bolt to the manufacturer's specification.
- Reconnect the electrical plug and reinstall the trim.
- Reconnect the battery.
- Using a diagnostic scanner, clear the fault codes from the SRS control module and verify the light goes out.

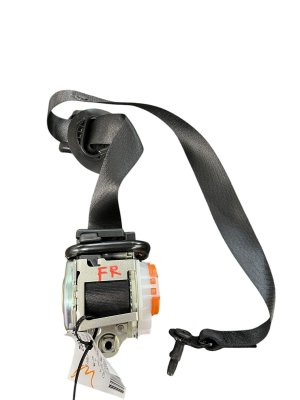

Buying a Used Seat Belt Assembly
For a component like this, a quality used OEM part is often a reliable and cost-effective alternative to a new part from the dealer. However, it is critical to buy from a reputable source and inspect the part carefully.
- Why Used OEM is a Good Choice: A used OEM buckle was manufactured by Mercedes-Benz to their exact specifications for fitment and electronic communication with the SRS module. This is often preferable to a new aftermarket part from an unknown brand, which may have questionable quality control for such a critical safety component.

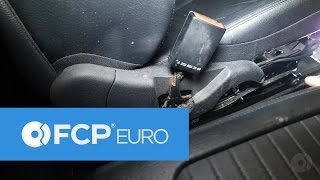

- Physical Inspection: Before purchasing, ensure the part has no visible damage. The electrical connector pins should be straight and free of corrosion. The buckle mechanism should click decisively 🎬 Watch this guide for troubleshooting and replacing Mercedes buckles. when you insert a metal object.
- Verify Compatibility: Match the part number exactly if possible. The OEM numbers for this part are A2478600169 and A2478609503. Ensure it is for the correct side (driver/left).
- Red Flags: Avoid any parts that show signs of being in a flood (silt, rust) or from a vehicle that was in a major collision. While the buckle itself is not a pyrotechnic device like the retractor, it's best to source parts from vehicles with no accident history.
Cost Comparison
| Part Type | Estimated Cost |
|---|---|
| New OEM (Dealer) | $115 - $165 |
| New Aftermarket | $35 - $85 |
| Used OEM | $35 - $80 |
| Shop Labor (incl. SRS Reset) | $120 - $270 |
Frequently Asked Questions (FAQ)
Can I just clear the SRS light without replacing the part?
No. The SRS light indicates a hard fault detected by the system. Even if you clear the code with a proper scanner, it will immediately return because the underlying problem—the faulty buckle sensor—still exists. The part must be replaced to fix the issue.
Why is the SRS light on if my airbags haven't deployed?
The SRS system continuously self-checks all its components, including sensors in the seats, buckles, and the airbags themselves. The light comes on when any of these components reports a fault, has a bad connection, or fails to respond to the self-check. It is a warning that the system is not healthy and may not function in a crash.
Is it safe to install a used seat belt buckle?
Yes, provided it is a genuine OEM part from a reputable source and shows no signs of damage. Unlike the seat belt retractor, the buckle itself does not contain explosives (pyrotechnics) and is not a one-time-use item unless it is physically damaged. However, due to its critical safety function, professional installation and system reset are still required.
Can I replace the buckle myself to save money?
It is strongly discouraged. While the physical replacement is simple (one bolt and one plug), the mandatory SRS system reset requires a specialized, expensive diagnostic tool that most DIY mechanics do not own. Skipping this step will leave your vehicle's entire airbag system disabled. The risk of error and potential for liability far outweigh the potential cost savings.
Helpful Videos
Technical Specifications
OEM Part Numbers: A2478600169 A2478609503 A24786095039051 A24686001699051 A2478600169649051 A24786001699051 A24786022019051
Driver's side (left) front seat belt buckle with integrated belt status sensor. Requires T50 Torx bit for removal/installation.
