2011-2024 Camaro Seat Belt Guide: SRS Faults, Recalls, and Replacement Risks

Understanding the SRS Warning Light: A Critical Safety Alert

An illuminated Supplemental Restraint System (SRS) warning light on your dashboard is the most serious symptom of a seat belt issue. This light indicates that the vehicle's computer has detected a fault in the safety system. This could be a problem with an airbag, a crash sensor, or the seat belt pretensioner itself. When this light is on, you must assume the entire SRS system is disabled. This means that in the event of a crash, the airbags may not deploy and the seat belt pretensioners will not fire. Ignoring this light means you are driving without the vehicle's primary passive safety features.

Known Recalls and Technical Service Bulletins (TSBs)

Several recalls and safety notices have been issued for the 5th and 6th generation Camaro that relate to the seat belt and broader SRS system. Always check your specific VIN with a dealer or on the NHTSA website for applicability.

• NHTSA Recall N202322230: Affects some 2021 Camaro models. Incorrect bolts may have been used to secure the seat belts to the vehicle frame. This could prevent the belt from properly restraining an occupant in a crash. Dealers will replace the suspect bolts free of charge.
• Seat Height Adjuster Bolt Recall: Affects some 2011-2012 Camaro models with power seats. A bolt securing the seat height adjuster could loosen or fall out, causing the seat to suddenly drop to its lowest position. This can affect the driver's control of the vehicle and proper seat belt positioning.
• GM Ignition Switch Recall: The 5th-generation Camaro (2011-2015) was part of the widespread GM ignition switch recall. A faulty switch could move out of the 'run' position while driving, disabling the engine and the entire SRS system, including pretensioners and airbags.

Symptoms of a Failing Seat Belt Assembly

Beyond the SRS light, other physical symptoms can indicate a problem. Any of these issues warrant an immediate inspection.

Slow or No Retraction

When you unbuckle the belt, it should retract smoothly and completely into the B-pillar. If the belt retracts very slowly, hangs loosely, or needs to be manually fed back in, the retractor's internal spring mechanism is failing. A loose belt is a safety hazard as it cannot provide proper restraint in an accident.

Belt is Locked or Jammed

If the belt will not pull out from the retractor, it is likely locked. This can happen for two main reasons: the internal locking mechanism has failed, or the pretensioner has been deployed in an accident. Even a minor collision that doesn't deploy the airbags can be enough to fire the pretensioner, permanently locking the belt. A deployed seat belt cannot be repaired and must be replaced.

Visible Damage to Webbing

Inspect the entire length of the belt webbing for any cuts, fraying, or discoloration from sun exposure. Damaged webbing is significantly weaker and can tear under the force of a collision, failing to protect the occupant.

Buying a Used 2011-2024 Camaro Seat Belt Assembly: A Buyer's Guide

A used OEM seat belt assembly can be a cost-effective solution, but careful inspection and verification are mandatory to ensure safety.

CRITICAL: How to Identify a Deployed Pretensioner

Never purchase or install a seat belt from a vehicle that has been in an accident. A deployed pretensioner is a one-time-use device. When fired, the mechanism locks the belt permanently. You may see signs like compressed or distorted components on the retractor or buckle assembly where the charge is located. The belt itself will be locked and will not extend. Ask the seller directly if the part came from a collision vehicle. If there is any doubt, do not buy the part.

Physical Inspection Checklist

• Webbing: Pull the belt out to its full length. Look for any fraying, cuts, melted spots, or chemical stains. The material should be flexible and strong.
• Retractor: Tug sharply on the belt to ensure the locking mechanism engages. Then, allow it to retract to check for smooth, consistent tension.
• Buckle: Ensure the buckle latches securely with a clear 'click' and releases without sticking.
• Connectors: Check that the electrical connector and its wiring are intact, with no cut wires or damaged pins. This is crucial for the SRS system to recognize the component.

Compatibility: The Biggest Challenge

Camaro seat belts are highly specific. A part from the wrong model will not fit or function correctly. Verify these four points before buying:

1. Generation: 5th Gen (2011-2015) and 6th Gen (2016-2024) parts are not interchangeable.
2. Body Style: Coupe and Convertible models use different seat belt assemblies. They are not interchangeable.
3. Position: Belts are specific to the Driver (LH) and Passenger (RH) sides.
4. Design Version (5th Gen): For 2012-2015 models, GM introduced a '2nd Design' assembly. There are differences between 2010-2011 and 2012-2015 parts. It is critical to match the part number or visually confirm the design from your existing belt.

Professional Installation: A Requirement, Not a Suggestion

Legal and Safety Risks of DIY Installation

Installing a used SRS component yourself carries significant risk. Federal law prohibits a repair business from 'rendering inoperative' a safety system, and many states have laws against installing non-functional or incorrect SRS parts. If an improperly installed seat belt fails in a crash, the person who installed it could be held liable. Due to the explosive pretensioner, DIY installation poses a direct risk of serious personal injury.

SRS System Reset and Calibration

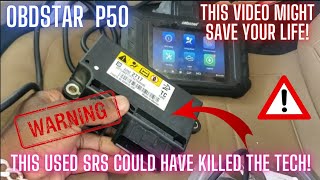

After replacing a seat belt assembly, the SRS control module must be reset. The module stores 'crash data' and fault codes that will keep the SRS light on even with the new part installed. This is not something that can be done by disconnecting the battery. A professional technician must use a specialized diagnostic scan tool to clear these codes and verify that 🎬 Watch: Professional SRS module reset demonstration the entire system is communicating correctly and is ready to function.

Cost of Replacement for a Single Seat Belt Assembly

Note: Prices are estimates and can vary based on location, vehicle specifics, and part availability. The 'Repair Service' option involves sending your deployed/locked original belt to a specialist who rebuilds the pretensioner mechanism.

Frequently Asked Questions (FAQ)
