2015-2017 Ford Expedition Rear Clip: A Collision Repair Guide

When is a Rear Clip Replacement Necessary?

A rear clip is only needed for severe rear-end collision damage. If the quarter panels, floor pan, and rear support structures are crushed or bent beyond what a frame machine and traditional bodywork can fix, a rear clip is the most effective solution. This is a structural repair that restores the vehicle's integrity, panel alignment, and crash-worthiness. Minor to moderate damage is typically fixed by replacing individual components like the bumper cover, reinforcement bar, or a single quarter panel.

Known Issues, TSBs, and Recalls

While there are no recalls or technical service bulletins (TSBs) specifically for the rear clip structure itself, several issues exist for components located in the rear of the 2015-2017 Expedition that are important to check, especially when buying a used clip that may include wiring or a liftgate.

• Recall 25V572000 (NHTSA ID): Affects 2015-2017 Expedition and Navigator vehicles where the rearview camera may display a blank, distorted, or inverted image. The cause is a loss of electrical conductivity inside the camera. Dealers will inspect and replace the camera if necessary. When purchasing a used clip with a liftgate, assume the camera may be faulty.

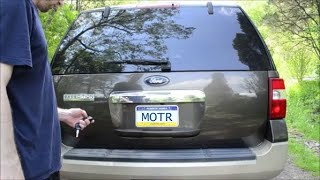

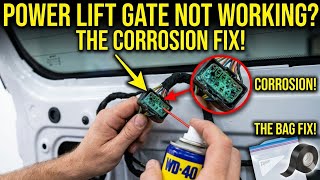

• Power Liftgate Malfunctions: Owners report intermittent or complete failure of the power liftgate. Symptoms include the liftgate not opening, displaying a 'liftgate ajar' message, or opening/closing randomly. One common cause is water leaking past the rear window or upper liftgate seals, which then runs down and corrodes the wiring harness connectors inside the liftgate panel. 🎬 Watch this guide to diagnose water leaks in the liftgate wiring Inspecting these connectors for green or blue corrosion is critical.
• Aluminum Body Corrosion (TSB 19-2026, 20-2233): Ford issued bulletins for bubbling or peeling paint over aluminum body panels, which includes the liftgate on the Expedition. This is a cosmetic issue but should be inspected on any used liftgate assembly.

Buying a Used 2015-2017 Expedition Rear Clip

Purchasing a used rear clip is the only practical way to acquire one. Success depends entirely on verifying compatibility. You must match three key features of your vehicle to the donor vehicle:

1. Wheelbase: Standard vs. EL/Max

This is the most critical difference. The standard Expedition has a shorter body and wheelbase than the extended-length (EL or Max) version. The quarter panels, floor pan, and roof are not interchangeable between the two.

• Standard Expedition: 122.5-inch wheelbase, 210-inch overall length.
• Expedition EL / Max: 131.6-inch wheelbase, 221.9-inch overall length.

A used quarter panel from a standard model will not fit an EL/Max, and vice-versa. Always confirm the wheelbase of the donor vehicle.

2. Liftgate: Power vs. Manual

The 2015-2017 Expedition was available with both manual and power liftgates. If your clip includes the liftgate, it's crucial to match the type.

• Power Liftgate: Includes a motor, control module, and specific wiring harnesses. Problems are common, often related to water intrusion corroding connectors.
• Manual Liftgate: Has simpler mechanics and wiring.

While you can transfer your original liftgate to the new clip, getting a clip with the correct liftgate type simplifies the process and ensures all wiring and mounting points are correct.

3. Sunroof: With or Without

If the rear clip you are buying includes the roof section (a 'full clip'), you must match the sunroof configuration. A vehicle with a sunroof has a different roof panel structure and may have different headliner mounting points and wiring for the rear sunroof drain tubes. A non-sunroof roof panel cannot be easily modified to accept the factory sunroof assembly.

Physical Inspection Checklist:

• Check for Hidden Damage: Inspect the clip thoroughly for any damage beyond the cut lines. Look for small buckles in the floor pan, dents in the quarter panels, or signs of previous repair (e.g., body filler, non-factory welds).
• Verify Cut Points: Ensure the salvage yard has provided enough material to work with. The cuts should be made well forward of the damaged area on your vehicle, typically at the C-pillars and across the floor pan under the second-row seats.
• Inspect Wiring: Check all included wiring harnesses for cuts, corrosion, or damage. Pay close attention to the liftgate harness connectors inside the tailgate panel.
• Confirm Included Parts: Clarify exactly what is included. Does it come with the liftgate, taillights, bumper, and interior trim panels? Getting a more complete assembly can save time and money.

Cost of Replacement

The cost of this repair is substantial and dominated by labor. Since a 'rear clip' is not sold as a new part, the comparison is between buying a used clip assembly versus buying all constituent parts new from the manufacturer.

Note: Prices are estimates and can vary significantly based on location, the extent of the damage, and the specific parts included in the used clip.
