2005-2014 Ford E-Series Van Rear Bumper: Fitment, Rust, and Replacement Guide

Key Part Identification

This guide focuses on the chrome rear bumper assembly for the 2005-2014 Ford E-150, E-250, E-350 Super Duty, and E-450 Econoline Super Duty vans. It is crucial to understand that this is the base model bumper, not the optional, heavier-duty step bumper. Before purchasing, verify your vehicle's configuration.

Symptoms of a Failing Rear Bumper

Failure in a bumper is typically visible. Here’s what to look for:

• Visible Damage: Dents, cracks, or deformation from an impact are the most obvious signs. Even minor impacts can compromise the bumper's structural integrity and its ability to protect the vehicle in a future collision.
• Rust and Corrosion: Chrome bumpers on these work vans are highly susceptible to rust, especially in regions that use road salt in the winter. Look for bubbling or peeling chrome, which exposes the steel underneath and accelerates corrosion. Severe rust can weaken the bumper and its mounting brackets.
• Loose or Misaligned Bumper: If the bumper is rattling, sagging, or appears crooked, it's a sign that the mounting brackets or bolts are loose, broken, or rusted through. This is a safety hazard, as the bumper could detach from the vehicle.
• Damaged Accessories: A damaged bumper can lead to broken license plate lights or severed wiring for those lights.

Known Issues, TSBs, and Recalls

As of this writing, there are no specific recalls or Technical Service Bulletins (TSBs) from the National Highway Traffic Safety Administration (NHTSA) directly related to the failure or corrosion of the rear bumper itself for the 2005-2014 E-Series vans. Most recalls for this vehicle range pertain to other systems like wheelchair lifts, fuel systems, or windshield wipers. The most common owner-reported issue is significant rust and corrosion, which is generally considered a wear-and-tear item rather than a manufacturing defect.

Buying a Used Rear Bumper Assembly

Purchasing a used OEM bumper can be a great way to save money, as the original Ford parts often have better quality steel and chrome plating than cheap aftermarket alternatives. Here’s what to inspect:

1. Verify the Style: First, confirm it's the correct non-step, no-sensor chrome bumper for the E-Series van.
2. Check for Straightness: Lay the bumper on a flat floor. It should sit flush without rocking or twisting. Any warping indicates it has been in an accident and will not fit correctly.
3. Inspect the Backside: This is the most important check. Look for hidden cracks, bends, or previous repair attempts (welds, body filler) that aren't visible from the front. A small dent on the face can hide a severely bent mounting point on the back.
4. Examine the Chrome Finish: Look for deep scratches, peeling, or bubbling. Minor surface rust might be removable, but once the chrome starts to peel, the bumper will quickly deteriorate.
5. Check Mounting Points: The mounting flanges and bolt holes must be solid, free of cracks, and not severely rusted or bent. A bumper with compromised mounting points is unsafe and unusable.

Cost Comparison

Prices can vary based on supplier, condition, and location. The following is an estimate of what you can expect to pay.

Replacement Guide (DIY)

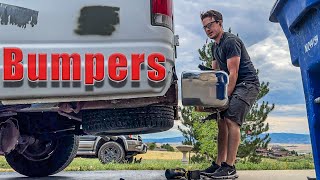

Replacing the rear bumper on a Ford E-Series van is a straightforward job that can typically be done 🎬 See how to remove the front and rear bumpers on an Econoline van. with basic hand tools. However, rusted bolts can make the job significantly more difficult.

• Difficulty: 2/5 (if bolts are not seized), 4/5 (if bolts are seized and require cutting)
• Estimated Time: 1-2 hours
• Tools Needed: Ratchet with extension, 18mm or 21mm socket (depending on year/hardware), 13/16" deep socket, penetrating oil, wire brush, angle grinder with cutting wheel (for seized bolts).

Step-by-Step Process:

1. Safety First: Park on a level surface and wear safety glasses.
2. Apply Penetrating Oil: Generously spray all mounting nuts and bolts with penetrating oil and let them soak.
3. Disconnect Wiring: If your bumper has license plate lights, disconnect the wiring harness. The connector is typically located just inside the frame rail.
4. Remove Mounting Hardware: The bumper is held to the frame rails by several nuts and bolts. There are typically two or three on each side. Use a long ratchet or breaker bar for leverage.

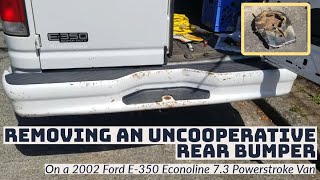

5. Dealing with Spinning Bolts: A very common problem is that the carriage bolts, which are pressed into the bumper, will break free from their plastic retainers and spin when you try to loosen the nut. If this happens, the only solution is to cut the bolt head off from the front side of the bumper using an angle grinder. 🎬 Watch this guide on removing rear bumper bolts when they spin. Be careful not to damage the surrounding metal.

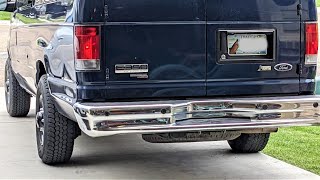

6. Remove the Bumper: With the hardware removed, the bumper can be pulled straight back off the frame rails. 🎬 Watch a full walkthrough of Econoline rear bumper removal. It is moderately heavy, so having a helper or a jack stand for support is recommended.
7. Installation: Clean the frame mounting surfaces with a wire brush. Position the new bumper and install the new hardware. Torque the bolts to factory specifications if available, or until snug and secure. Reconnect the license plate light wiring.
