2012-2018 VW Tiguan Radiator Support: Damage Guide & The 2018 'Limited' Trap
This is your definitive guide to inspecting, pricing, and replacing the radiator support on the first-generation Volkswagen Tiguan, including the critical 2018 Tiguan Limited compatibility warning.
- For the 2018 model year, this part fits the Tiguan 'Limited' model ONLY, not the redesigned 2018 Tiguan.
- Damage is almost always caused by a front-end collision; symptoms include misaligned panels and potential overheating.
- When buying used, check for cracks (especially at mounting points) and warping to ensure proper fitment of headlights and body panels.
- Replacement is a DIY-possible but involved job; the radiator and A/C condenser can often be left connected and supported from below to save time.
Symptoms of a Damaged Radiator Support
Damage to the radiator support is almost always caused by a front-end collision, from a major accident to a minor parking lot bump. Because it's a structural piece, any damage can cause a cascade of other issues. Here’s what to look for:
- Misaligned Front-End Panels: This is the most common symptom. A bent or cracked support can cause the hood to close improperly, create uneven gaps between the fenders and hood, or make headlights appear crooked.

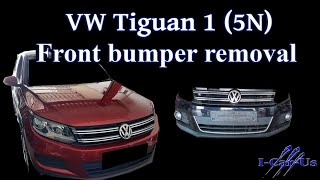

- Visible Cracks or Breaks: A visual inspection after removing the front bumper cover 🎬 Watch: Step-by-step guide to removing the front bumper cover may reveal obvious cracks, especially around mounting points for the radiator or headlights. Since the part is plastic, it will crack rather than bend.
- Engine Overheating: If the support is broken, the radiator can shift out of position. This can reduce airflow, or worse, allow the radiator to make contact with the engine's cooling fan, causing leaks and leading to overheating.
- Rattling or Clunking Noises: A loose or broken support can cause the radiator and other attached components to vibrate or move while driving, creating unusual noises from the front of the vehicle.
Critical: The 2018 Tiguan vs. 2018 Tiguan 'Limited'
For the 2018 model year, Volkswagen sold two different versions of the Tiguan:
- The 2018 Tiguan Limited was a carryover of the first-generation body style (2012-2017).
- The 2018 Tiguan was a completely new, redesigned model that is longer and wider.

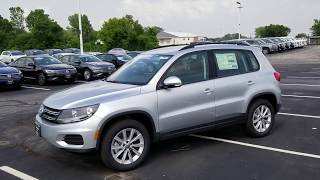

This radiator support (part number 5N0805588F) ONLY fits the 2018 Tiguan Limited. It will NOT fit the redesigned 2018 Tiguan, which uses a different part (like 5NN805588K). Always verify which model you have 🎬 See a detailed walkaround of the 2018 Tiguan Limited model before purchasing.
Buying a Used Radiator Support: What to Check
A used OEM radiator support is an excellent value, but a thorough inspection is key to avoiding problems. A damaged support can make a straightforward repair a nightmare of poor fitment. Here's your inspection checklist:
- Check All Mounting Points: Carefully inspect every tab, bracket, and hole where other parts attach. Pay close attention to the mounting locations for the headlights, radiator, A/C condenser, and bumper. These are common break points.
- Look for Cracks: Flex the part slightly and look for hairline cracks, especially around corners and bolt holes. A small crack can spread under the stress of driving.
- Verify Straightness: Lay the support on a flat surface to check for any warping or twisting. A warped support will prevent the hood, bumper, and headlights from aligning correctly.
- Inspect for Past Repairs: Look for signs of plastic welding, epoxy, or fillers. While some repairs can be done well, they often create weak points that may not hold up. A part with no prior repairs is always the safest bet.
Pro Tip: Choosing a straight, undamaged used OEM support over a new, cheap aftermarket part is often the better choice. OEM parts guarantee correct fitment, ensuring all your lights, panels, and cooling components line up exactly as they should from the factory.
Known Issues, Recalls, and TSBs
There are no specific recalls or Technical Service Bulletins (TSBs) issued by Volkswagen or the NHTSA for the radiator support itself on the 2012-2018 Tiguan. Failures are exclusively linked to physical damage from impacts.
However, it is worth noting that the 2017-2018 Tiguan Limited was subject to a recall (NHTSA Campaign Number: 18V418000) for a non-compliant driver's side airbag that could increase the risk of injury during deployment. This does not affect the radiator support but is important safety information for owners of these specific model years.
Replacement Difficulty and Cost
Replacing the radiator support is a moderately difficult job that requires significant disassembly of the front end. While it can be done by a skilled DIY mechanic, it is time-consuming.
- Difficulty: 4 out of 5
- Estimated Time: 3-5 hours for DIY, 2-3 hours for a professional.

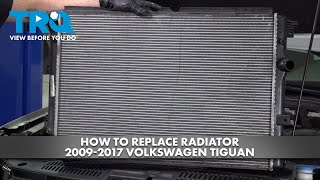

- Walkthrough: The process involves removing the front bumper cover, headlights, and the metal crash bar. A key tip from mechanics is to support the radiator and A/C condenser assembly from below with a jack or stand. This allows you to unbolt the old radiator support and slide it out without having to disconnect the A/C lines or drain the engine coolant, saving significant time and effort. 🎬 Watch: How to access and replace the radiator assembly
Cost Comparison
The cost for a replacement radiator support can vary significantly based on the type of part you choose. Labor costs at a repair shop typically range from $200 to $400.
| Part Type | Estimated Price Range |
|---|---|
| New OEM (Dealer) | $400 - $500 |
| New Aftermarket | $70 - $150 |
| Used OEM | $100 - $250 |
| Shop Labor | $200 - $400 |
Frequently Asked Questions (FAQ)
How do I know if I have a 2018 Tiguan or a 2018 Tiguan Limited?
The easiest way to tell is by size. The redesigned 2018 Tiguan is over 10 inches longer than the 2018 Tiguan Limited. The Tiguan Limited shares the exact same body style and dimensions as the 2012-2017 models, while the redesigned Tiguan looks visibly larger and has a different headlight and grille design.
Is it safe to drive with a cracked radiator support?
It is not recommended. Even a small crack can compromise the structural integrity of the front end. A broken support can allow the radiator to move, potentially causing coolant leaks, overheating, and damage to other components. If the damage is severe, it could affect headlight aim and the security of the hood latch, making the vehicle unsafe to drive.
Can a cracked plastic radiator support be repaired?
Generally, no. While plastic welding is possible, the structural integrity is often compromised. Given the critical role this part plays and the availability of affordable replacements, replacing the entire support is the only recommended and safe repair method.
Will a damaged radiator support always cause the car to overheat?
Not always, but it significantly increases the risk. If the support is damaged in a way that pushes the radiator back or blocks airflow, the cooling system's efficiency will be reduced, which can lead to overheating, especially in hot weather or stop-and-go traffic.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5N0805588B 5N0805588D 5N0805588F
Material: Plastic Composite
