2016-2021 Mazda CX-3 Radiator Support: The Critical Radar Cruise Control Check

Main Symptoms of a Damaged Radiator Support

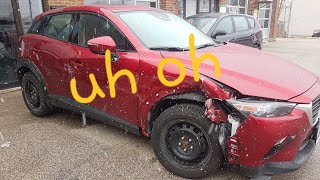

A radiator support doesn't have mechanical or electrical parts, so it doesn't 'fail' in the traditional sense. Instead, it gets damaged, almost always from a front-end collision or impact. Even a minor bump can cause cracks or breaks. Here are the common signs of a damaged radiator support:

• Poor Panel Alignment: The most obvious symptom is when the front body panels don't line up. You may notice uneven gaps between the hood and fenders, or the front bumper cover may sag or look crooked.
• Hood Latch Problems: If the hood is difficult to close or doesn't latch securely, it could be because the support that holds the latch mechanism has been knocked out of position.
• Headlights Pointing Incorrectly: Headlights are mounted to the radiator support. If the support is bent or cracked, your headlights may point too high, too low, or to the side, creating a safety hazard.
• Visible Cracks or Damage: A visual inspection will often reveal the problem. Look for cracks, especially around bolt holes and mounting tabs, or any sections that are bent or warped.
• Overheating: If the support is pushed back, it can misalign the radiator and cooling fans, reducing airflow and causing the engine to run hot or overheat.
• Unusual Noises: A rattling or clunking sound from the front of the car could indicate that the radiator or other components are loose because their support structure is broken.

Critical Compatibility Check: Mazda Radar Cruise Control (MRCC)

The single most important factor when purchasing a radiator support for a 2016-2021 Mazda CX-3 is whether your vehicle is equipped with Mazda Radar Cruise Control (MRCC), also called adaptive cruise control. The two versions of the radiator support are NOT interchangeable.

• Vehicles WITHOUT MRCC: Use part number D10E-53-110A.
• Vehicles WITH MRCC: Use part number DB2P-53-110A. This version has a specific mounting bracket built into the support to hold the radar sensor.
🎬 Watch: How the front radar sensor is calibrated

Installing the wrong support will either leave you with no place to mount your radar sensor or with an unnecessary bracket. Before ordering, confirm which system your vehicle has. You can typically tell if you have MRCC by looking for extra distance-setting buttons on your steering wheel's cruise control panel.

Buying a Used 2016-2021 CX-3 Radiator Support

A used OEM radiator support is often a better choice than a new aftermarket part. Aftermarket supports are known for poor fitment, which can lead to hours of frustration during installation and result in unsightly panel gaps. A used OEM part from an undamaged donor vehicle will fit perfectly.

What to Inspect:

• Check for Cracks: Carefully inspect the entire part, paying close attention to the mounting points for the headlights, radiator, and fenders. Even small hairline cracks can compromise the structural integrity.
• Look for Warping: Lay the support on a flat surface to check for any twisting or warping. A warped support will make proper panel alignment impossible.
• Verify All Tabs are Intact: Ensure all small mounting tabs and clips are present and unbroken. These are critical for securing the bumper cover and other trim pieces.
• Avoid Previous Repairs: Do not buy a support that shows signs of being repaired with glue, epoxy, or plastic welding. These repairs are rarely as strong as the original material and will likely fail.

Replacement Overview & Difficulty

Replacing the radiator support is an advanced job for a DIY mechanic. While it doesn't require specialized mechanical knowledge, it is labor-intensive and involves the disassembly of the entire front of the car.

• Difficulty: 4 out of 5
• Process: The general steps involve removing the front bumper cover, 🎬 Watch: How to remove the front bumper cover headlights, and hood latch. The radiator and A/C condenser must be unbolted from the support. In many cases, the cooling system will need to be drained to remove the radiator hoses. If the A/C condenser lines are disconnected, the A/C system will need to be professionally evacuated and recharged. The old support is then unbolted from the frame rails and the new one is installed, followed by reassembly of all components.

Known Issues, Recalls, and Service Bulletins

As of mid-2024, there are no specific recalls or Technical Service Bulletins (TSBs) from Mazda or the NHTSA related to the radiator support itself. However, there are a few related items for the 2016-2021 CX-3:

• Rearview Camera Recall (NHTSA 23V487000): A recall was issued for the rearview camera image flickering or failing. This is caused by a faulty wiring harness connector, not the radiator support.
• Front Strut Bolt Recall: Some 2016 models were recalled for front strut mounting bolts that could loosen, potentially causing a loss of steering control.
• Coolant Filling Procedure (TSB SA-065-22): While not a defect, Mazda issued a TSB for difficulty in refilling the coolant on these vehicles. Air can become trapped if the ignition is on during filling, blocking coolant flow. The proper procedure is to fill slowly with the ignition completely off.
🎬 See this guide on bleeding the cooling system

Cost Comparison

Note: Labor costs can vary significantly. Replacing the radiator support is part of the same labor as replacing the radiator itself. Some estimates for radiator replacement labor are between $342 and $501.
