2010-2016 Cadillac SRX Radiator Support: Why Front-End Alignment Depends On It
This guide covers the common failure points, inspection tips for used parts, and replacement costs for the radiator support on a 2010-2016 Cadillac SRX.
- The radiator support is a critical structural component that determines the alignment of the entire front end, including the hood, fenders, and bumper.
- Failure is almost always due to a front-end collision. Key symptoms are misaligned panels and difficulty latching the hood.
- When buying used, prioritize a straight, crack-free OEM part over a new aftermarket one to ensure perfect fitment, which is essential for this part.
- Replacement is a complex, 5/5 difficulty job requiring a complete teardown of the front end and is not recommended for DIYers.
Symptoms of a Damaged Radiator Support
Since the radiator support is a structural component, signs of failure are almost always the result of a front-end collision, though rust can also be a factor in some climates. Damage is often visible and affects the alignment of surrounding parts.
- Misaligned Body Panels: Uneven gaps between the hood, fenders, and bumper are a classic sign of a bent or damaged radiator support. You might notice one side of the hood is closer to the fender than the other.
- Hood Latch Problems: If the hood is difficult to open or close, or if it won't latch securely, the support may be bent, moving the latch mechanism out of alignment.
- Headlights Pointing Incorrectly: Headlight housings mount to the radiator support. If the support is damaged, your headlights may appear sunken, uneven, or point in the wrong direction.
- Visible Cracks or Bends: A visual inspection may reveal obvious cracks (especially on plastic sections), bends in the metal frame, or broken mounting tabs where other components attach.
- Overheating: In severe cases, if the support is pushed back far enough, it can shift the radiator and fans, restricting airflow or damaging the radiator itself, which can lead to engine overheating.
- Unusual Noises: A damaged or loose support can cause rattling, creaking, or clunking sounds from the front of the vehicle, especially when driving over bumps.
Warning: Driving with a significantly damaged radiator support is not recommended. It compromises the structural integrity of the vehicle's front end and can affect the performance of safety systems in a subsequent collision.
Buying a Used 2010-2016 SRX Radiator Support
A used OEM radiator support is often a better choice than a new aftermarket part. OEM parts guarantee perfect fitment, which is critical for a structural component that affects the alignment of so many other parts. Aftermarket supports can have slight variations in hole placement or dimensions, leading to frustrating installation and poor panel gaps. When inspecting a used OEM radiator support, here’s what to look for:
Inspection Checklist:
- Check for Cracks and Stress Marks: Carefully examine all surfaces, especially around mounting holes and corners. Look for fine cracks or white stress marks on the plastic sections.
- Verify Straightness: Lay the support on a flat surface. It should sit flush without rocking. Look down the length of the main cross bars to spot any subtle bends or twists. Even a slight bend can cause major alignment headaches.
- Inspect All Mounting Tabs: Account for every tab and mounting point for the radiator, condenser, headlights, and bumper. Ensure they are all present and free of cracks or damage. A broken tab can mean a critical component cannot be secured properly.
- Look for Signs of Previous Repair: Be wary of parts that show signs of repair. Look for inconsistent weld marks, excessive body filler, or areas with mismatched or fresh paint that could be hiding damage. Factory welds are typically uniform and clean.
- Examine the Lower Tie Bar: The lower section is most susceptible to damage from curb impacts. Check it for dents, deep scrapes, or bends.
- Confirm Part Number Compatibility: While multiple part numbers may be interchangeable, it's always best to match the number from your old part if possible. Bring your old part or photos of it for comparison.
Pro Tip: A good used OEM radiator support pulled from a vehicle that was not in a front-end collision (e.g., a side or rear impact) is the ideal choice. It will have the strength and precise fitment of a new OEM part at a fraction of the cost.
Replacement Overview and Difficulty
Replacing the radiator support on a 2010-2016 Cadillac SRX is a complex and labor-intensive job. It is not recommended for a beginner DIY mechanic. The process involves dismantling the entire front end of the vehicle.
Procedure involves:
- Draining the coolant.
- Disconnecting the battery.
- Removing the front bumper cover 🎬 Watch: Step-by-step guide to removing the SRX front bumper and reinforcement bar.
- Removing the headlights.
- Disconnecting and removing the hood latch.
- Disconnecting and removing the radiator, A/C condenser, and cooling fan assembly. This requires safely discharging and recovering the A/C refrigerant.
- Unbolting the radiator support from the vehicle's frame rails.
- Transferring any necessary components to the new support.
- Installation is the reverse of removal, followed by refilling the coolant, recharging the A/C system, and performing a front-end alignment.
Due to the complexity and the need for specialized equipment like an A/C machine, this job is best left to professional body shops or experienced technicians.
Cost Comparison
The cost of a radiator support can vary significantly based on the source. Labor is a major expense due to the complexity of the installation.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $200 - $400 |
| New Aftermarket | $110 - $300 |
| Used OEM | $100 - $250 |
| Shop Labor | $1000 - $1500+ |

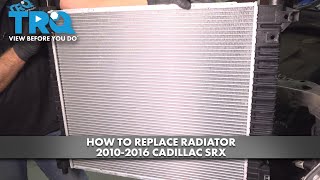

Note: Labor costs are an estimate and can vary based on location and shop rates. The estimate is higher than a standard radiator replacement 🎬 Watch: How to remove and replace the radiator itself due to the additional steps of removing and aligning the core support structure.
Technical Specifications & Part Numbers
The radiator support for the SRX consists of several pieces, often referred to as an upper tie bar and a lower tie bar. These are sometimes sold separately or as an assembly.
- Material: Steel and plastic composite
- Common OEM Part Numbers: 15869745, 20792551, 20824213, 20857915, 20909169, 20939482
- Interchange Information: Part number 20939482 is a common replacement for 20792551. Always verify fitment with the seller for your specific vehicle.
Frequently Asked Questions
Can a damaged radiator support be repaired?
In most cases, repairing a damaged radiator support is not recommended. If the plastic is cracked or the metal is bent, its structural integrity is compromised. A professional body shop may be able to straighten minor bends in metal-only supports, but replacement is almost always the safer and more reliable option to ensure proper panel alignment and crash safety.
Is there a recall on the 2010-2016 Cadillac SRX radiator support?
No, there are no specific recalls or technical service bulletins (TSBs) from GM related to the radiator support on the 2010-2016 SRX. There was a significant safety recall for the rear suspension toe links on these vehicles (NHTSA Campaign ID: 21V473), but it is unrelated to the front radiator support.
What is the difference between the upper and lower radiator support?
The radiator support is often an assembly of multiple parts. The 'upper support' or 'upper tie bar' is the top cross-member that often holds the top of the radiator and the hood latch. The 'lower support' or 'lower tie bar' is the bottom cross-member that the radiator and condenser rest on. Both are critical for the structure's rigidity. On the SRX, these are often sold as separate pieces but must work together.
Will a bad radiator support cause a check engine light?
A bad radiator support itself will not directly cause a check engine light. However, if the damage causes the radiator, cooling fans, or related sensors to be damaged or disconnected, it could trigger fault codes related to the cooling system, such as for an overheating condition or a faulty fan circuit.

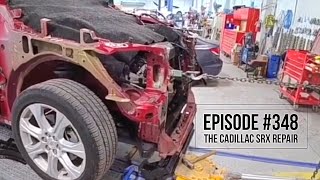

Helpful Videos
Technical Specifications
OEM Part Numbers: 15869745 20792551 20824213 20857915 20909169 20939482
Material: Steel and Plastic Composite
